Home | Products | Environmental | Complete Weather Stations | Weather Stations

Weather Stations – Fully Assembled and Mounted Weather Stations

Weather Sensors Transmitters mounted on L or T Bar mounting arms

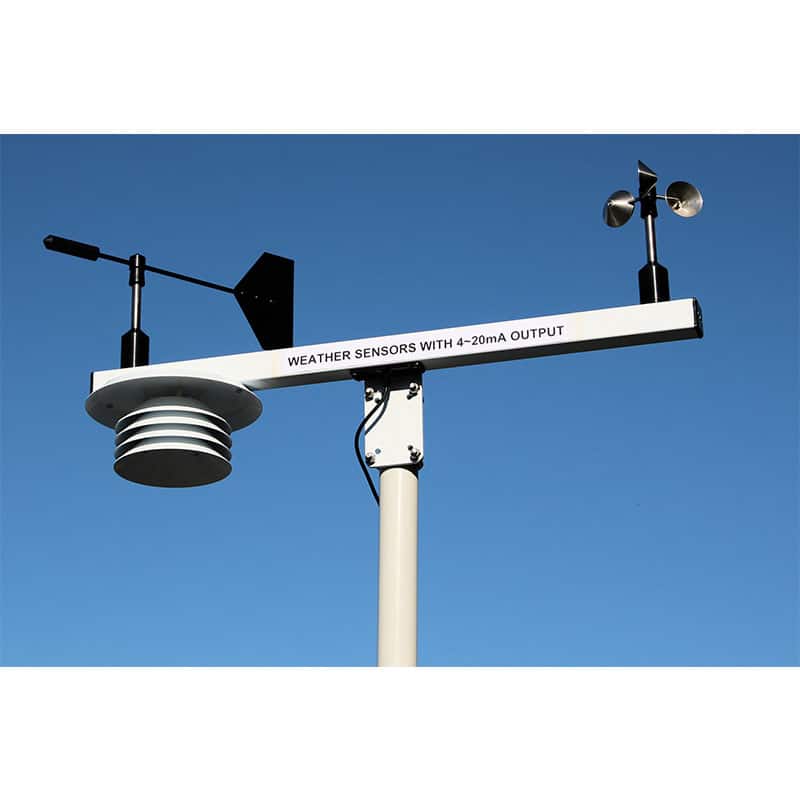

Intech Weather Station WS3-WD-THP-TB-CL (Wind Speed, Wind Direction, Temperature, Humidity and Barometric Pressure sensors housed in a Solar Radiation Shield mounted on T-bar)

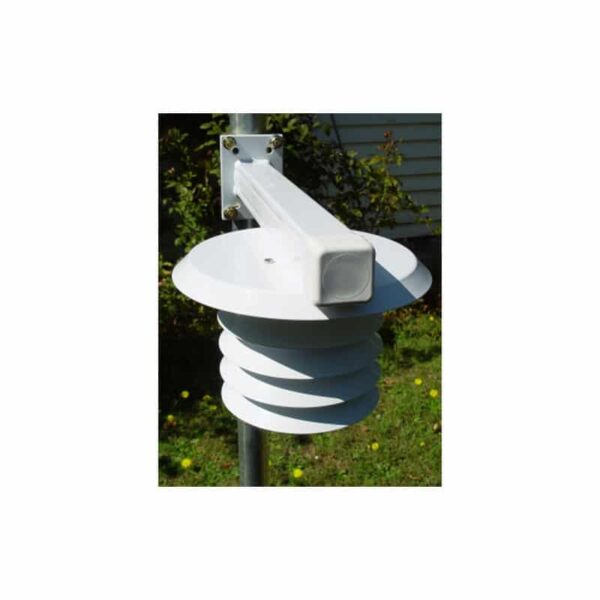

Intech Weather Station THP-LB-CL (Temperature, Humidity and Barometric Pressure sensors, all housed in Solar Radiation Shield, mounted on L Bar)

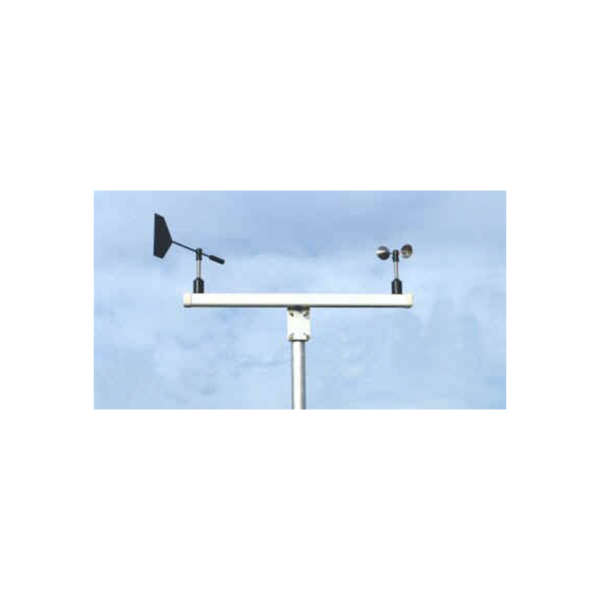

Weather Station WS3-WD-TB-CL

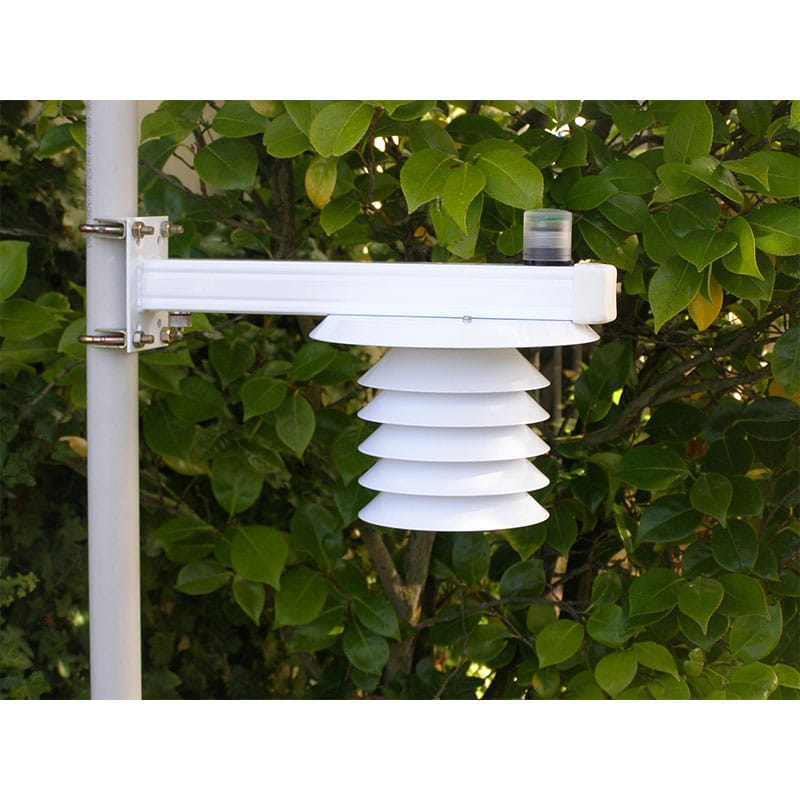

Intech Weather Station THP-LE-LB-CL (Temperature, Humidity and Barometric Pressure sensors, all housed in Solar Radiation Shield, with Light Energy Sensor, mounted on L Bar)

Weather Sensor Transmitters are tools for the observation and recording of meteorological data.

These can be assembled with various features depending on your requirements.

Brand: INTECH
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Documents

Intech Instruments Ltd has a range of Weather Sensor Transmitters available which use the industry standard 4~20mA output signal (loop powered). This allows for easy integration into a SCADA or PLC monitoring system.

The sensors can monitor:

  • air temperature
  • humidity
  • barometric pressure
  • light energy
  • wind speed
  • wind direction

These can be assembled on T or L bar Equipment Arms

Please select the options above to view more information.

  • Weather Sensor Transmitters - Brochure 750.59 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
WS3-WD-TB-CL

Wind speed 3 cup and Wind Direction, mounted on T-Bar mounting arm complete with 5m cable.

$2,040.00
WS3-WD-THP-TB-CL

Wind speed 3 cup and Wind Direction with Temperature, Humidity and Barometric Pressure sensors, all housed in a Solar Radiation Shield, mounted on T-Bar mounting arm complete with 5m cable.

$3,410.00
THP-LB-CL

Temperature, Humidity and Barometric Pressure sensors, all housed in a Solar Radiation Shield, mounted on L-Bar mounting arm complete with 5m cable.

$1,500.00
-LE-CL

Optional Light Energy Sensor

$555.00
-WS6

Fit WS6 (Wind speed 6 cup), instead of WS3 on above T-Bar options (for lower starting speed = 0.45m/sec, 20mA = 80m/sec)

$345.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
