Intech Humidity Sensor for Weather Stations H-CL
Transparent Radiation Shield

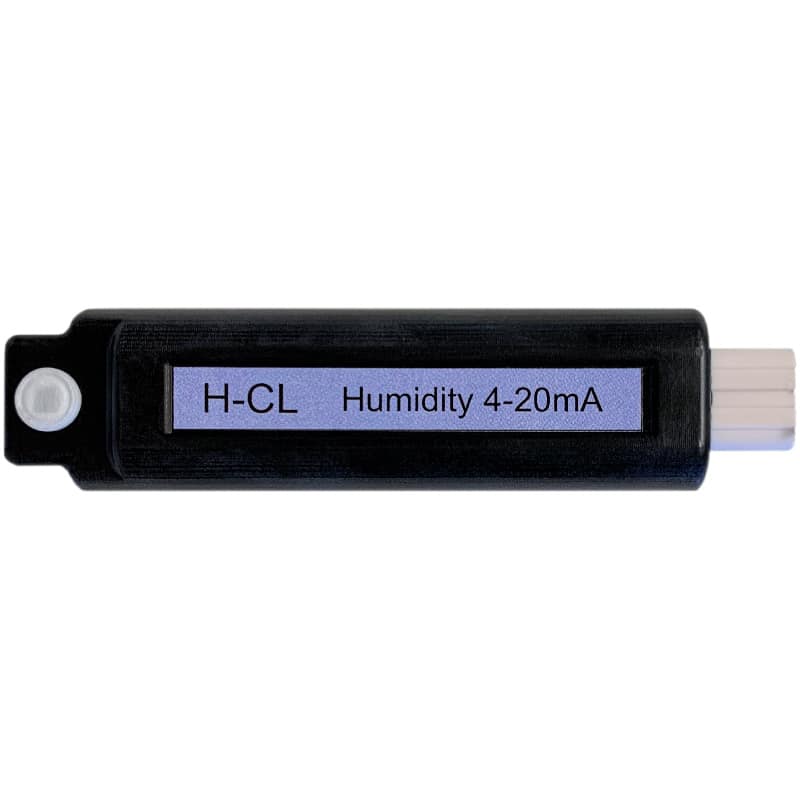

H-CL – Humidity Sensor

Brand:

$315.00 Excl. GST

Humidity Sensor complete with 1.5m Cable (0~100%)

Total: $315.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The H-CL is a complete relative humidity current loop sensing module, with one Humidity (0~100% RH) loop powered 4~20mA output.

Two versions are available:

• Display (H-CL-D)
• Non Display (H-CL).

Both versions come completely encapsulated in a “Macromelt” molding to create a IP67 weather proof unit. The connector used is also rated to IP67.

This unit can be added to one of our Fully Mounted Weather Stations or our Small and Medium Weather Systems inside a shield.

H-CL Features

  • Single 4~20mA Outputs
  • Factory Calibrated digital Humidity sensor
  • Very Compact Design
  • High Accuracy
  • Easy to Install
  • Reverse Polarity Protection
  • Wide Power Supply Range
  • IP67 weather proof

Technical Specs

TYPEH-CL
Output2 wire 4~20mA (Loop Powered).
Power Supply9~33Vdc.
Supply Voltage Sensitivity<±0.01%/V FSO.
Maximum Output CurrentLimited to <32mA.
Max output Load Resistance800Ω @ 24Vdc. (50Ω/V Above 8Vdc).
Operating Temperature-30~70ºC
Storage Temperature-30~85ºC
Operating Humidity100%RH.

Note. Good airflow and good air mixing must be maintained over the sensor to minimise local temperature fluctuations, and to ensure accurate measurements.
