Air Temperature sensor 4~20mA Intech T-CL
Transparent Radiation Shield
Click to enlarge

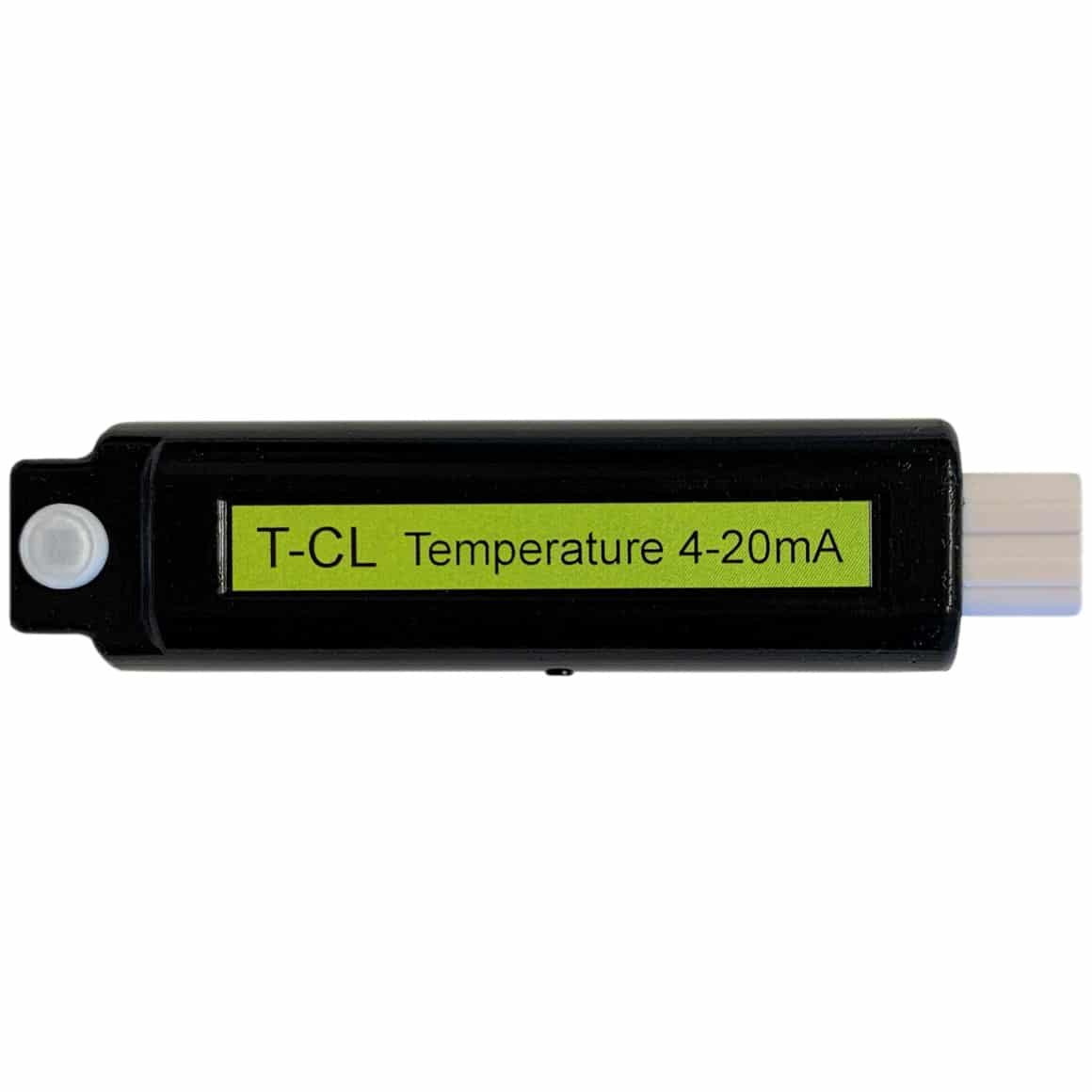

Air Temperature sensor 4~20mA Intech T-CL
Transparent Radiation Shield

T-CL – Temperature sensor

Brand:

$274.00 Excl. GST

Temperature Sensor 4~20mA complete with 1.5m cable (-30~70°C)

Total: $274.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The T-CL is a complete temperature current loop sensing module, with one temperature (-30~70°C) loop powered 4~20mA output.

One version is available:

• Non Display (T-CL)

The unit comes completely encapsulated in a “Macromelt” molding to create a IP67 weather proof unit. The connector used is also rated to IP67.

This unit can be added to one of our Fully Mounted Weather Stations or our Small and Medium Weather Systems inside a shield.

T-CL Features

  • Single 4~20mA Outputs
  • ±0.2oC pre-calibrated thermistor sensor
  • Very Compact Design
  • High Accuracy
  • Easy to Install
  • Reverse Polarity Protection
  • Wide Power Supply Range
  • IP67 weather proof

Technical Specs

TYPET-CL
Output.2 wire 4~20mA (Loop Powered).
Power Supply.9~33Vdc.
Supply Voltage Sensitivity.<±0.01%/V FSO.
Maximum Output Current.Limited to <32mA.
Max output Load Resistance.800Ω @ 24Vdc. (50Ω/V Above 8Vdc).
Operating Temperature.-30~70°C
Storage Temperature.-30~85°C.
Operating Humidity.100%RH.

Note. Good airflow and good air mixing must be maintained over the sensor to minimise local temperature fluctuations, and to ensure accurate measurements.
