BP-CL – Barometric Pressure Transmitters
$315.00 Excl. GST
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Product Details
Description

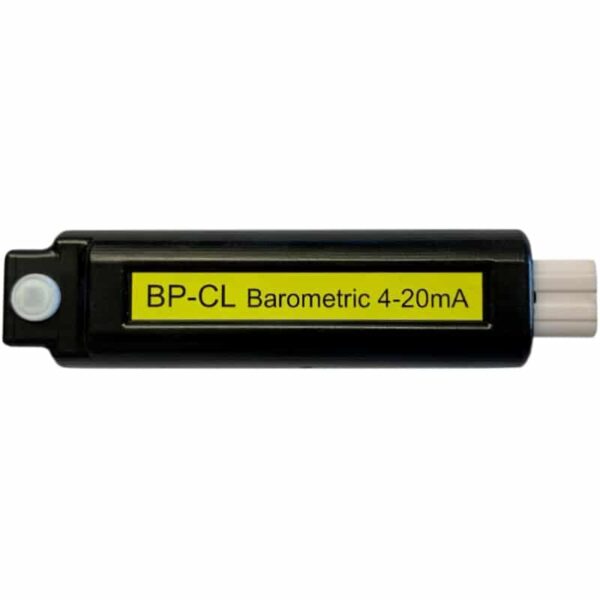

The BP-CL is a complete Barometric pressure current loop sensing module, with one Barometric pressure (700~1100 hPa) loop powered 4~20mA output.
Come completely encapsulated in a “Macromelt” moulding to create a IP67 weather proof unit. The connector used is also rated to IP67.

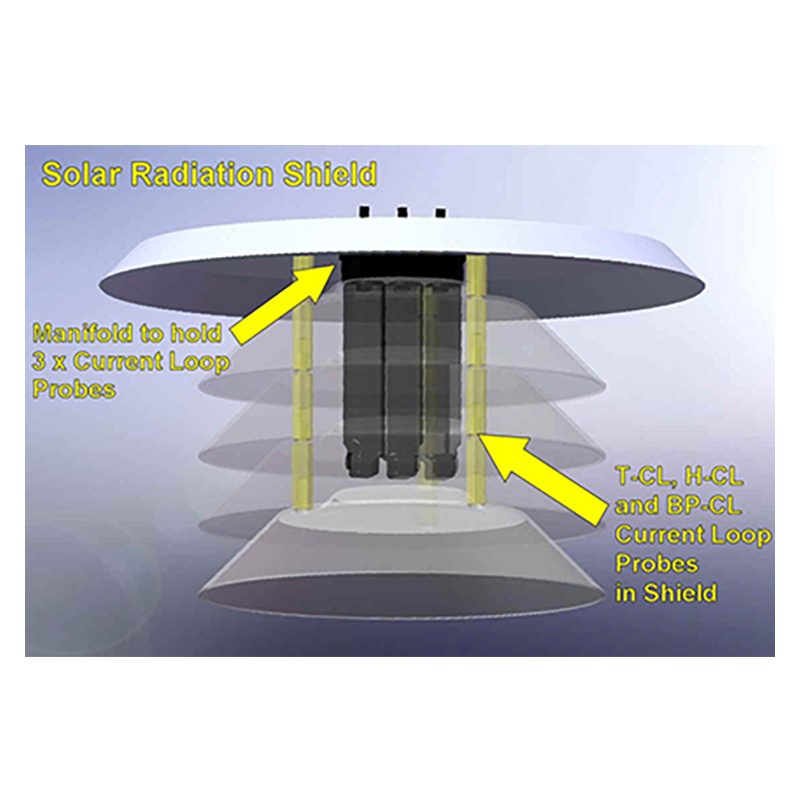

This unit can be added to one of our Fully Mounted Weather Stations inside a shield.
BP-CL Features
- Single 4~20mA Loop Powered Output
- Factory Calibrated digital Barometric sensor
- 700~1100 hPa
- Very Compact Design
- High Accuracy
- Easy to Install
- Reverse Polarity Protection
- Wide Power Supply Range
- IP67 weather proof
Technical Specs
| BP-CL Specifications | |
| Accurate to | ±1hPa Typical absolute (700-1100 hPa and 0 to 60°C) ±0.2hPa Typical relative @ 25°C |
| Output | 700~1100 hPa for 4~20mA (2 wire Loop Powered) |
| Power Supply | 9~33Vdc |
| Supply Voltage Sensitivity | <±0.01%/V FSO |
| Maximum Output Current | Limited to <32mA |
| Max output Load Resistance | 800Ω @ 24Vdc. (50Ω/V Above 8Vdc) |
| Operating Temperature | -30~70°C |
| Storage Temperature | -30~85°C |
| Operating Humidity | 100%RH |
| Operating height | below 2000 meters |
| Important: The sensor is protected by a IP67 filter to allow use in wet environments. | Important: The sensor is protected by a IP67 filter to allow use in wet environments. |
Note: Filter must be uncovered and clean to ensure accurate measurements.
