The WS-CL Anemometer is a highly responsive three or six cup anemometer that produces an output pulse with a frequency proportional to the wind speed. This pulse is then processed and converted for suitable communications. The Anemometer is made from stainless steel and anodized aluminium. Stainless steel shafts, bearings, and fittings are used throughout.
The three or six cups on the head have been hand balanced to provide precision balancing of the cup assembly on the shaft. This instrument has been thoroughly tested before leaving the factory and is ready to be installed.
The Anemometer can be supplied with a Pulse (switch closure) or 4 to 20mA Output.

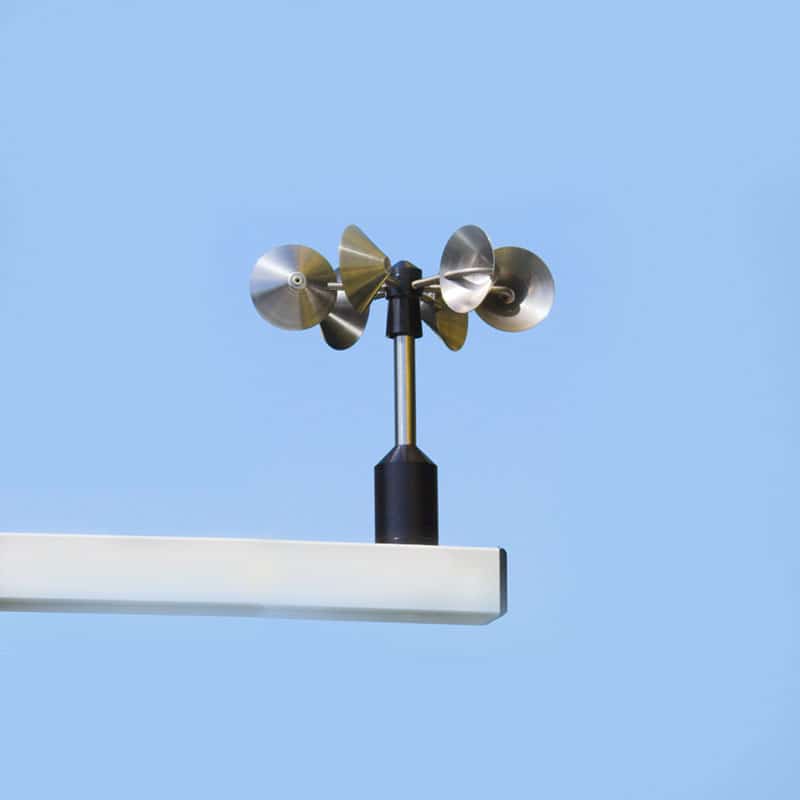

The 3 Cup Anemometer WS3-CL is normally supplied but if low speed accuracy is required we also manufacture a 6 Cup version WS6-CL.

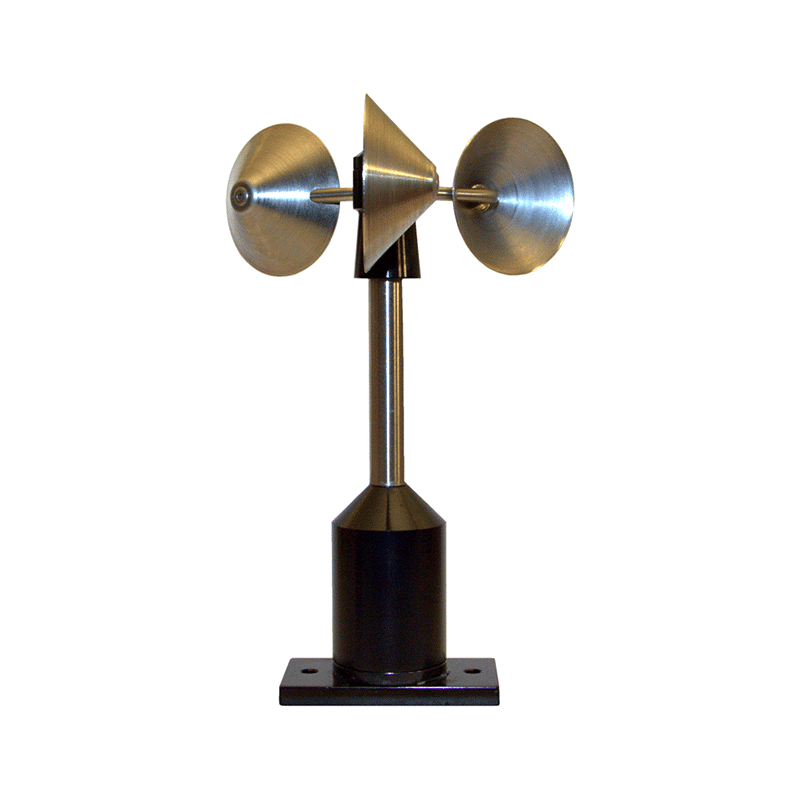

It can be supplied free standing on a Base Mounting Plate (as picture above), or attached to a L Bar or T Bar Equipment Mounting Arm.
This unit can also be added to one of our Fully Mounted Weather Stations or our Small and Medium Weather Systems.
