Home | Products | Data Acquisition | Cloud Based Monitoring | Eze System

Eze System – Cloud Based Monitoring System

Connect anything to the internet and access it from anywhere, anytime.

Eze World Wide

Overview

  • Anywhere Access
  • Automatic Reports
  • Alerts and Alarms
  • Simple Dashboard
  • Control and Automate
  • Data visualization
Brand: EZE
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Software
  • Documents

Features:

  • Four onboard inputs per ezeio controller.
  • Input types: 0~10Vdc, 0~5Vdc, 4~20mA, Resistive or Pulse.
  • Expansion options for up to 40 inputs per ezeio controller.
  • Input expanison, supports Intech Micro Remote Stations that have Modbus RTU protocol support:
    • 2400-A16
    • 2300 Series
    • 2100-A16
  • Output expansion, up to two 16x relay 2400-R2 units (connected to a 2400-A16). Or use the 4x relay 2300-RO4.
  • Alarms:
    • Text messages (SMS).
    • E-mail.
    • Voice messages.
    • Local alarm relay output.
  • No loss of data during Internet outages (8,000 scan onboard storage of data, with automatic upload once connection restored).

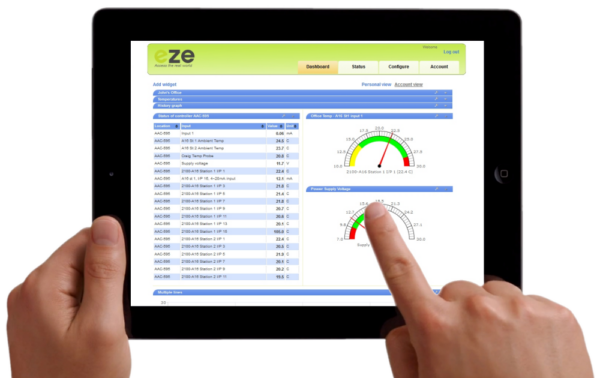

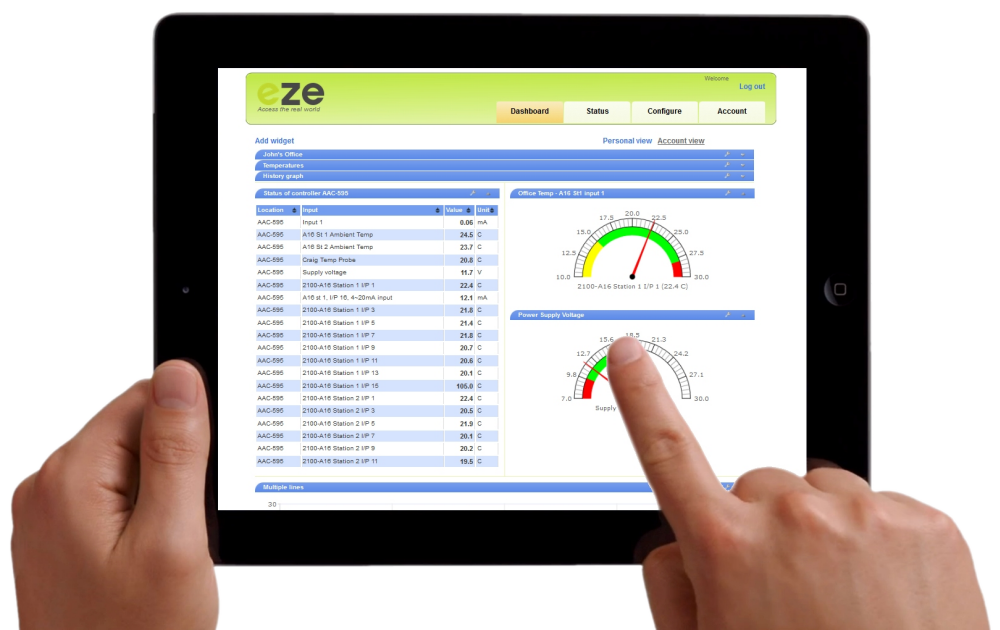

  • Secure Web interface via https://ezecontrol.com

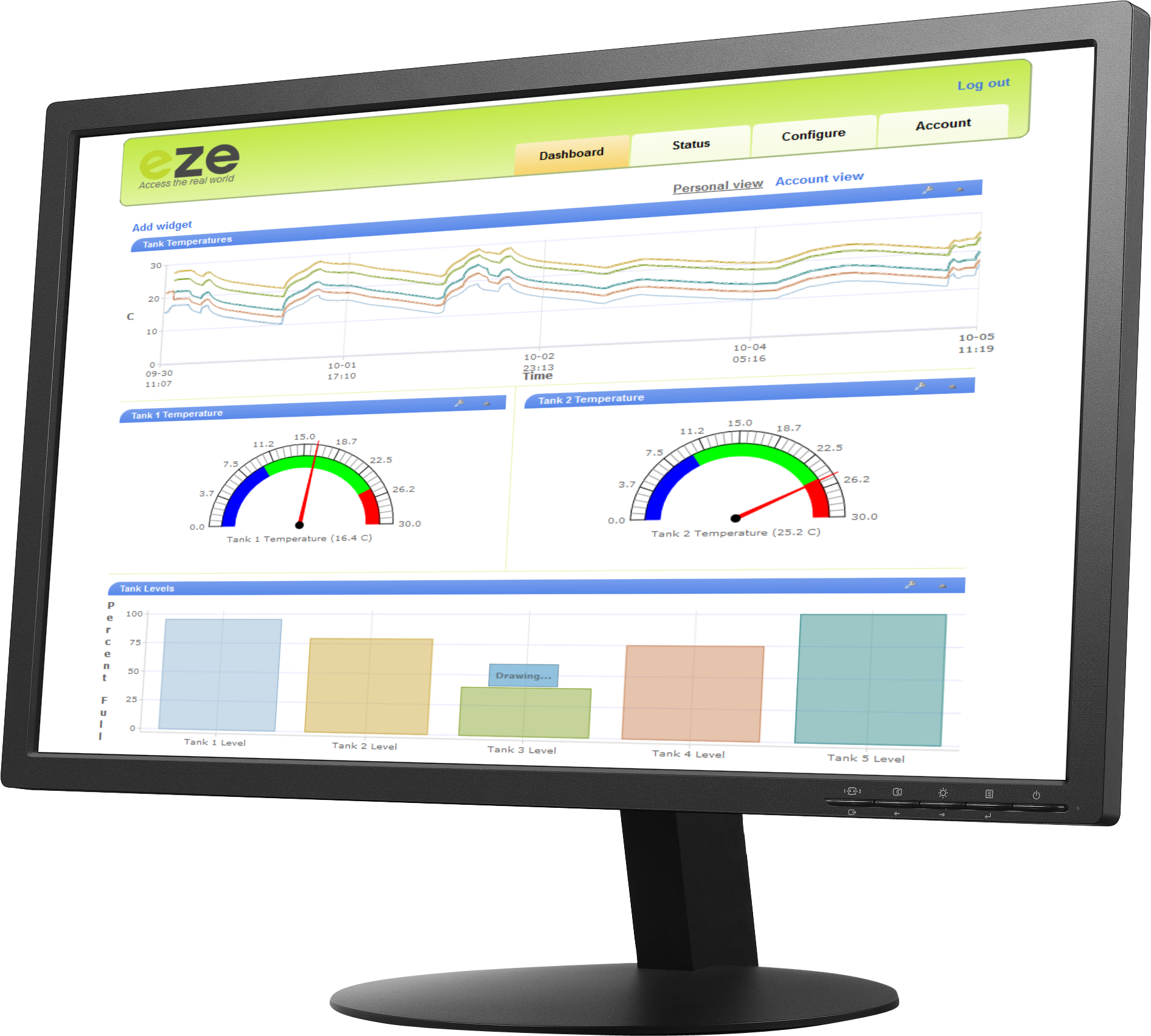

    • View SCADA screens anywhere.
    • Set alarms.
    • Multi user.
    • Download data sets.
    • Visual gauges.
    • Password protection.
    • Access from any location worldwide.
    • All configuration via the web.
  • 3G/GSM mobile network connectivity option when Ethernet LAN is not available.
  • GPS position option.
  • Plug Pack AC Power Supply included.
  • Easy to Install.
  • Low Cost.

Description:

The eze System is suitable for a wide range of measuring, logging and alarm applications – from temperature, level, flow, analytical pH etc, energy, run & fault conditions, door switches and security and so on.
The system is designed to be easy to install and deploy in anything from single sites to hundreds spread out over a wide area and across the globe.

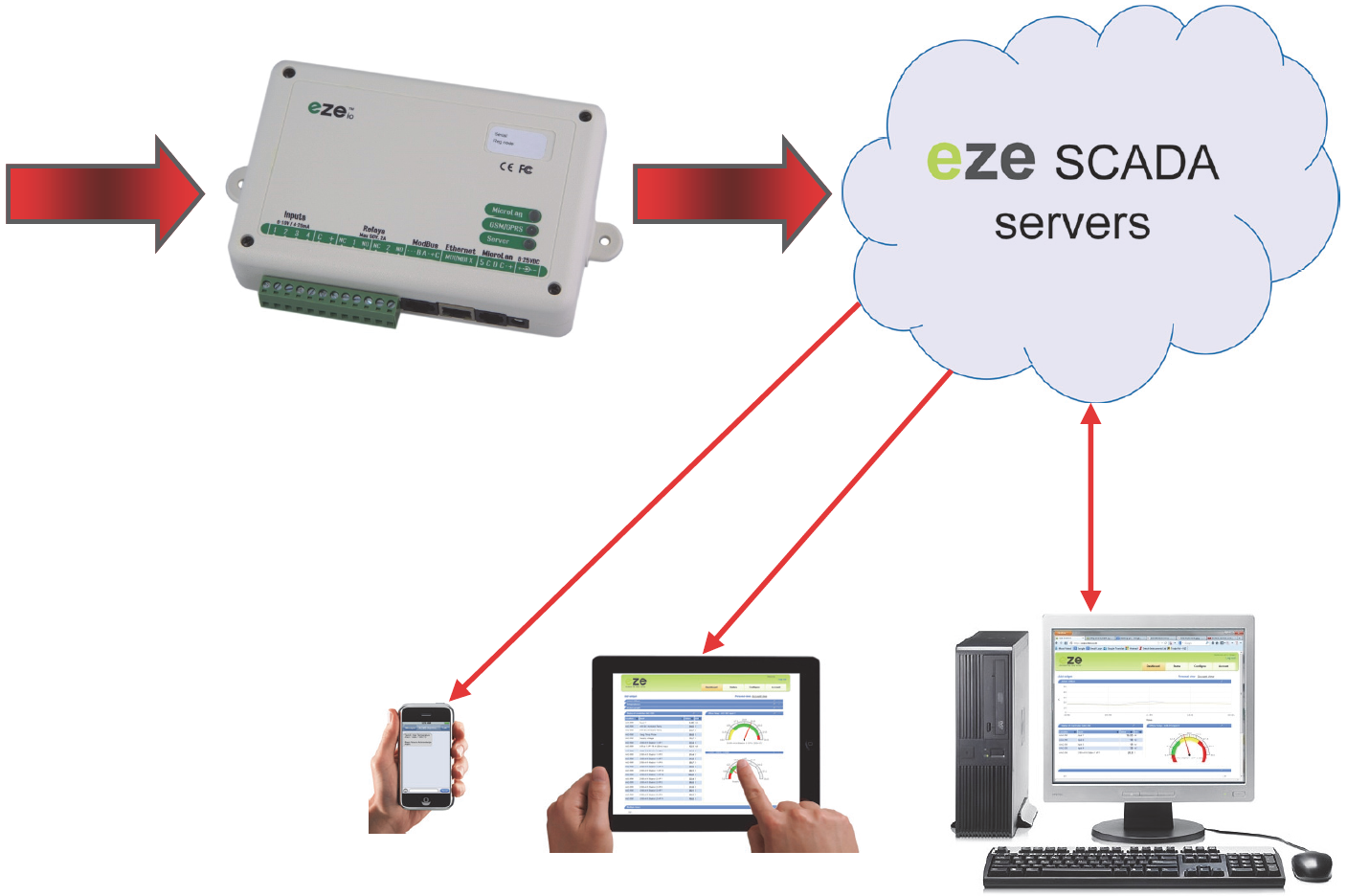

The ezeio controller communicates with sensors and meters locally, and securely with the cloud service https://ezecontrol.com via the Internet.
The ezeio controller is designed to be easy to set up. There is no software to install, and in most cases it works right out of the box after being plugged in with no setup what so ever. The controller (and a connected sensor) is the only component you need for a working system.

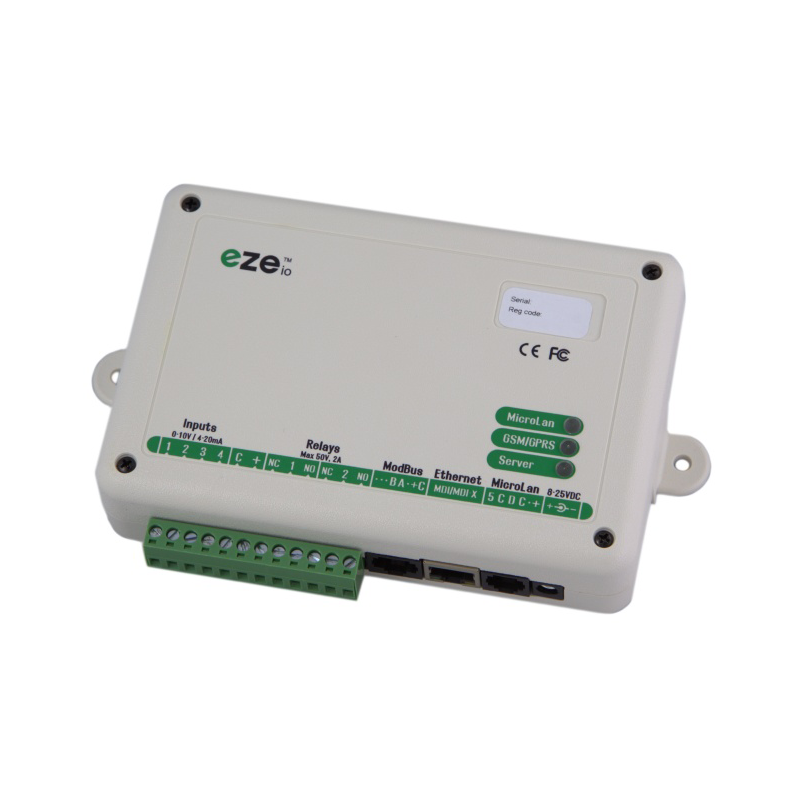

There are two models of the controller, having different connectivity options. Both models have Ethernet LAN connectivity, 2400-A16 support, Modbus, four analogue inputs and two relays. The ezeio-GSM model also has 3G/GSM cellular connectivity available.
Both models use the same web configuration system and can be expanded up to 40 inputs and 40 outputs, using the 2400-A16 input multiplexers and the 2400-R2 relay output expanders.

On board memory allows the ezeio to be used in critical logging situations. Each ezeio controller has a 4MB on-board flash memory that acts like a circular buffer for data samples. The memory is organized as 8000 samples for all of the inputs (Max 40). So if you log at 5 minute interval on all 40 inputs, you’ll have 8000×5=40000 minutes buffer in case of any communication blackouts. That’s almost 28 days. The delayed data will automatically be uploaded as soon as the communication is restored.

Applications:

  • Industry
  • Energy
  • Laboratories
  • Blood Banks
  • Hospitals
  • Agriculture
  • Food Storage
  • Food Processing
  • Water & Waste Water
  • Multiple Locations
  • Mobile Monitoring

ezeio Controller Compatibility with Intech Micro Remote Stations:

The Modbus-RTU RS-485 port on the ezeio controller can be used to connect to Intech Micro Remote Stations that have Modbus RTU protocol support: 2400-A16, the 2300 Series and 2100-A16.
This allows the controller to be easily expanded to log up to 40 channels Max per ezeio controller.
If additional relay outputs are required, up to two 16x relay 2400-R2 units can be connected to a 2400-A16 for relay expansion – refer to the 2400-A16 Installation Guide for more information. Alternatively the 4x relay 2300-RO4 can also be used for relay expansion.

Service Options:

BasicStandardPremium
Small systemsMultiple metersSupport everything
5 logged inputs15 logged inputsUp to 40 logged inputs
60s minimum log interval30s minimum log interval10s minimum log interval
6 months history13 months history37 months history
10 SMS/Voice alerts50 SMS/Voice alerts100 SMS/Voice alerts
Unlimited email alertsUnlimited email alertsUnlimited email alerts
Unlimited reportsUnlimited reportsUnlimited reports

Please see prices below in Product Range Table.



TYPE EZE
ezeioTM
Size153 x 100 x 38 mm (6.0” x 3.9” x 1.5”) mounting ears extend 15mm (0.6”) on each side. Hole centers are 166mm (6.5”) apart. Allow at least 40mm (1.6”) margin for connectors
WeightApprox 220g (0.5lb)
Power8-25VDC, <2W average, 7W peak
Operating environment0-50°C (32-120°F)
Hardwire inputs4 inputs on screw terminal:
0-10V, 10mV resolution, >70kΩ impedance
0-30mA, 32uA resolution, 100Ω current sense resistor
Hardwire outputs2 relay outputs with screw connections:
Form C (1 pole switching)
Max 2A, 50V load
Other connectionsEthernet, TP 10/100, RJ45
MicroLAN, RJ12
Serial RS485, RJ45-jack
GSM antenna SMA (optional)
ExpandabilityUp to 40 sensor inputs total
Up to 40 outputs total
MicroLanMax 20 MicroLAN devices supported
Active pullup on data wire
5V and raw DC provided
RJ12 jack compliant to Dallas connector standard
Max 50m (150ft) network length
DC outputUnregulated output, max 200mA (“+” terminals)
Regulated 5V output, max 100mA (“5” terminal).
SerialRS485/Modbus RTU, bidirectional 19200bps
GSM (optional)GSM/GPRS/EDGE 850/900/1800/1900MHz
US 3G: 850/1900MHz
EU/AU 3G: 900/2100MHz
GPS 16ch, active antenna
Configuration and programming
LoggingIndividual logging on each input. 10s to 1h interval.
Automatically communicated and stored on redundant
servers. 8000 samples/channel local buffer.
Input triggersUp to four alarms per input, each with alarm/restore thresholds and separate holdoff times.
Each alarm and restore can trip up to four separate actions, such as sending messages, controlling outputs or counters.
SchedulesUp to 20 schedules, each with four intervals and flags for each day in the week. Up to four actions for each schedule on entry/exit of an interval.
TimersUp to 20 timers, each can be set to repeat hourly, daily, weekly or monthly. Each timer can trip up to four actions.
Scripts (optional)Up to 64kB compiled script code, with 6kB of RAM.
Extensive function library with support for floating point math, string manipulation and communication functions.
Server Communication
ConfigurationAutomatic, DHCP
Host protocolIP/UDP, proprietary encrypted payload
PortOutbound port UDP 8844
Inbound port UDP 28672-32767 (random per session)
Encryption128 bits, unique key per ezeio
TrafficTypical 5-15MB / month (depends on usage)
Local buffer8000 samples per channel, non-volatile

View eze System Technical Support Information.

Download Station Programmer Configuration Software – for configuration of 2400-A16 and 2100-A16.

  • Intech Eze Controller Brochure 535.17 KB
  • Intech Eze System Supplementary Manual 1.84 MB
  • Intech Eze System - User Manual 2.33 MB
  • Intech Eze System - Presentation 3.41 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity

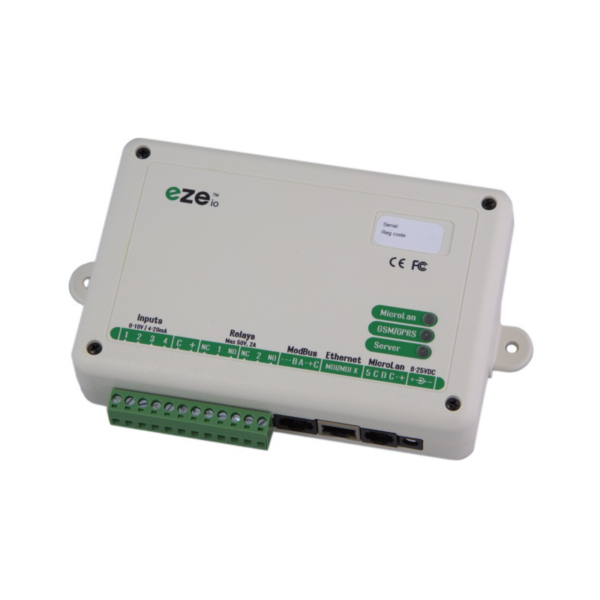

Ezeio STD

Ezeio Controller Standard c/w Ethernet

$1,155.00

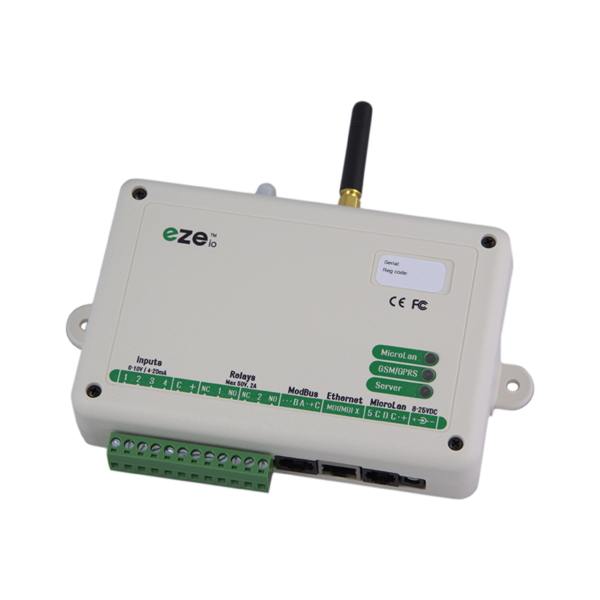

Ezeio GSM-S

Ezeio Controller GSM/3G (850MHz) +RF – Spark

$1,695.00
Ezeio GSM-V

Ezeio Controller GSM/3G (900MHz) +RF – Vodafone

$1,695.00
5-6m

5 Logged Inputs. Service length: 6 months

$48.00
5-1y

5 Logged Inputs. Service length: 1 Year

$87.00
5-3y

5 Logged Inputs. Service length: 3 Years

$226.00
5-LT

5 Logged Inputs. Service length: Lifetime

$452.00
15-6m

15 Logged Inputs. Service length: 6 months

$96.00
15-1y

15 Logged Inputs. Service length: 1 Year

$172.00
15-3y

15 Logged Inputs. Service length: 3 Years

$470.00
15-LT

15 Logged Inputs. Service length: Lifetime

$940.00
40-6m

40 Logged Inputs. Service length: 6 months

$178.00
40-1y

40 Logged Inputs. Service length: 1 Year

$288.00
40-3y

40 Logged Inputs. Service length: 3 Years

$776.00
40-LT

40 Logged Inputs. Service length: Lifetime

$1,552.00
Eze Cable-485

Eze Cable RS485 (1m), if using ezeio with an Intech Remote Station.

$15.00
Eze Fee

EZE Setup Fee for 8 Inputs or less

$180.00
Eze Fee +

EZE Setup Fee for more than 8 Inputs

$280.00
Support

Pre-commission and Remote/Onsite Commissioning/Support (per hour). (Plus travel and accommodation where applicable)

$138.00

Note: Intech Instruments Ltd are the New Zealand representative for eze System, Inc products. Please contact the eze System representative in your country if you require sales or service support for eze System, Inc products.

All prices are in NZ$, and GST exclusive and are subject to change without notice.



Product Bottom

Not sure what you need? Ask us anything!

  • (03) 343-0646Christchurch
  • (09) 827-1930Auckland
  • sales@intech.co.nz

Primary Sidebar

Footer

Who we are

  • Products
  • Support
  • About
  • Contact us

Intech Christchurch

59 Mandeville Street
Riccarton, Christchurch 8011

Phone: (03) 343 0646

Email: sales@intech.co.nz

Intech Auckland

70 Central Park Drive
Henderson, Auckland 0610

Phone: (09) 827 1930

Email: aucksales@intech.co.nz

Newsletter

Subscribe to our newsletter and get new information every month.

Copyright © 2019–2021 Intech Instruments Ltd. All rights reserved.
