2300-RO4 – 4 Channel Relay Outputs - I/O Remote Station

Product Details

Description

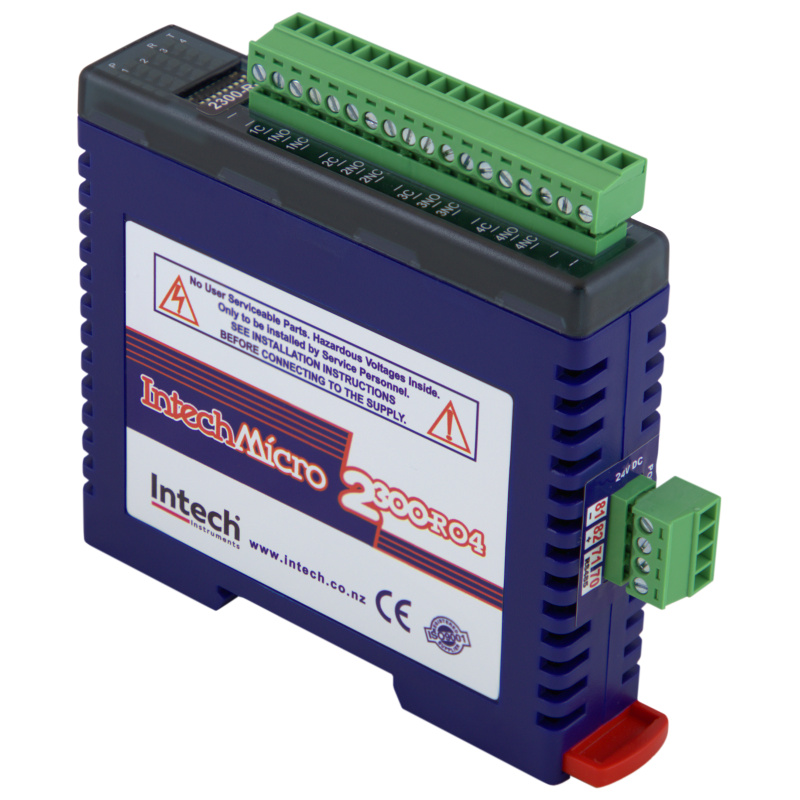

The 2300-RO4 remote station has 4 change over relay outputs. These stations may be used when a higher drive capability is required, or when isolation between outputs are required.

2300 Series

The Intech Micro 2300 Series is a system of modular I/O Remote Stations, that add an even lower cost option to Intech’s already extensive intelligent I/O Remote Station family, which connect automatically to the Intech MicroScan V5 logging plus SCADA software package.

The 2300 Series I/O stations are made up of stand-alone Digital and Analogue—Input/Output stations. Communications between the computer running MicroScan V5 and the 2300 Series stations is RS485 (1 pair cable) multi drop as standard with an option for Ethernet TCP/IP.

A 32bit ARM CPU is used in the 2300 Series stations to provide high speed data processing and fast communications turn around times.

All 2300 Series stations have been equipped with status led’s which are used to indicate the status of the Inputs or Outputs. This visual indication assists with fault finding and diagnostics.

All the I/O stations clip directly onto an industry standard DIN rail. All stations have a minimum isolation of 1000Vac rms between the field and logic.

2300-RO4 Features:

• 4 Isolated Relay Outputs.
• Modbus RTU RS485.
• Easy Programming Via MicroScan Maps.
• Plug-in Connectors Makes Replacement Easy.
• Station ID Number set via Dip switches.
• Programmable Relay States – NO or NC.
• Comms Failure Time-out Using Relay 12.
• Comms TXE and TX Delay Programming.
• Programming Information Retained on Power Down.
• 24Vdc Power Supply.
•  Easy to Install.
• Compact DIN Rail Mount Enclosure. Low Cost I/O Remote Stations.

Examples of connectivity – RS485 data Hi-Way:

RS485 Connection Examples for 2300 Series

Important: The 2300-XX stations cannot share a data hi-way with the 2400-XX / 2100-XX stations and/or Shimaden Controllers.
