Nivopress N – Hydrostatic Level Transmitters for Clean Water and Sewage

Product Details

Description

The NIVOPRESS N hydrostatic borehole level transmitters are designed to measure the level of clean or contaminated liquids. The pressure sensor at the bottom of the probe measures the hydrostatic pressure (Phydr) of the liquid column above it and compares with the atmospheric pressure (Patm). The atmospheric pressure is led to the sensor through a breathing capillary which is equipped with a moisture filter that prevents the moisture reaching the electronics and decreasing the accuracy of the measurement. This enables the atmospheric pressure to be subtracted from the measured pressure to get the hydrostatic pressure which is proportional to the height of the liquid column (h).

The electronics converts the sensor’s signal into an output signal. If temperature measurement (of the liquid) is needed beside the level measurement a combined (level + temperature) transmitter should be used.

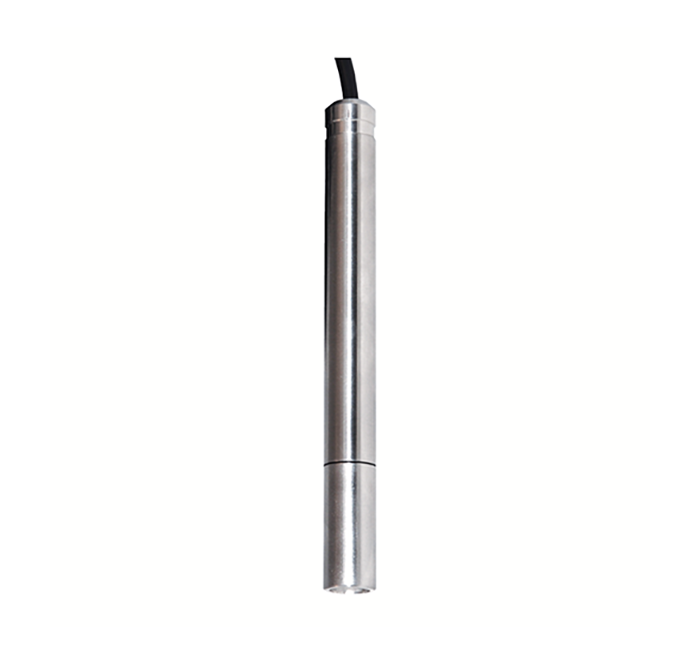

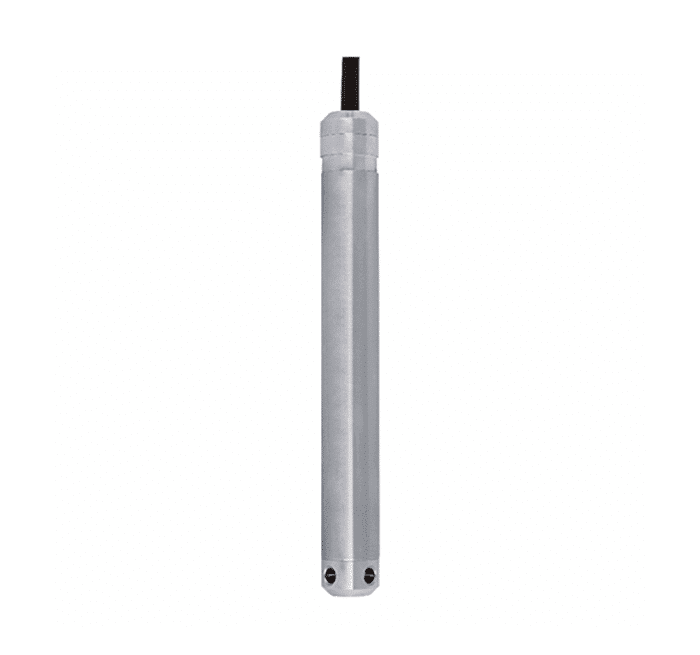

The installation and wiring of the transmitter is helped by the wide variety of accessories. A sewage adapter working on the principle of the diving bell can be snapped (NP) or can be screwed (NZ) into the place of the protecting cap to avoid the direct contact between the sensor and the measured contaminated liquid. An extra mechanical protection is built in the NZ type sewage adapters in the form of a mechanical filter. The N-500 types can be used in hazardous environments.

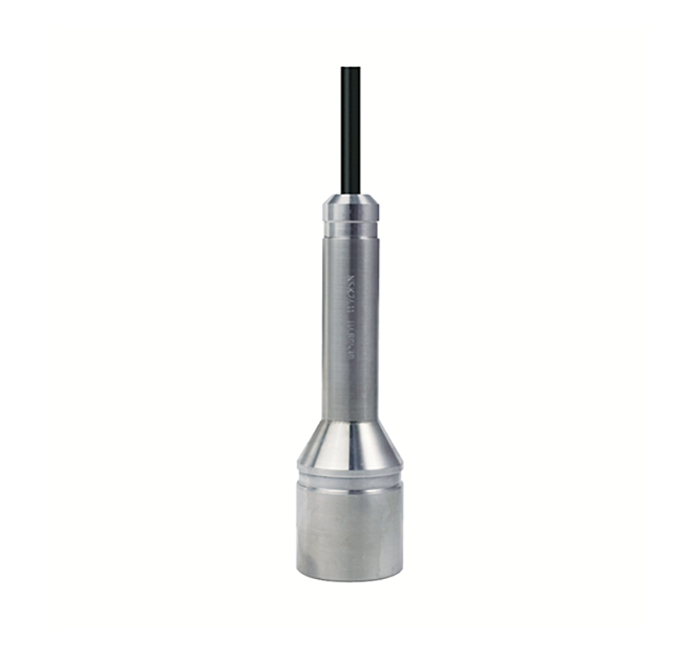

The NZ screw-in type transmitters are recommended for applications where there is a risk of flooding.

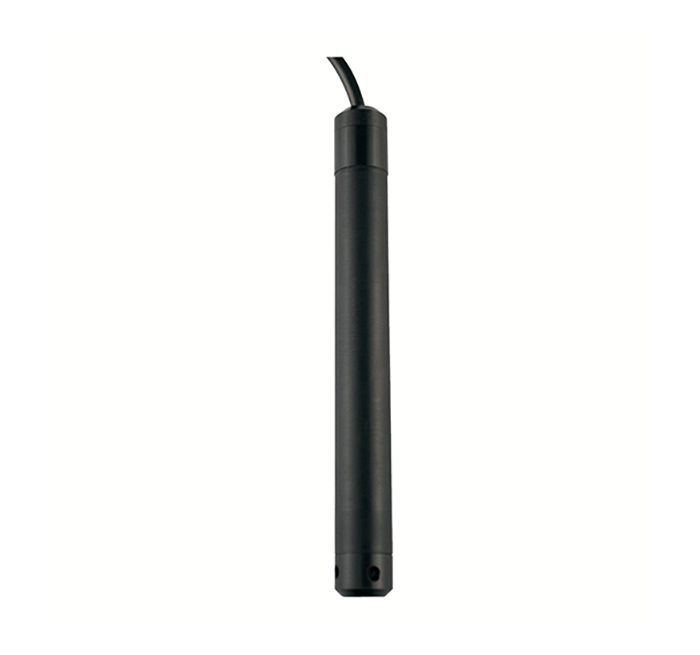

The NB/NG plastic housing types are designed for those applications where the aggressive medium (e.g. saline solutions or seawater) could cause galvanic corrosion of the stainless steel body.

NFK transmitters are suitable for diesel applications.

Applications

• Level measurement in wells
• Boreholes
• Wastewater plant
• Vessels
• Standing or running water

Nivopress N Main Features:

• 2- or 3-wire submersible transmitter
• Capacitive ceramic, piezoresistive stainless steel and piezoresistive ceramic sensor
• Plastic or stainless steel body
• Venting tube in cable
• Reverse polarity protection
• Optional lightning protection
• Linearity: ±0.25%
• Built-in Pt100 temperature sensor
• Explosion-proof models
