Home | Products | Level | Level Transmitters | Hydrostatic (Submersible) | 404391

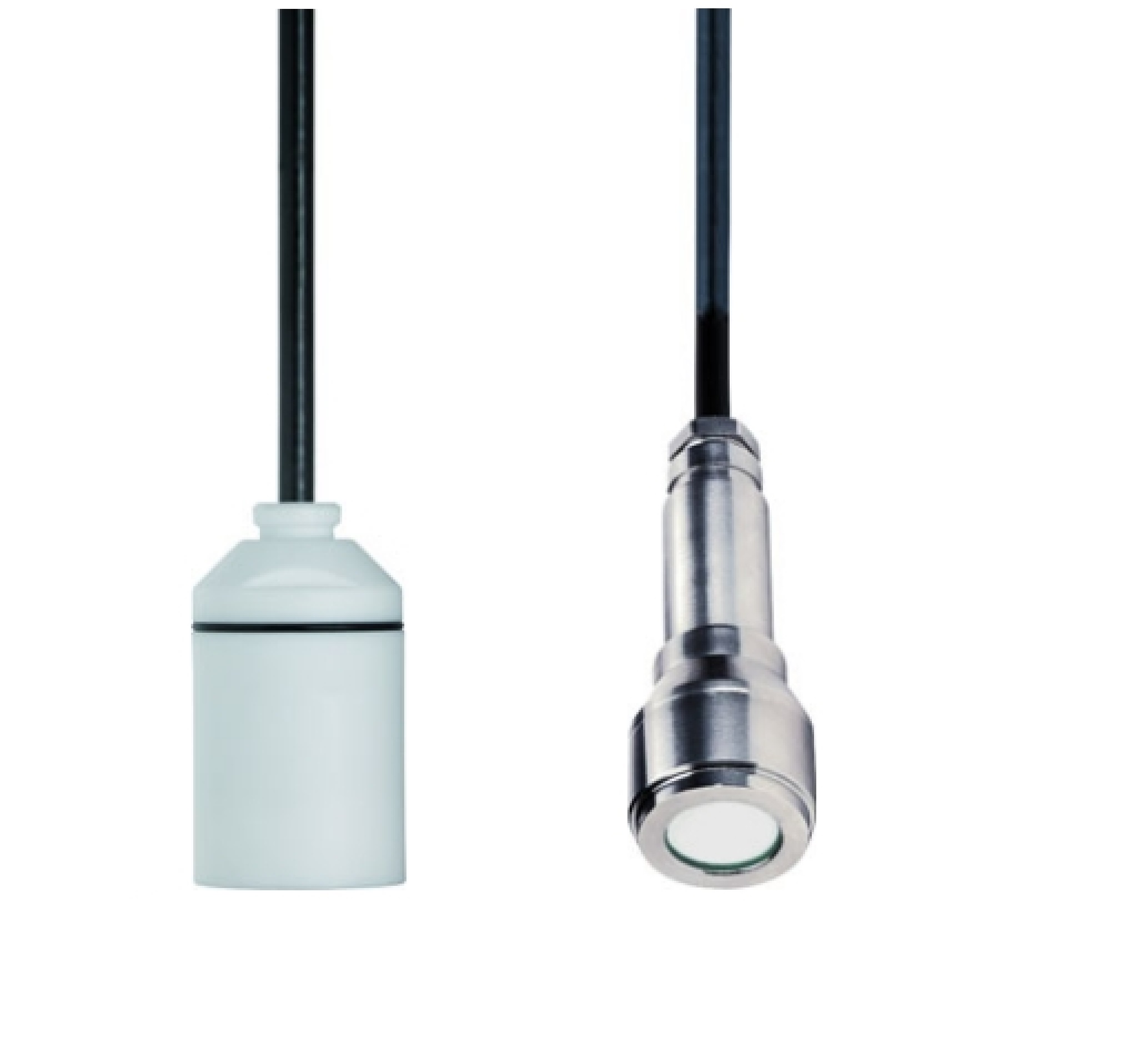

404391 – Level Probe for liquids - Critical applications

Measuring ranges: 50mbar to 1.6 bar.

  • Level probe for continuous level measurement in liquids
  • Measuring ranges: 50 mbar to 1.6 bar (0.5 to 16 mWS)
  • Medium temperature -20 to +60 °C
  • Capacitive ceramic sensor
  • Accuracy: 0.2 % MSP (linearity)
  • Ultra-precise measuring cell
  • Excellent long-term stability
  • Mechanical stress resistant membrane
  • High chemical resistance
  • High overload resistance (up to 80 times)
  • Integrated overvoltage protection with the stainless steel version
  • Reverse-polarity protection
  • Integrated temperature sensor Pt100 also available
  • Suitable for indoor and outdoor installations
Brand: JUMO
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

The JUMO MAERA F27 – 404391 level probe is used for the continuous hydrostatic level measurement in liquids. Filling heights between 0.5 and 16 mWS (water column) can be achieved in ventilated tanks.

When the level probe is immersed into a liquid, a liquid column emerges above the probe. The liquid column increases as the probe is immersed deeper into the liquid and creates a hydrostatic pressure on the measuring system by the force of its weight. The measured pressure is transmitted as a standard signal. The signal is linearly proportional to the rising liquid column.

The surrounding pressure is achieved through a special cable with an integrated pressure equalization hose. Any variations in air pressure are therefore automatically compensated and the surrounding pressure is taken into account. The installation can be performed in both indoor and outdoor areas.

A variant with integrated overvoltage protection is available for outdoor installations, which protects the level probe against damage in the event of lightning strikes in surrounding water. The version with a PTFE case is suitable for applications in aggressive mediums. With regard to the temperature-dependent density of a liquid, the medium temperature can be recorded with an integrated temperature sensor Pt100 during level measurement. This temperature value is then used to compensate.

Further information on our level probes from the JUMO MAERA series can be found in the brochure “Level Probes – Hydrostatic Level and Filling Level Measurement” in the Documentation category.

Installation Example:

TYPE 404391
General information
Reference conditionsDIN 16086 and DIN EN 60770
Sensor systemCapacitive ceramic sensor
Mounting positionVertical/hanging from the cable
Output
Analog outputCurrent 4 to 20 mA, two-wire
VoltageDC 0.5 to 4.5 V, three-wire, ratiometric 10 to 90 % of the voltage supply
Step response T90≤ 10 ms
Burden Current
4 to 20 mA, two-wire Voltage
DC 0.5 to 4.5 V, three-wire
RL (UB-12 V) ÷ 0.02 A (Ω)
RL ≤ 10 kΩ
Mechanical features

Ensure the medium durability of the material!
Process connection MaterialStainless steel 316 Ti
Sensor MaterialCeramic Al2O3 (99.9 %)
Case Material

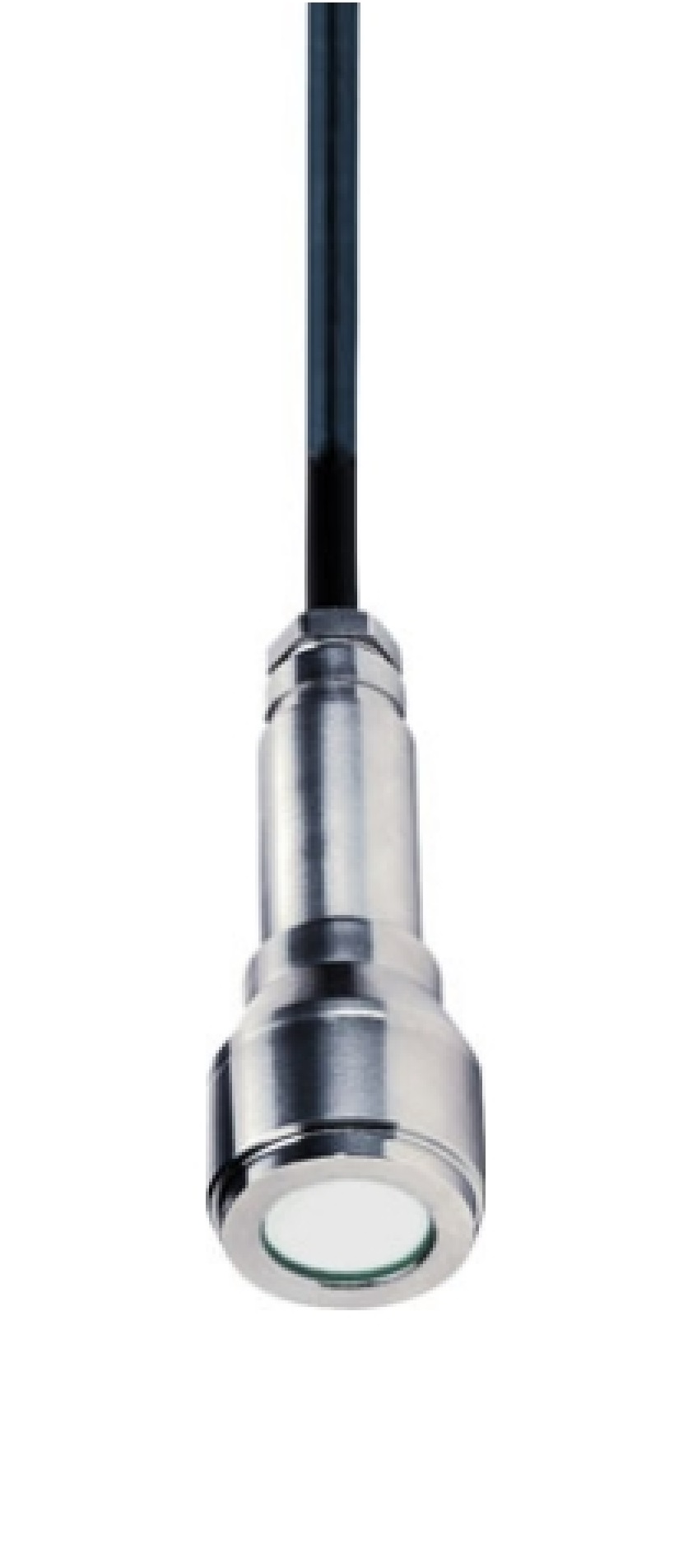

    StandardStainless steel 316 Ti

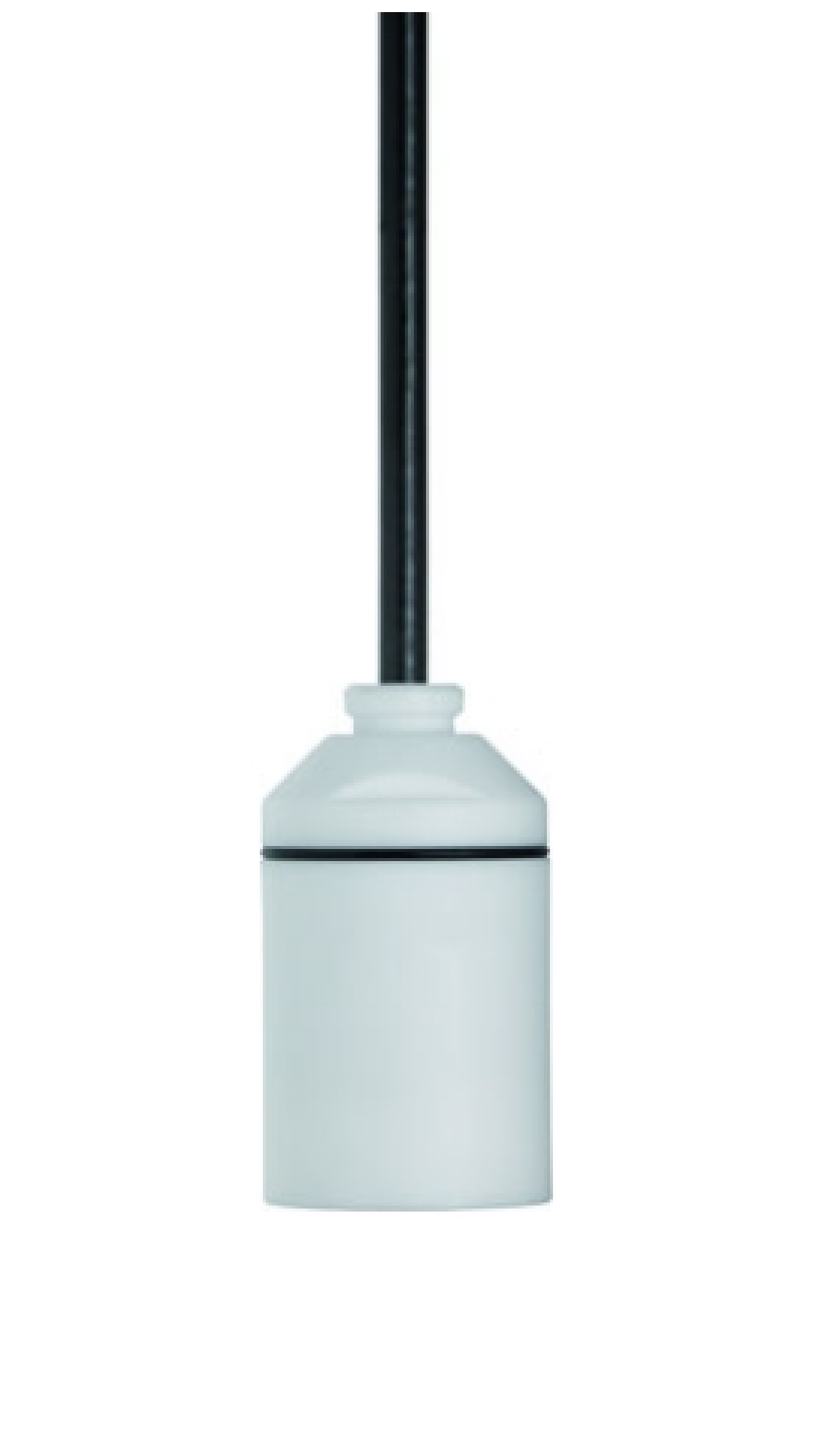

    With basic type extension 022PTFE
    SealsFPM, standard EPDM, NTS 917
    Protective cap (658)PVDF
    Weight200 g (without cable)
Diameter
    Stainless steel version41 mm
    PTFE version50 mm
Environmental conditions
Admissible temperatures
       Medium/environment -20 to +60 °C. The device must not freeze in the medium! A restriction may be required depending on the medium.
      With basic type extension 0220 to 40 °C. The device must not freeze in the medium! A restriction may be required depending on the medium.
    Storage-20 to +100 °C, dry
Electromagnetic compatibility
     Interference emissionaClass B
    Interference immunitybIndustrial requirements
Overvoltage protectioncIntegrated overvoltage protection. Rated leakage current: 1 kA
Protection typedIP68, submersible to 16 m

a According to EN 61326-2-3
b According to EN 61326-1
c According to EN 61000-4-5
d According to EN 60529

  • Jumo 404391 Level Probe - Datasheet 283.79 KB
  • Level Probes Brochure from Jumo 1.56 MB
  • Jumo 404390 Series - Installation Instructions 1.32 MB
  • Jumo Level Probes - Installation Schematic 98.86 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
563227

0~1m H2O with 5m of FEP cable, ceramic cell.
(404391/000-414-405-659-25-005)

$1,340.00
704455

0~1m H2O with 10m of FEP cable, ceramic cell.
(404391/000-414-405-659-25-010)

$1,490.00
43012609

0~1m H2O with 10m of FEP cable, PTFE housing.
(404391/022-414-405-568-25-010)

$1,610.00
43010309

0~4m H2O with 10m of FEP cable, PTFE housing.
(404391/022-452-405-568-25-010)

$1,750.00
382632

Pressure equalization filter for cable

$20.00
61206

Terminal box with pressure compensation

$130.00
61389

Cable Holder

$60.00

Note: Other ranges and cable lengths are available on request. Please contact us.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for JUMO products. Please contact the JUMO distributor in your country if you require sales or service support for JUMO products.
