UNICOMM SAT-504-2 HART and Bluetooth Modem
Click to enlarge

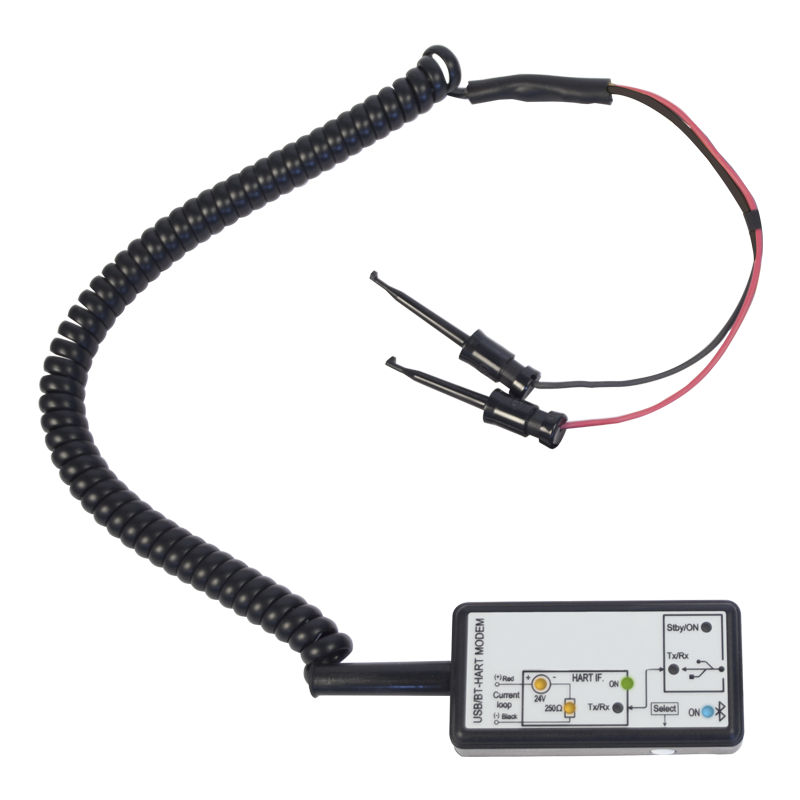

SAT-504 – HART-USB/Bluetooth modem

Brand:

$0.00 Excl. GST

Total: $0.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

GENERAL DESCRIPTION

The UNICOMM interface modules are able to establish communication line between HART®-capable field devices and process controller computer. The communication can be done via USB or RS485 line, and also via Bluetooth®. The UNICOMM HART® modems are applicable not only for NIVELCO transmitters, but for all HART®- capable transmitters which use standard HART® communication. The device is galvanically isolated from both (USB and HART®) sides, when it is used as a HART®-USB modem, connected into the USB input of a PC, the modem does not need external power supply.

SAT-504-2 Features:
  • Transferring measurement data to PC
  • Connecting field transmitter to the PC via USB, RS485 or Bluetooth®
  • 24V current loop power supply
  • Switchable HART® terminal resistor
  • DIN rail mountable version
  • No need for power supply
  • Galvanic isolation
  • IP20 protection
APPLICATIONS
  • Communication interface (modem) between HART®-capable transmitters and PC
  • Minimal system configuration: Windows 7, USB port



Technical Specs

Software

Download Driver HERE

Download Software HERE

See Eview 2 HART Configuration software Manual HERE

Documents
