Jumo Midas SI Pressure Transmitters
Jumo Midas SI $545.00 Excl. GST
Hot Best Seller
Jumo Midas S05 Universal Pressure Transmitters
Click to enlarge

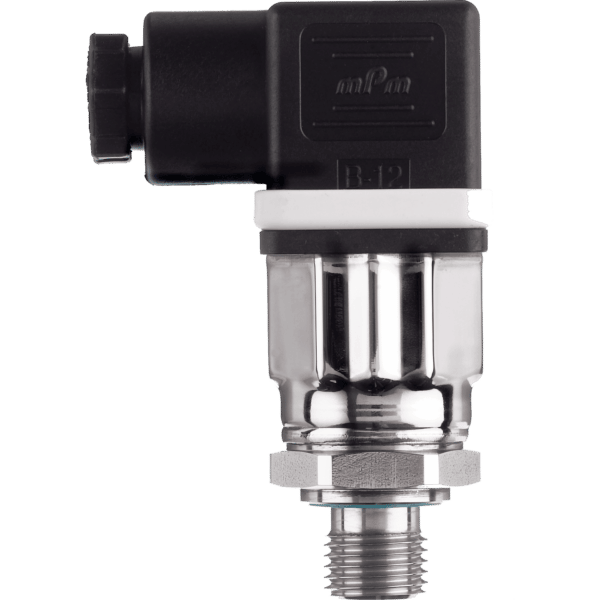

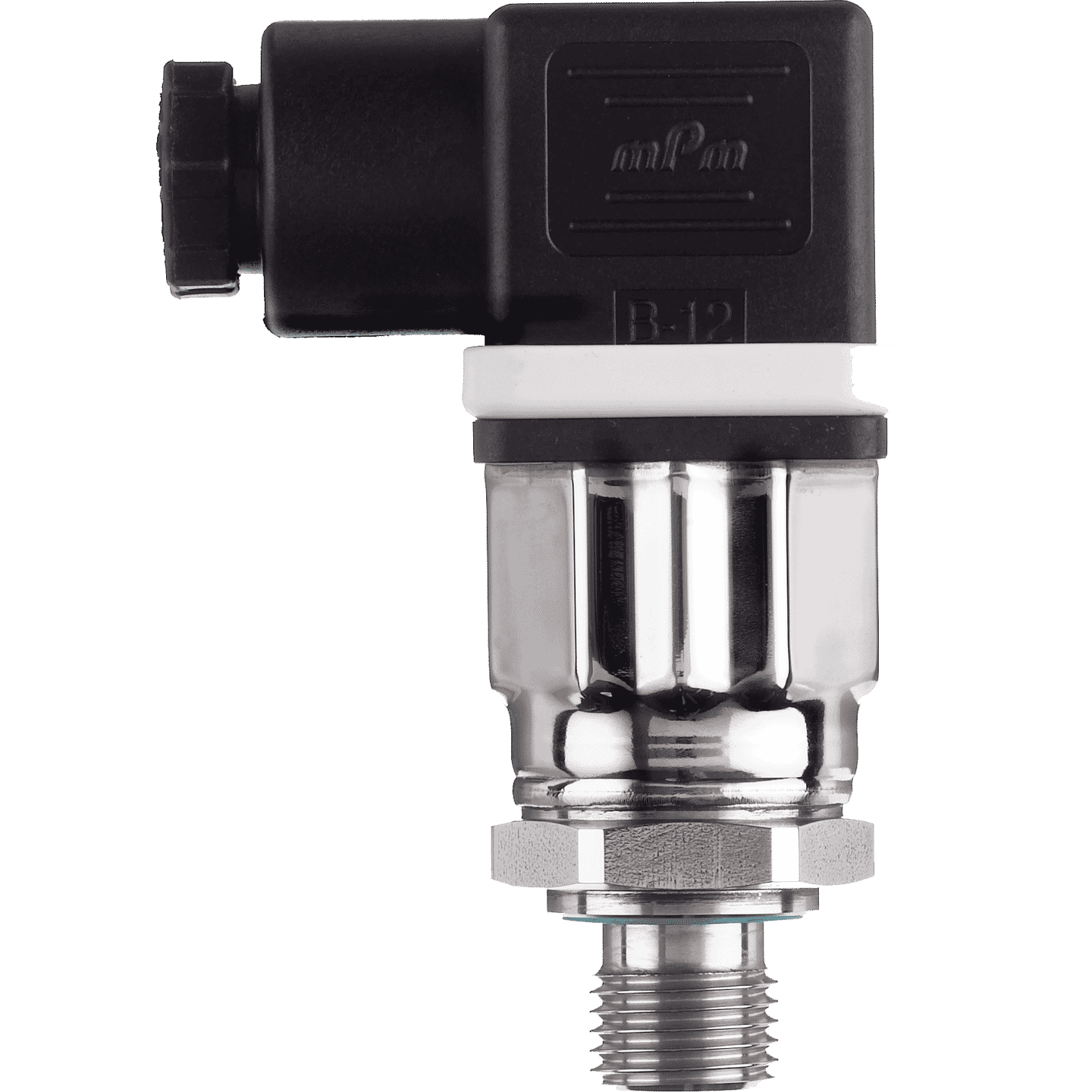

Jumo Midas S05 – Universal Pressure Transmitters - 1/4" BSP Process Connection (401010)

Brand:

$480.00 Excl. GST

Electrical Connection Selection *

Select Input Range *

4~20mA Output

Input Range Selection *

Optional Accessories

1/4″ BSPP to 1/4″ BSPT Adaptor c/w Teflon Crush Washer

1/4″ BSPP to 1/4″ NPT Adaptor c/w Teflon Crush Washer

M12x1 Plug 2m PVC Angled Cable – Unvented

Total: $480.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The JUMO Midas S05 pressure transmitter is used for measuring the relative (gauge) and absolute pressure. The high-quality stainless steel welded measuring system with no seals ensures the instrument can be used in almost all media, even under harsh conditions. The design offers optimum safety against process medium escaping.

The instrument features a silicon sensor that is able to handle extreme overload, even in the lowest measurement ranges, and is capable of millions of pressure cycles.

Jumo Midas S05 Features

  • Measures the relative (gauge) pressure
  • Welded measuring system
  • Silicon sensor is resistant to overloading
  • Protection: IP65
  • Process connection: ¼” BSP
  • Wetted parts: Stainless steel
  • Mounting position: Unrestricted
  • Temperature: Medium, -30~125°C / Ambient, -20~125°C
  • Output: 4~20mA. 2 wire, loop powered
  • M12 Electrical connection available (IP67)
  • Options available (Indent):
    – Other input (including absolute) / output ranges
    – Process and Electrical connections

Technical Specs

JUMO MIDAS S05 Specifications
Pressure transmitter 2 wire, loop powered
Protection IP65
Process connection ¼” BSP
Wetted parts Stainless steel
Mounting position Unrestricted
Temperature Medium, -30~125°C
Ambient -20~125°C
Output 4~20mA. 2 wire, loop powered
UT = 10...30Vdc
Load resistance RL = (US-10V) / 0.02A. max
Range Ranges in gauge pressure;
from -1~1.5 bar to -1~24 bar and from 0~1.0 bar to 0~60 bar

Ordering Information

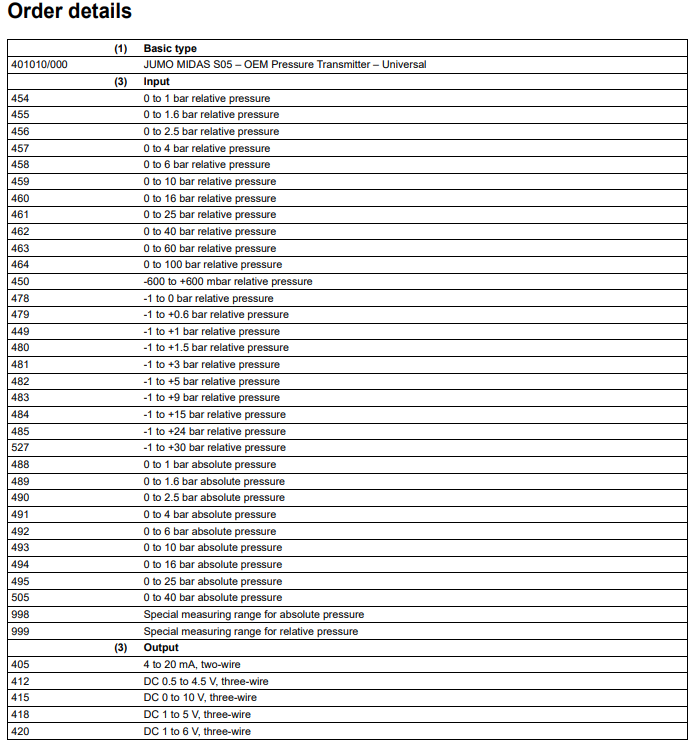

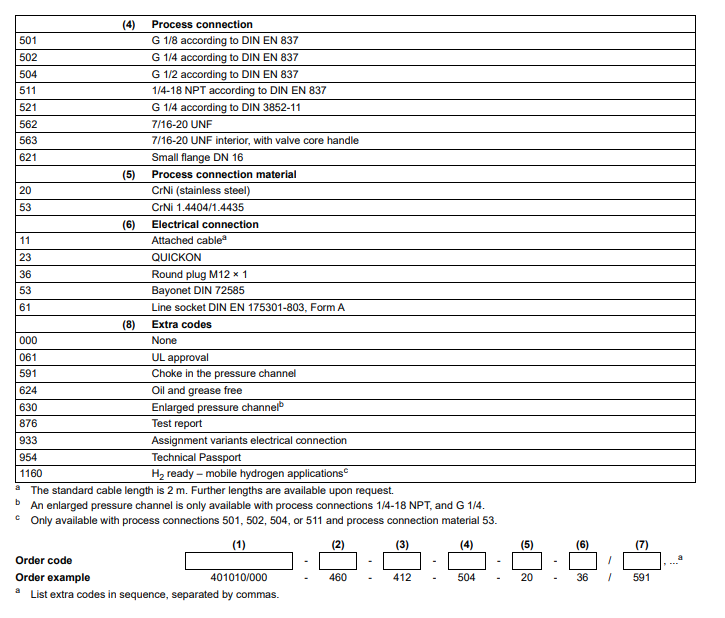

Ordering Information - Jumo Midas S05 Pressure Sensor

Documents
