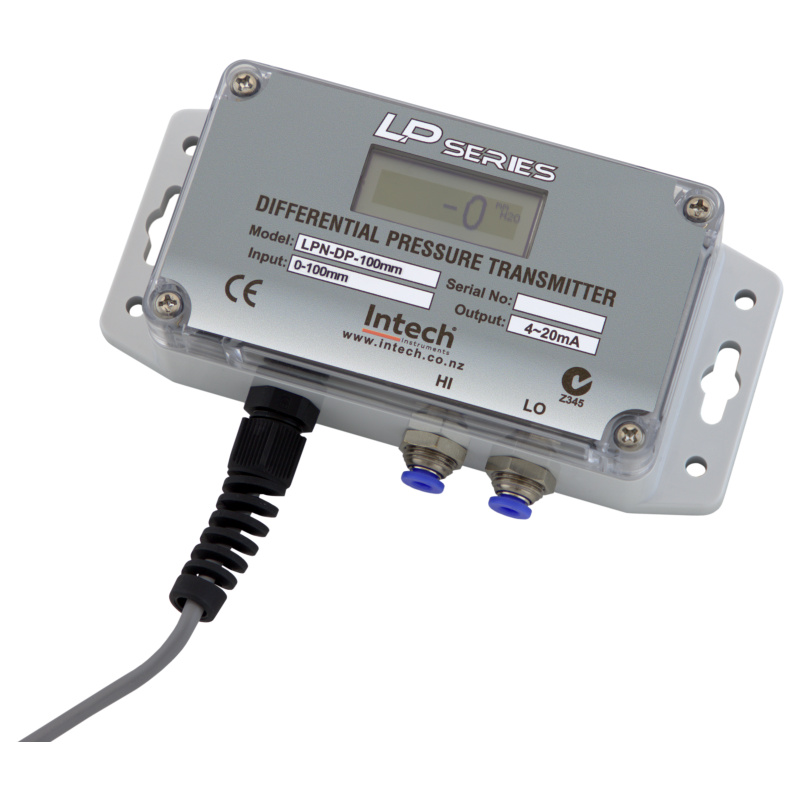

Programmable Differential Pressure Input to 4~20mA Loop Powered Output Transmitters
The LPN-DP (Rev 1) Series Differential Pressure Transmitters provide a very cost effective solution for pressure applications that require high accuracy over very low operating pressure ranges. The sensor is a solid state device and hence offers reliability and long life. The series is designed for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.
The LPN-DP (Rev 1) can be used to measure bipolar differential, gauge pressure or vacuum.
| TYPE | LPN-DP Series |
|---|---|
| Output | 2 Wire 4~20mA (Loop Powered). |
| Power Supply | 8~33Vdc (Loop Powered). |
| Maximum Output Current | 30mA. |
| Supply Voltage Sensitivity | <±0.01%/V FSO. |
| Output Load Resistance | 800W @ 24Vdc (50W/V above 8Vdc). |
| Pressure Fittings | Hi / Lo Pressure Connections by 4mm 'Push-fit'. |
| Combined Linearity & Hysteresis | ±0.2% FSO. |
| Temperature Drift | ±0.02%/C FSO (0~50°C). |
| Repeatability | ±0.2% FSO. |
| Long Term Stability of Offset & Span | ±0.5% FSO. |
| Compensated Temperature Range | 0~50°C. |
| Operating Temperature Range | 0~70°C. |
| Maximum Fluid Temperature Range | -40~85°C. |
| Humidity Limits | 0~90%RH Max. Non-condensing. |
| Corrosion Proofed | Circuit Boards and Components by Isonel 642. |
| Enclosure Type | Polycarbonate. |
| Enclosure Rating | IP66 rated, RoHS Compliant, UL 94 HB Flammability Rating. |
| Enclosure Dimensions | L=115mm, W=66mm, H=41mm (Length including mounting flanges = 145mm). |
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| LPN-DP-100 | 0~100mm WG (Differential range within ±100 to ±100 mmWG) | $695.00 | |||||||||
| LPN-DP-1000 | 0~1000mm WG (Differential range within ±100 to ±1000 mmWG) | $695.00 | |||||||||
| LPN-DP-100K | 0~100kPa (Differential range within ±10kPa to ±100kPa) | $695.00 | |||||||||
