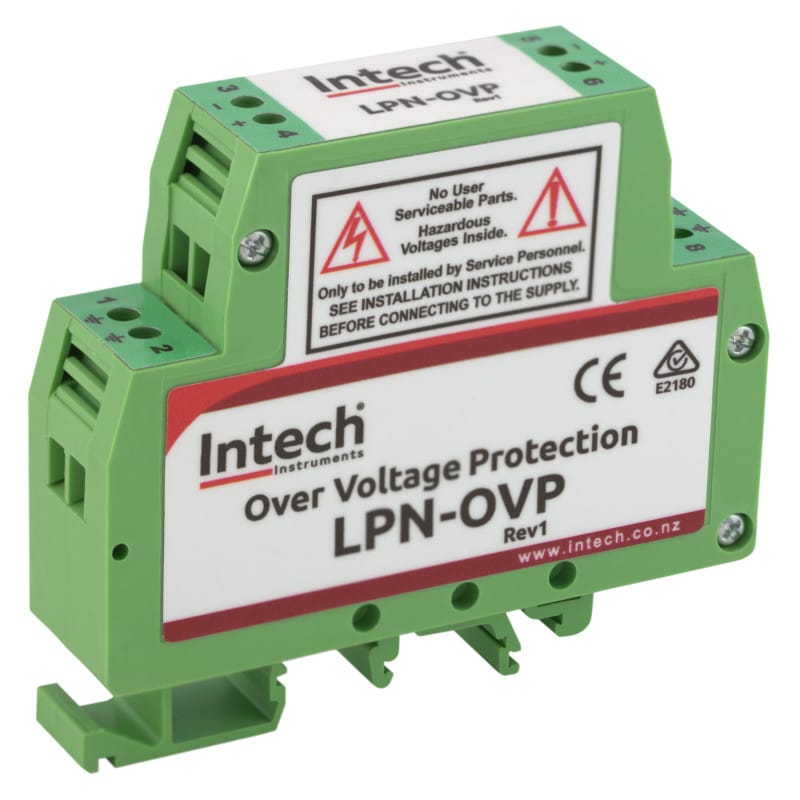

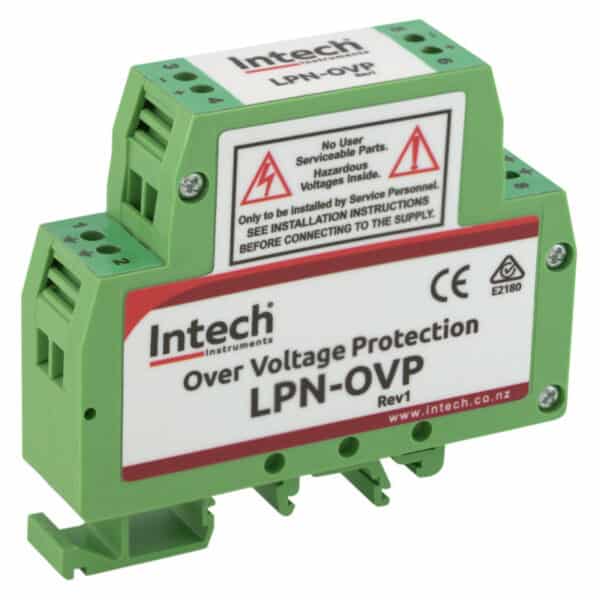

This over voltage protection unit is characterized by its high level of protection, concentrated in a compact space. The LPN-OVP (Rev 1) is suitable for installing in the narrowest of places, making it ideal for automated process industrial and building service systems.
The circuit design is simple but very effective. Gas discharge tubes provide the first stage protection and can discharge up to 5000A when exposed to a 8×20µs waveform. Transient voltage suppressors provide the second stage protection, and typically operate within 5ns, and can discharge 600W when exposed to a 10×1000µs waveform.
