Features:
- 17mm diameter.
- Integrated construction.
- Sensor housing protection IP68.
- Cost-efficient, high reliability and stability.
- RoHS approved

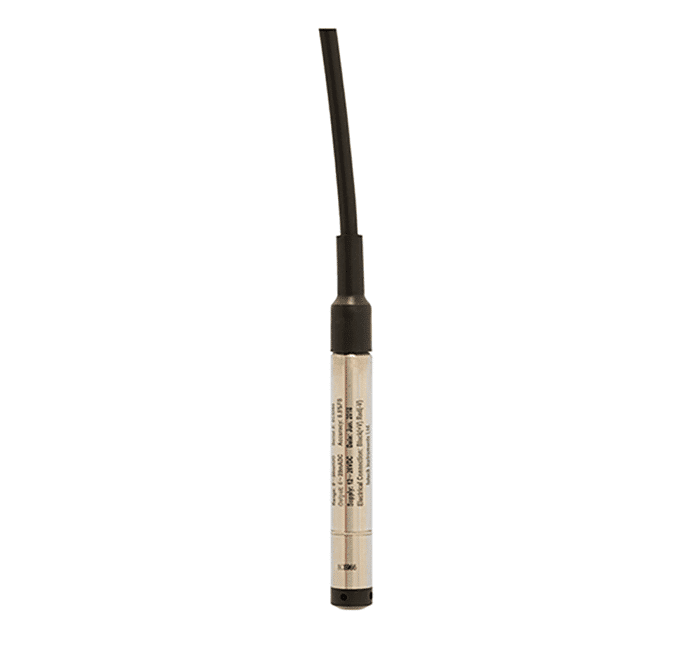

17mm Small diameter hydrostatic level transmitter for liquid level measurement.
The Intech IN-LLT-C17 hydrostatic level transmitter is a fully sealed submersible pressure instrument. It is designed for liquid level measurement (Water Applications).
The IN-LLT-C17 is the slim model –17 mm diameter – and is designed for liquid level measurement. The sensor and electronics are housed within a stainless steel IP68 housing and provide end users with an Industrial 4~20mA loop powered or 0~5Vdc signal.
Features:
TYPE | IN-LLT-C17 |
Housing: | 92mm x ø17mm, Stainless Steel |
Protection: | IP68. |
Cable: | polyethylene Ø9mm. |
Accuracy: | on full scale, 0.5%. |
Operating temp: | -10~80°C. |
Temp coefficient: | ±0.2% / 10°C. |
Load resistance: | <(UT-12)/0.02. |
ITEMS | CODE | DESCRIPTION | |||
SERIES | IN-LLT- | Hydrostatic Level Transmitter, 17mm diameter. | |||
OUTPUT | C17- | 4~20mA Output (loop powered). | |||
V17- | 0~5Vdc Output. | ||||
RANGE | |||||
10 | 0~10 m H2O with 15m Cable. | ||||
20 | 0~20 m H2O with 30m Cable | ||||
50 | 0~50 m H2O with 60m Cable. | ||||
100 | 0~100 m H2O with 110m Cable. | ||||
150 | 0~150 m H2O with 160m Cable. | ||||
200 | 0~200 m H2O with 210m Cable. |
Code | Specifications | Price | Quantity | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
IN-LLT-C17-10 | 0~10m H2O with 15m of cable. Slim diameter 17mm level transmitter | $880.00 | |||||||||
IN-LLT-C17-20 | 0~20m H2O with 30m of cable. Slim diameter 17mm level transmitter | $952.00 | |||||||||
IN-LLT-C17-50 | 0~50m H2O with 60m of cable. Slim diameter 17mm level transmitter | $1,100.00 | |||||||||
IN-LLT-C17-100 | 0~100m H2O with 110m of cable. Slim diameter 17mm level transmitter | $1,300.00 | |||||||||
NAA-209 | Cable Mounting Wedge Clamp | $37.00 | |||||||||
NAA-105 | Cable Holding Sliding Sleeve | $216.00 | |||||||||

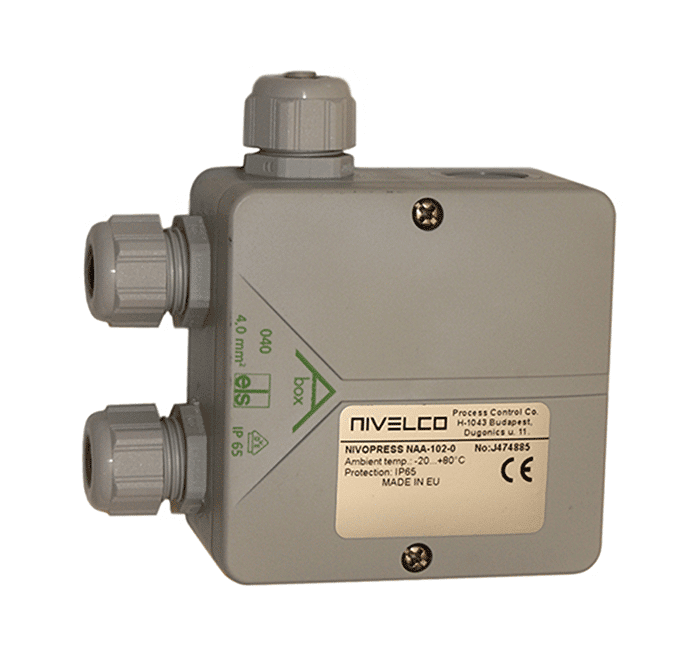

NAA-102 | Terminal box with filter and integral OVP | $340.00 | |||||||||
NAA-101 | Terminal box with filter without OVP | $86.00 | |||||||||
Note: Other ranges and cable lengths are available on request. Please contact us.
