Midas H20 HP - Pressure Transmitters - High Pressure - 1/4" BSP Process Connection
Click to enlarge

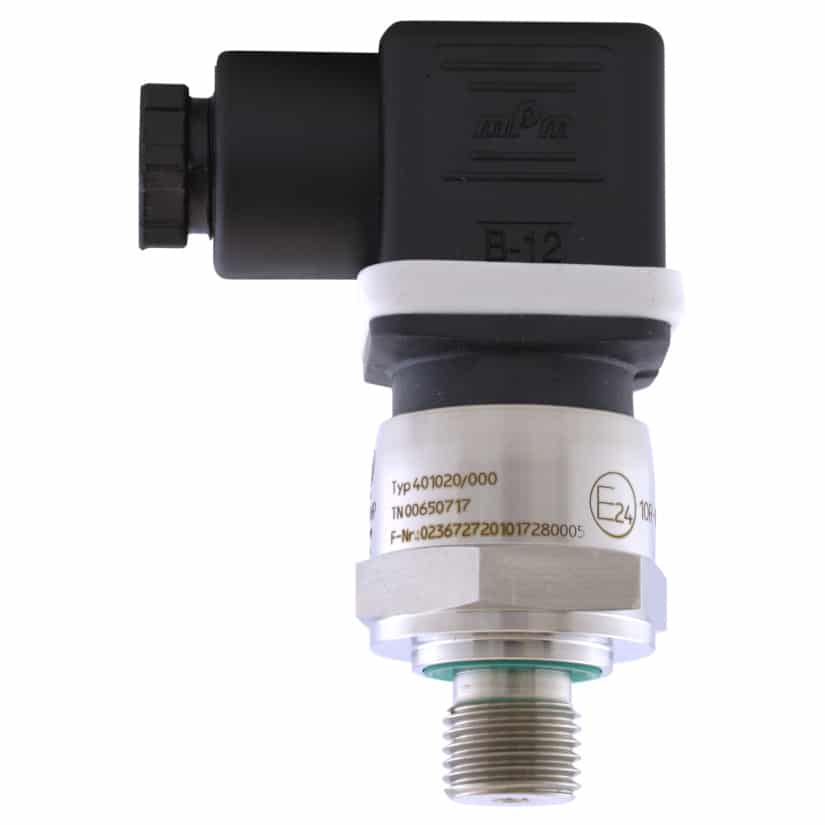

Jumo Midas H20 HP – Pressure Transmitters - High Pressure - 1/4" BSP Process Connection (401020)

Brand:

$498.00 Excl. GST

Input Range Selection *

(401020/000-464-405-521-20-61/000)

(401020/000-466-405-521-20-61/000)

(401020/000-467-405-521-20-61/000)

Optional Accessories

1/4″ BSPP to 1/4″ NPT Adaptor c/w Teflon Crush Washer

1/4″ BSPP to 1/4″ BSPT Adaptor c/w Teflon Crush Washer

M12 x 1 Plug 2m PVC Angled Cable – Unvented

Total: $498.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The pressure transmitter JUMO MIDAS H20 HP is used for measuring the pressure of liquid and gaseous media. The product is based on the thin-film measuring principle. The measured pressure is converted into an electrical standard signal of voltage or current and is output via various electrical connections. These include connector variants such as M12, Deutsch DT, Metri-Pack, or AMP. An attached cable and the cable socket are also available.

ECE type approval is available for applications such as those required in mobile hydraulics.

The high degree of resistance to vibration and shock combined with the high insulation voltage guarantee reliable operation even in difficult conditions. The compact design type of the pressure transmitter provides greater spatial freedom in its use.

High Pressure version of Midas S05/SI. Range: from 0~100 to 0~600bar.

Jumo Midas H20 HP Features:

  • Pressure transmitter: 2 wire, loop powered
  • Protection IP65
  • Process connection: ¼” BSP
  • Wetted parts: Stainless steel
  • Mounting position: Unrestricted
  • Temperature: Medium, -40~125°C / Ambient, -30~100°C
  • Output: 4~20mA. 2 wire, loop powered. UT = 10~30Vdc
  • Load resistance RL = (US-10V) / 0.02A. max
  • Ranges from 0~100 to 0~600 bar
  • Compact design: 35mm in length
