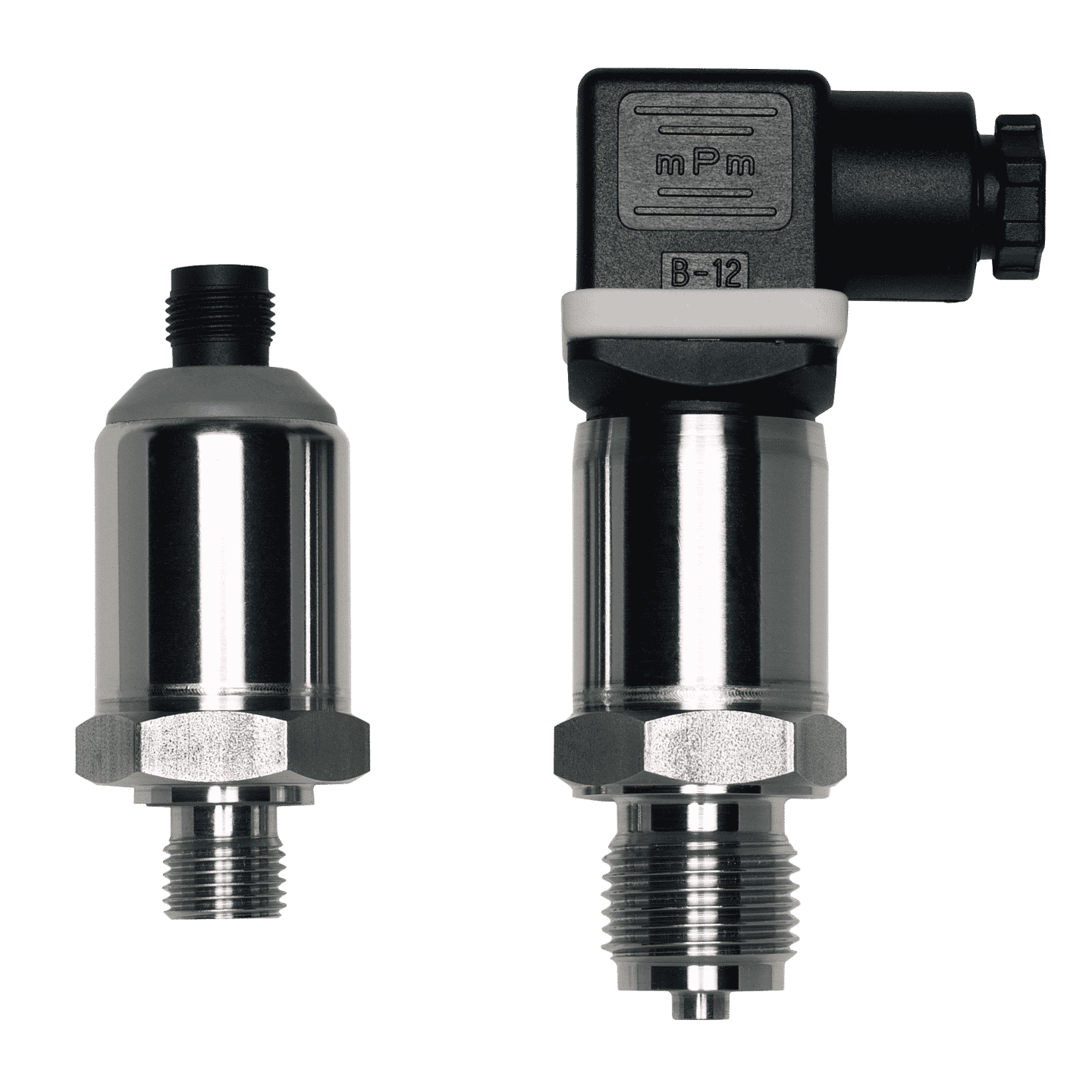

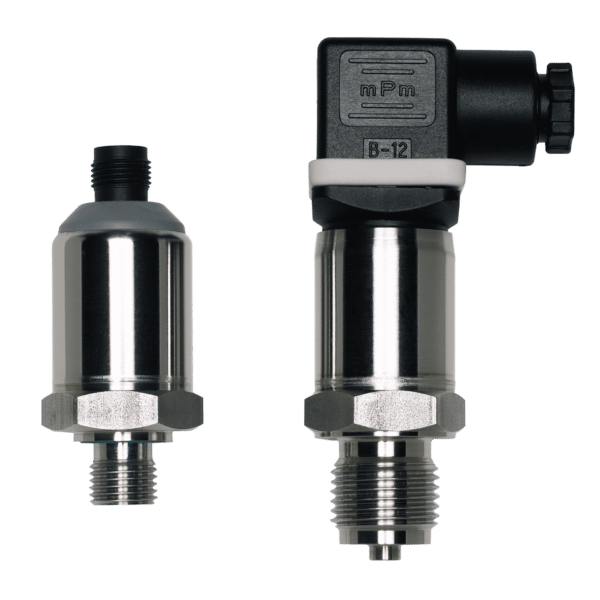

Jumo Midas SI – Pressure Transmitters - 1/4" BSP Process Connection (401006)

Product Details

The JUMO Midas SI pressure transmitter is used for measuring the relative (gauge) pressure. The high-quality stainless steel welded measuring system with no seals ensures the instrument can be used in almost all media, even under harsh conditions. The design offers optimum safety against process medium escaping.

This pressure transmitter acquires the relative and absolute pressure of gaseous and liquid media and transforms it into an electrical signal. One of the application areas in which it is used is aggressive media.

The instrument features a silicon sensor that is able to handle extreme overload, even in the lowest measurement ranges, and is capable of millions of pressure cycles. Many applications may be found in cooling and air conditioning systems, compressors, mechanical engineering, commercial vehicles, and industrial pneumatic uses.

Jumo Midas SI Features:

• Ranges available between 0~250 mbar and 0~600 mbar
• Welded measuring system
• Compact design: as of 71 mm in length
• High bursting strength
• Pressure transmitter 2 wire, loop powered
• Protection IP65
• Process connection: ¼” BSP
• Wetted parts Stainless steel
• Mounting position: Unrestricted
• Temperature: Medium, -30~125°C / Ambient, -20~125°
• Output: 4~20mA. 2 wire, loop powered. UT = 10~30Vdc
• Load resistance RL = (US-10V) / 0.02A. max
• Midas SI ranges from 0~0.25 bar to 0~0.6 bar
• M12 Process connection available (IP67) (Indent only)

Note: The Midas S05 replaces the Midas SI in most ranges.
