Home | Products | Pressure | I/P Transducers | 500 Series

500 Series – I/P Transducer

Industrial Current to Pressure Transducer

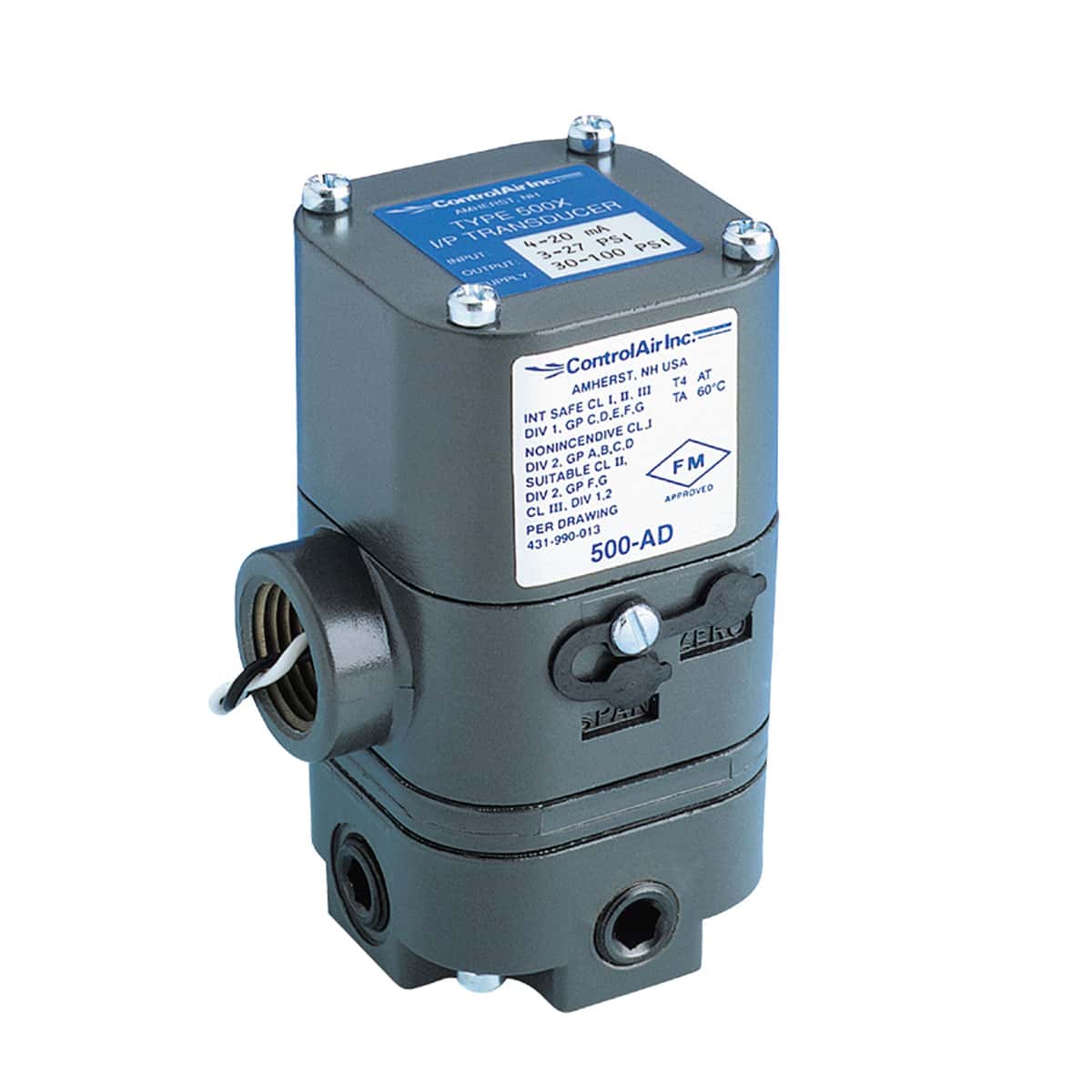

ControlAir 500 Series I/P Transducers

500 Series Features

  • Low Cost
  • Integral Volume Booster
  • Compact Size
  • Low Air Consumption
  • Flexible Zero
  • Span Adjustments
  • Standard Process Inputs
  • Split Ranging
Brand: CONTROLAIR
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The ControlAir Type-500X converts a current or voltage input signal to a linearly proportional pneumatic output pressure. This versatile instrument is designed for control applications that require a high degree of reliability and repeatability at an economical cost.

The Type-500X is available in two different versions. The lower range model is designed for standard process control applications which typically utilize a 3 to 15 psig (0.2 to 1 bar) output. The extended range unit provides up to 145 psig (10 bar) output for higher pressure industrial pneumatic and process control system requirements.

ControlAir 500 Series - Specification
Type Low Output Range
(Up to 30 psig (2 bar))
High Output Range
(Up to 120 psig (8 bar))
Min/Max Supply Pressure Minimum - 3 psig (0.2 bar) above maximum output Maximum - 100 psig (7 bar) Minimum - 5 psig (0.3 bar) above maximum output Maximum - 150 psig (10 bar)
Supply Pressure Sensitivity <± 0.1% of span per 1.0 psig
(<± 0.15% of span per 0.1 bar)
<± .04% of span per 1.0 psig
(0.07 bar)
Terminal Based Linearity <± 0.75% of span <± 1.5% of span typical, ± 2.0% max
Repeatability < 0.5% of span < 0.5% of span
Hysteresis < 1.0% of span < 0.5% of span
Response Time Dependent on pressure range - typically less than 0.25 sec for 3-15 psig units
Flow Rate 4.5 scfm (127 Nl/min) at 25 psig (1.7 bar) supply
12.0 scfm (340 Nl/min)) at 100 psig (7 bar) supply
20.0 scfm (566 Nl/min)) at 150 psig (10 bar) supply
Relief Capacity
Maximum Air Consumption .05 scfm (1.4 Nl/min) midrange typical .07 scfm (2 Nl/min)) midrange typical
Media Oil free, clean dry air filtered to 40 micron
Temp. Range (Operating) -20°F to +140°F (-30°C to 60°C)
Port Sizes 1/4 NPT(Pneumatic)
1/2 NPT(Electric)
1/4 NPT(Pneumatic)
1/2 NPT(Electric)
Weight 2.1 lbs. (0.94 kg) 2.1 lbs. (0.94 kg)
  • ControlAir 500 Series I/P Transducers - Manual 422.26 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
500-AC

I/P Transducer 3~15psi, 4~20mA, 180 ohms.

$868.00
500-AD

I/P Transducer 3~27psi, 4~20mA, 220 ohms.

$868.00
500-AE

I/P Transducer 6~30psi, 4~20mA, 220 ohms.

$868.00
500-AG

I/P Transducer 2~60psi, 4~20mA, 225 ohms

$898.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are New Zealand distributors for ControlAir products. Please contact the ControlAir distributor in your country if you require sales or service support for ControlAir products.
