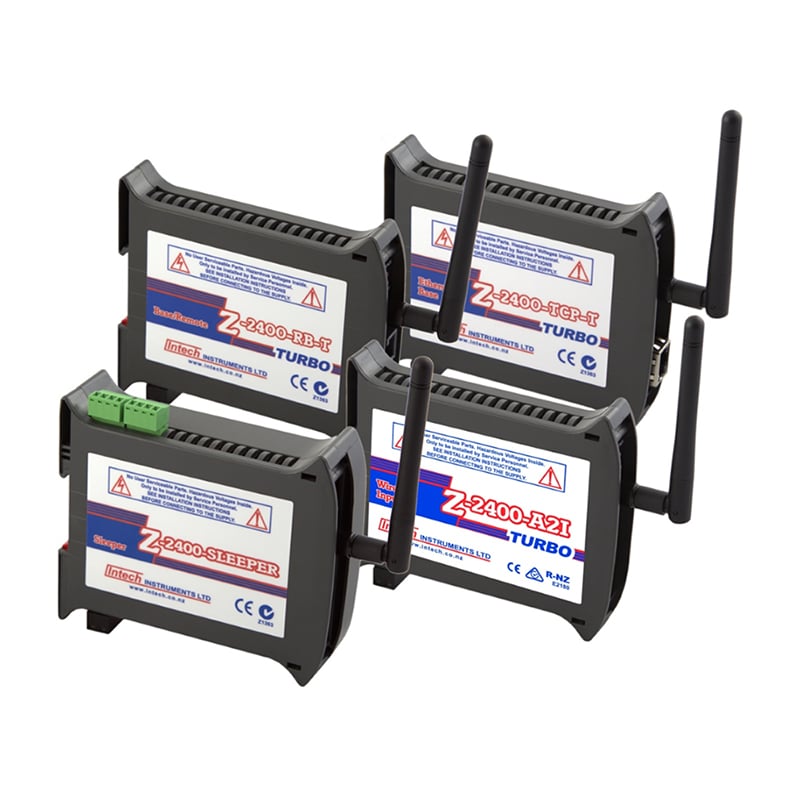

Z-2400 Series – MicroScan Wireless Data Links - ZigBee®

ZigBee® Technology empowers the Intech MicroScan plus Modbus applications.

Features

  • Integrated with ZigBee® technology to form a mesh network between all Z-2400 nodes
  • Communicates data signals via a wireless network
  • Secure networking
  • Low power consumption
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Software
  • Documents

Description:

ZigBee® is a specification for a suite of high level communication protocols using small, low-power digital radios based on the IEEE 802.15.4-2006 standard for wireless personal area networks (WPANs).

ZigBee® is targeted at radio-frequency (RF) applications that require a low data rate, secure networking, and low power consumption, especially for the battery powered Z-2400-Sleeper modules.

The Z-2400 Series operate with the user friendly MicroScan SCADA (Version 5.1 or later) software.

If you are looking for wireless monitoring and/or remote control solutions, the Z-2400 modules may be the answer.

Z-2400 devices have the ability to form a mesh network between modules. This technique allows the short range of an individual module to be expanded and multiplied, covering a much larger area.

When the mesh network discovers a new Z-2400 module, it will automatically incorporate it into the current network. If a node malfunctions, the mesh network will route the data through an alternate path using another node.

Ideal for laboratories, Hospitals, Industry and Utilities!

Typical Applications

  • Laboratories
  • Hospitals
  • Industry
  • Utilities

Common Specifications:

  • Wireless standard: IEEE 802.15.4-2006.
  • Wireless range: 100m typical line of sight with included whip.
  • Wireless Frequency: 2405~2485MHz.
  • Frequency Hopping: 15 Channels.
  • Power supply: 9~36Vdc.
  • Power Consumption: 5 VA.

ZigBee® Technology empowers the Intech MicroScan

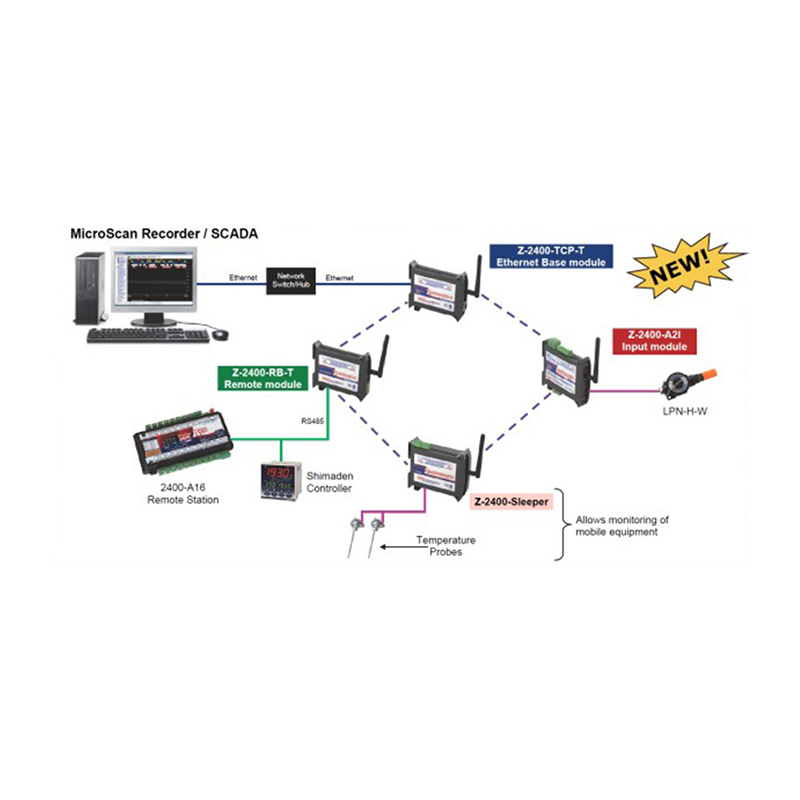

Example schematic showing MicroScan Software and the 2400-A16 Remote Station plus Sleeper for mobile monitoring.

ModelDescription and Features

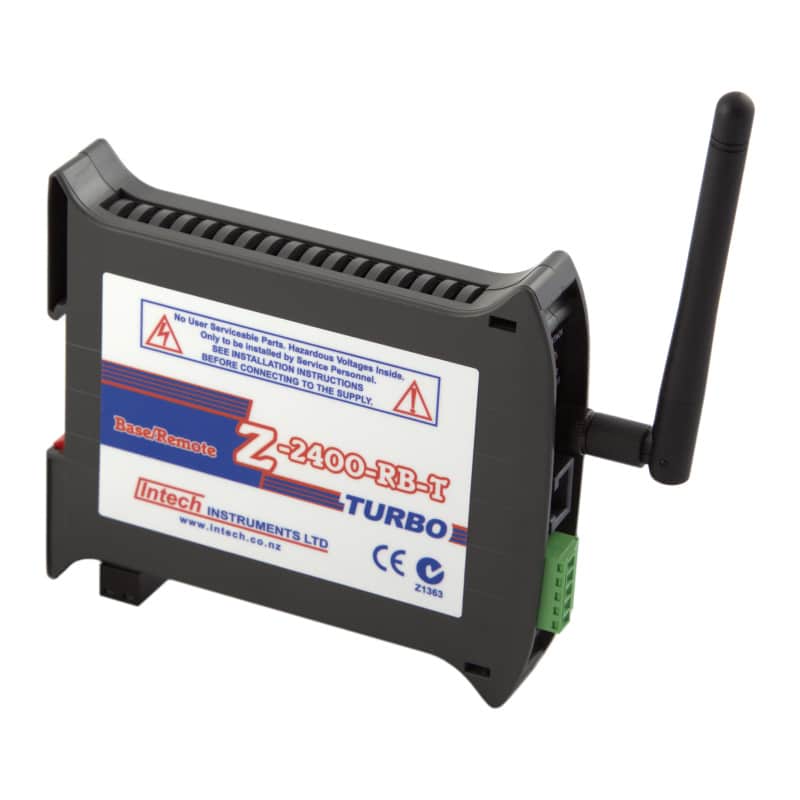

Z-2400-RB-T
Base or Remote Module
Communications: RS232, RS422, RS485.
Wireless Power: 100mW.
Duty: Configurable as Base or Remote. Comms Converters when using as Base.
Embedded protocol support: MicroScan default ASCII.

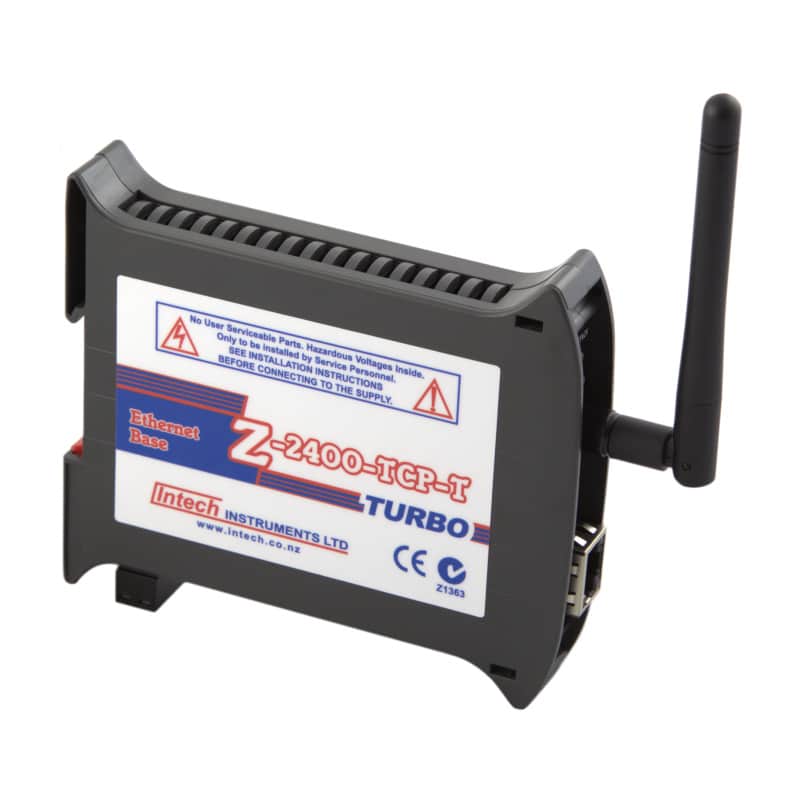

Z-2400-TCP-T
Ethernet Base Module
Communications: Ethernet TCP/IP.
Wireless Power: 100mW.
Duty: Base only.
Embedded protocol support: MicroScan TCP.
Z-2400-A2I
Input Module
(Set as MicroScan mode.)
Universal channel data inputs: 2.
Inputs: RTD/Tc/mV/V/mA/Pseudo Digital.
Digital inputs: 4x 0~1Hz.
Digital outputs: 2x 30Vdc, 1A max.
Relay outputs: 2x 250Vac/30Vdc, 5A max.
Wireless Power: 100mW.

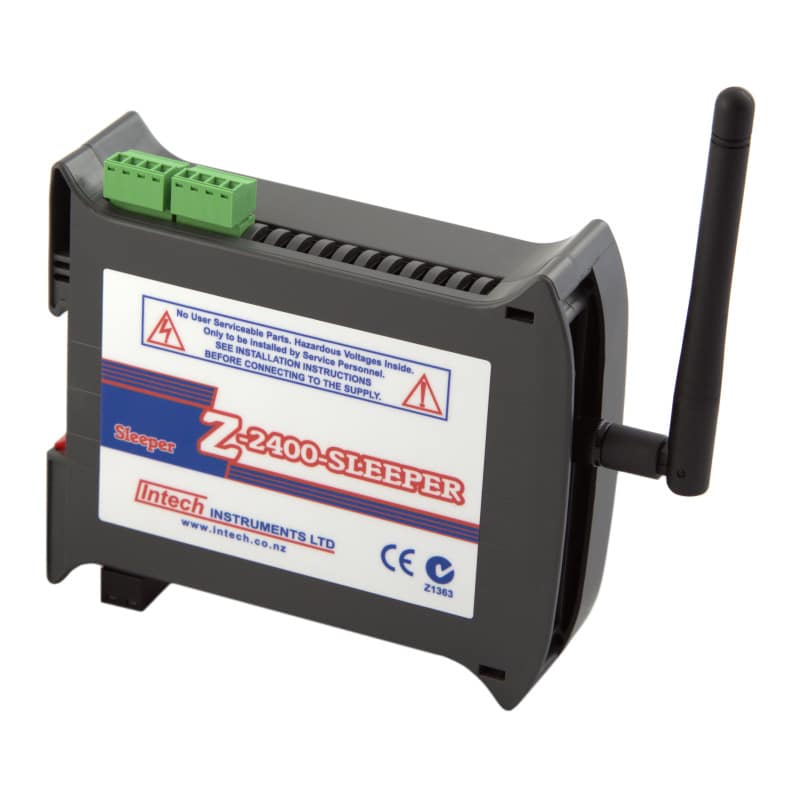

Z-2400-Sleeper
Sleeper Module
Universal channel data inputs: 2 Inputs: RTD/Tc/mV/V/mA/Pseudo Digital.
Selectable update rate: 1,2,5,15,30,60 minutes.
Wireless Power: 1mW.
Embedded protocol support: MicroScan default ASCII.
Battery life: Approx 2 years life when wake up interval set to 2 minutes.
Poor signal strength reduces battery life.
Option to permanently power with plug pack power supply.
Z-2400-T Powered Sleeper

Sleeper Turbo Module
Universal channel data inputs: 2 Inputs: RTD/Tc/mV/V/mA/Pseudo Digital.
Selectable update rate: 1, 2, 5, 15, 30, 60 minutes
Wireless Power: 100mW
Embedded protocol support: MicroScan ASCII
Internal battery for intermittent mains power failure.
Battery life: Approx 2 months of intermittent use.
(Must be permanently powered - plug pack power supply - included)
Z-2400-BATReplacement battery for Z-2400-Sleeper.
XU-USBUSB Programming Key for programming Z-2400-Sleeper using XU Software.
(Same Key as used for programming XU Series transmitters, 2400-A16, Z-2400-A2 Series, IN-uP4 and uP4-Din).
PSW-10-FInstrument Quality 24Vdc Power Supply for the Z-2400 Series:
Output Voltage: 24Vdc
Max Current: 1 Amp continuous
Input Power Supply: 100~264Vac

See all our Antenna Options (Used when greater distances are involved).

TYPE Z-2400 Series
Wireless standard: IEEE 802.15.4-2006.
Wireless range: Between Turbo nodes 4.0Km LOS, Between a Turbo node and a Sleeper node 2.5Km LOS. (LOS refers to ideal line of sight conditions, with no surrounding trees, buildings or RF interference.)
Wireless Frequency: 2405~2485MHz.
Frequency Hopping: 15 Channels.
Wireless Power: Turbo Nodes 100mW, SLEEPER Node 1mW.
Intech Devices Compatible with the Remote node:
2400-A16, 2400-M-R, 2100-XX (2100-A16,D,A4,A4e).
2300-XX stations (base & remote set to MODBUS).
Shimaden Standard Protocol Controllers SR90, SR80, SRS10A, FP93, FP23, SR23, SD16A, SD24.



TYPE Z-2400-RB-T (Turbo Base/Remote) Z-2400-TCP-T (Turbo Base)
Communications: RS232, RS422, RS485. MicroScan ASCII.
Duty: Configurable as Base or Remote. Base only.
Embedded protocol support: MicroScan. MicroScan TCP.
Power Supply: 9~36Vdc.
Power consumption: 2VA.
Router data rate typical: 2400-A16 = 2sec accumulative.

Shimaden = 1sec accumulative.

 –



TYPE Z-2400-SLEEPER
Number of universal inputs: 2 channels (not isolated).
  •  RTD, Pt100 and Pt1000.
  •  Thermocouple B,E,J,K,N,R,S,T.
  •  RTD & Thermocouple output linearised.
  •  mA, mV and V.
  •  Pseudo Digital.
High Accuracy: 0.1%
Reverse polarity protected.
Scan Rate: 1, 2, 5, 15, 30 or 60min. Dip-switch selectable.
Optional external Power Supply: 9~36Vdc.
XU-USB required for programming universal inputs.



TYPE Z-2400-A2I (Turbo Remote Station)
Number of universal inputs: 2 isolated channels.
  •  RTD, Pt100 and Pt1000.
  • Thermocouple B,E,J,K,N,R,S,T.
  • mA, mV and V.
  • Pseudo Digital.
Number of digital inputs: 4.
Number of digital outputs: 2.
Number of relay outputs: 2.
Power Supply: 9~36Vdc.
Power consumption: 2.5VA.
XU-USB required for programming universal inputs.

Software Versions:

The Z-2400 Series of units require the following software for configuration/operation:

MicroScan SCADA (V5.1 or later) – all units (except Z-2400-A2I).
XU Software (V1.30 or later) – for programming Z-2400-Sleeper analogue inputs.
Station Programmer (V5.2.3613 or later) – XPort® Ethernet converter configuration for the Z-2400-TCP.
Z-2400-A2I Programmer – for programming the Z-2400-A2I only.

  • Intech ZigBee Z-2400 Series MicroScan Wireless Data Links - Brochure 207.16 KB
  • Intech Z-2400-RB-T & Z-2400-TCP-T- Installation Guide 556.35 KB
  • Intech Z-2400-Sleeper - Installation Guide 552.09 KB
  • Intech Z-2400-A2I - Installation Guide 486.10 KB
  • Intech Z-2400 Antenna Range - Brochure 203.69 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
Z-2400-RB-T

Base Or Remote Turbo Module

$486.00
Z-2400-TCP-T

Ethernet Base Turbo Module

$795.00
Z-2400-A2I

Input Module (Set as MicroScan mode)

$448.00
Z-2400-SLEEPER

Sleeper Module

$618.00
Z-2400-T Powered Sleeper.

Sleeper Turbo Module

$618.00
Z-2400-BAT

Replacement battery for Z-2400-Sleeper.

$69.00

Note: ZigBee® is a registered trademark of the ZigBee Alliance, Inc.

All prices are in NZ$, and GST exclusive and are subject to change without notice.



Product Bottom

Not sure what you need? Ask us anything!

  • (03) 343-0646Christchurch
  • (09) 827-1930Auckland
  • sales@intech.co.nz

Primary Sidebar

Footer

Who we are

  • Products
  • Support
  • About
  • Contact us

Intech Christchurch

59 Mandeville Street
Riccarton, Christchurch 8011

Phone: (03) 343 0646

Email: sales@intech.co.nz

Intech Auckland

70 Central Park Drive
Henderson, Auckland 0610

Phone: (09) 827 1930

Email: aucksales@intech.co.nz

Newsletter

Subscribe to our newsletter and get new information every month.

Copyright © 2019–2022 Intech Instruments Ltd. All rights reserved.
