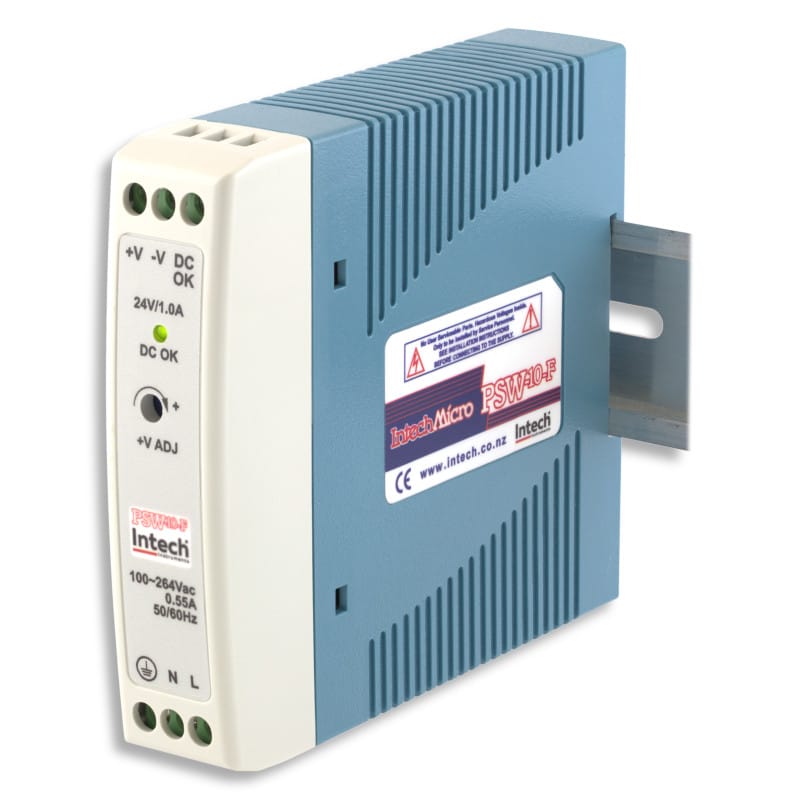

Intech PSW-10-F Instrument Power Supply
Click to enlarge

PSW-10-F – 24Vdc, 1.0A Instrument Power Supply

Brand:

$58.00 Excl. GST

Total: $58.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

The PSW-10-F is an instrument quality isolated switch mode power supply, with an output voltage of 24Vdc and up to 1.0A continuously.

Due to advancements in Switch Mode Power Supply technology, special techniques have been developed that make the PSW-10-F both very low noise and high precision. Both line and load regulation is better than 1% over all conditions. These attributes make the PSW-10-F better than most comparable linear power supplies.

PSW-10-F Features

  • Power supply 24Vdc
  • Output current of 1.0A
  • DC output OK signal
  • Mains input 100~264Vac
  • LED power on indication
  • Short circuit, voltage & current overload protection
  • Isolated output floats close to earth potential
  • Compact DIN rail mount enclosure
  • Cooling by free air convection

Technical Specs

TYPEPSW-10-F
Input voltage Supply100~264Vac, 47~63Hz
140~370Vdc
OutputVoltage24Vdc
Voltage Adjust21.6~26.4Vdc
Current1.0A max
Ripple150mVp-p
Load Regulation±1.0%
Line Regulation±1.0%
Voltage Tolerance±1.0%
Active OK Signal18~27Vdc, 20mA
ProtectionOverload105~160%
Over Voltage27.6~32.4Vdc
SafetyComplies WithUL508, TUV EN60950-1
IsolationBetween Input, Output and Earth: 100MΩ, 500Vdc
EMC EmissionEN55011, EN55022 (CISPR22)
EMC ImmunityEN55024
Environment
    Operating Temperature-20°C~70°C
    Storage Temperature-40°C~85°C
    Operating Humidity20~90% RH
    Storage Humidity10~95% RH
Mounting35mm symmetrical DIN rail
Dimensions92x22.5x100mm (HxWxD)
