The Intech wireless antennas are intended to be used in conjunction with the 2.4GHz Z-2400 Zigbee® Wireless Nodes. Intech provides a range of antennas to cover applications where the range of the radio signal requires extra gain.
Used when greater distances are involved
Features
Description
The Intech wireless antennas are intended to be used in conjunction with the 2.4GHz Z-2400 Zigbee® Wireless Nodes. Intech provides a range of antennas to cover applications where the range of the radio signal requires extra gain.
Z-2400 Antennas | |||||
ZB-ANT-05 | ZB-ANT-02 | ZB-ANT-08 | ZB-ANT-14 | ZB-ANT-19 | |
Frequency Range | 2400~2500MHz | 2400-2484MHz 5150-5825MHz | 2400~2500MHz | 2400~2500MHz | 2400~2485MHz |
Gain | 5.5dBi | 2.2dBi | 8dBi | 14.5dBi | 19dBi |
Vertical Beam Width | 120° | 90° | 15° | 30° | 12° |
Horizontal Beam Width | 360° | 360° | 360° | 30° | 16° |
Polarisation | Vertical | Vertical | Vertical | Vertical or Horizontal | Vertical or Horizontal |
Connector Type | RP-SMA | N-Male | N-Female | N-Female | N-Female |
Impedance | 50Ω | - | 50Ω | 50Ω | 50Ω |
Operating Temperature | -40°~60°C | - | -40°~85°C | -20°~60°C | -40°~65°C |
Pole Size | - | - | 25~50mm | 32~50mm | 30~50mm |
Bracket Tilt | - | - | - | 60° | 60° |
Wind Speed | - | - | 240Km/hr Max | 240Km/hr Max | 200Km/hr Max |
Dimensions | H=208mm, MaxØ=13mm | H=193mm BaseØ=20mm RadomeØ=12.7mm | H=500mm BaseØ=32mm RadomeØ=19mm | L=462mm RadomeØ=76mm | W=630mm H=420mm |
Code | Specifications | Price | Quantity | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|

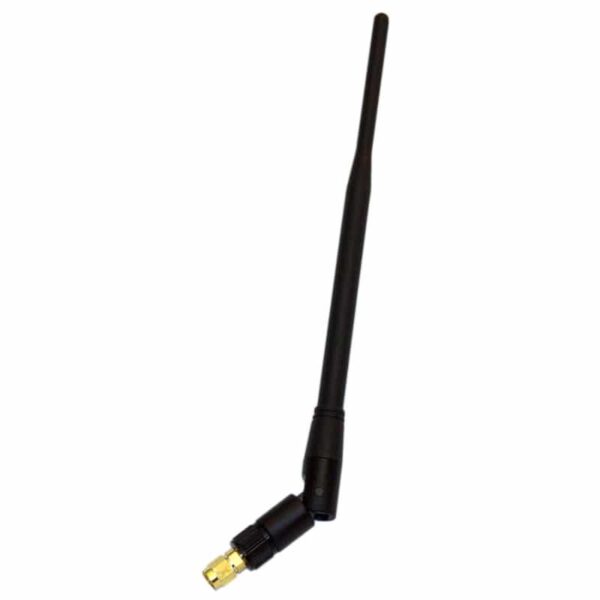

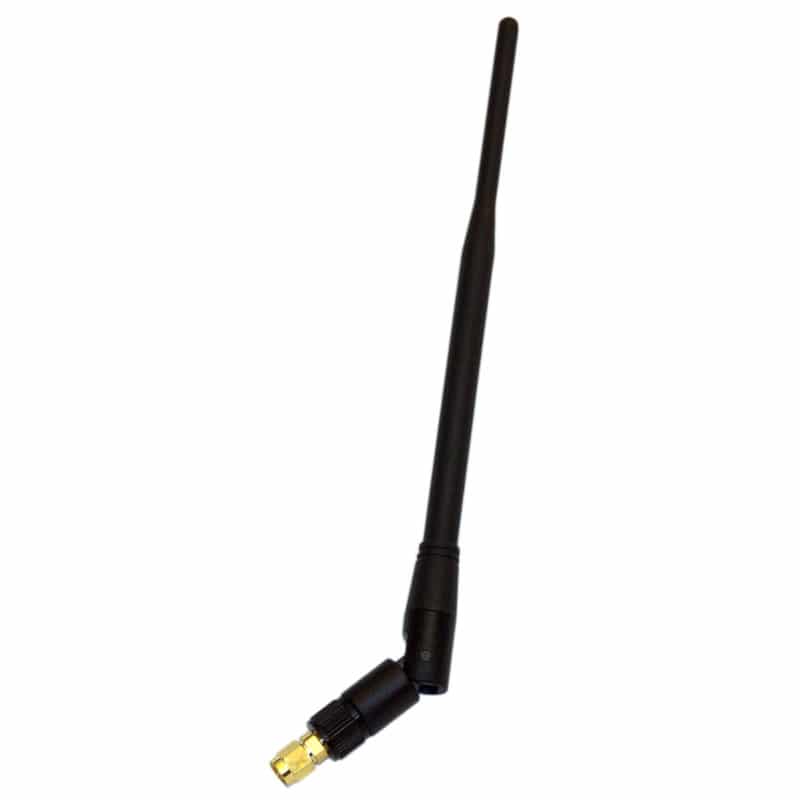

ZB-ANT-05 | Indoor 5.5dBi Omni Directional Rubber Duck Antenna. | $41.00 | |||||||||
ZB-P-56 | 0.3m SMA to SMA Bulkhead Coax Cable. | $32.00 | |||||||||

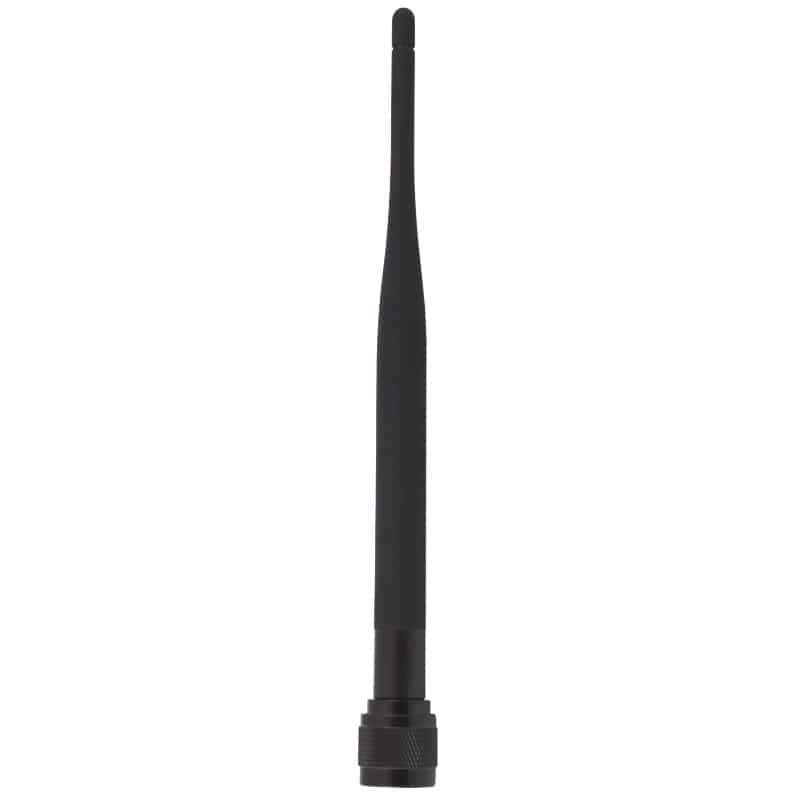

ZB-ANT-02 | Outdoor 2.2dBi Omni Directional Whip Antenna. | $54.00 | |||||||||

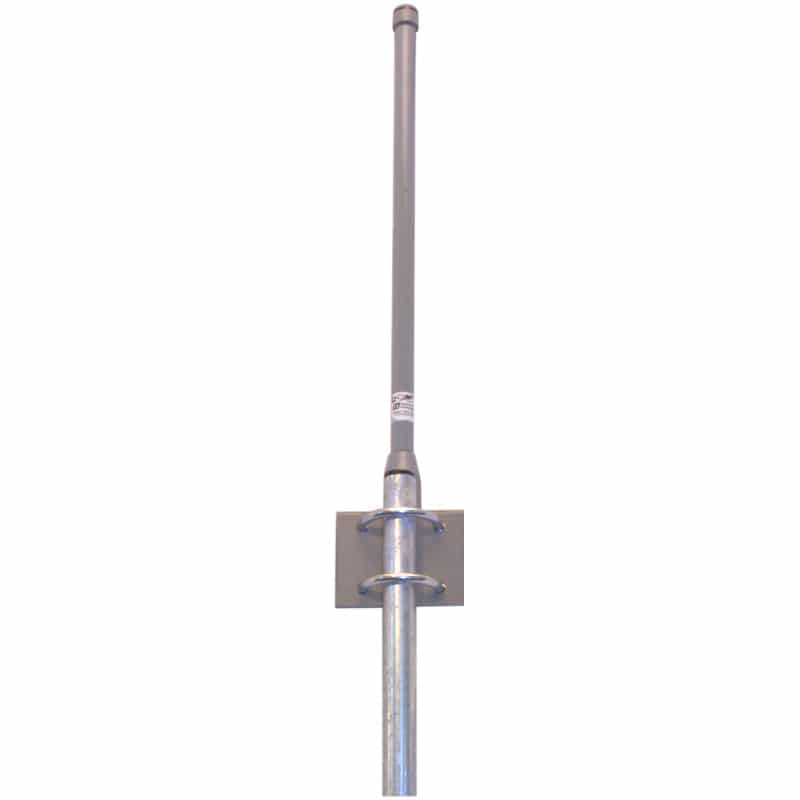

ZB-ANT-08 | Outdoor 8dBi Omni Directional Monopole Antenna with Pole Mounting Bracket. | $267.00 | |||||||||
ZB-ANT-14 | Outdoor 14.5dBi Directional Yagi Antenna with Pole Mounting Bracket. | $209.00 | |||||||||

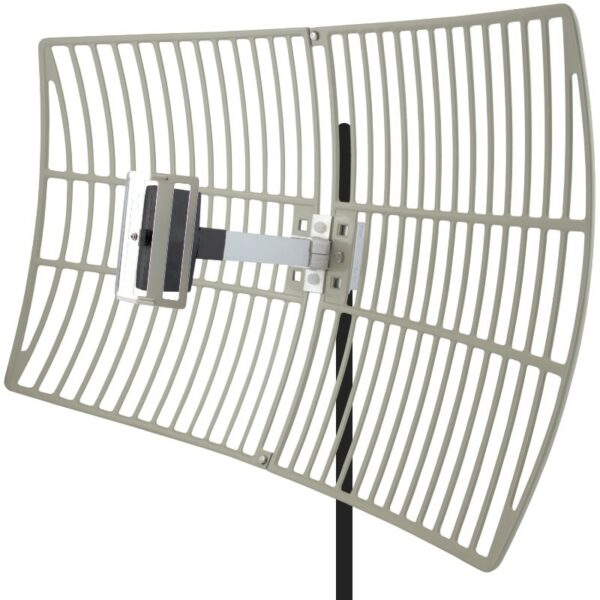

ZB-ANT-19 | Outdoor 19dBi Directional Parabolic Grid Antenna with Pole Mounting Bracket. | $159.00 | |||||||||
ZB-P-38 | 6m SMA to N-Male Coax Cable for Outdoor Antenna Connections. | $59.00 | |||||||||
ZB-TAPE | Coax Mouldable Sealing Tape to Keep Outdoor Antenna Connections Weather-Proof. | $15.00 | |||||||||
