Dual Temperature - thermocouple (does not include probe). One internal and one external temperature sensor.

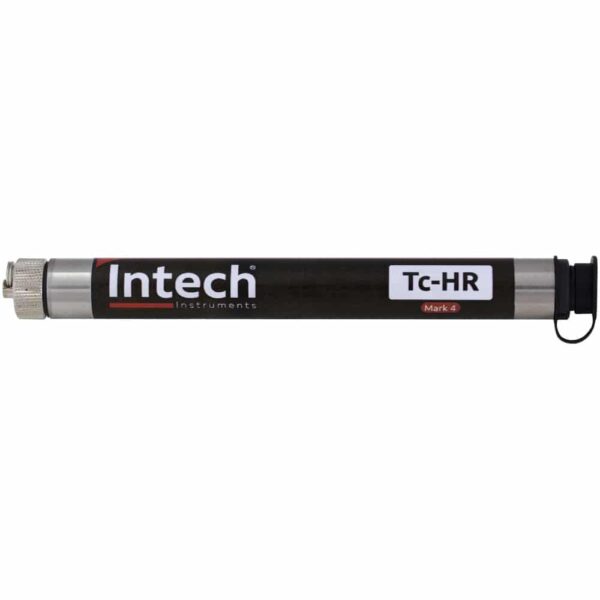

The Tc-HR is a small Two Channel High Resolution (16 bit) Temperature data logger housed in a rugged 304 stainless steel case. The logger connects to an external Thermocouple probe and also has an internal temperature sensor for convenient logging of ambient temperature if desired.
Logging can be configured to: start on time, immediate start, stop when full, loop around (overwrite oldest data).
A DLC3USB [USB] download cable (2m) is required to connect the Tc-HR to a computer.
| TYPE | Tc-HR | ||||||||||||||||||||||||
| Thermocouple Input: | External Sensor Connector | 2 pin Switchcraft Plug (EN3C2M) Weatherproof; IP66 |
|||||||||||||||||||||||
| Pinout | 1 Positive 2 Negative |
||||||||||||||||||||||||
| Temperature Coefficient | ±0.1% per ºC of logger Temperature | ||||||||||||||||||||||||
| Temperature Range |
|
||||||||||||||||||||||||
| Accuracy |
|
||||||||||||||||||||||||
| This is the logger accuracy only and does not include inaccuracies in the particular thermocouple probe used. | |||||||||||||||||||||||||
| Resolution | ±0.1ºC | ||||||||||||||||||||||||
| The thermocouple input can also be used as a -50mV to +50mV DC input. | Resolution | 0.01mV | |||||||||||||||||||||||
| Accuracy | ±0.02mV | ||||||||||||||||||||||||
| Internal Temperature: | Sensor Type | Thermister | |||||||||||||||||||||||
| Linear accuracy over range | ±0.3ºC (0ºC to 70ºC) | ||||||||||||||||||||||||
| Repeatability | ±0.1ºC | ||||||||||||||||||||||||
| Long term stability | ±0.1ºC | ||||||||||||||||||||||||
| Logger: | Working Temperature | -30ºC to +70ºC | |||||||||||||||||||||||
| Storage Temperature | -30ºC to +70ºC | ||||||||||||||||||||||||
| Sampling Rate | 1 second minimum, 10 hours maximum; in 1 second intervals | ||||||||||||||||||||||||
| Storage capacity | 522,240 samples logging thermocouple only 362 days with 1min logging interval; 4.9 years with 5min logging interval |
||||||||||||||||||||||||
| Alarms | Two independent Alarms Triggered on any combination of six user configurable Alarm Conditions Both alarms can be configured to send SMS messages Alarms can be visually checked using the Omni7 Software |
||||||||||||||||||||||||
| Start modes | Start immediately / Start on date/time / Start on condition (e.g. temperature > 20ºC) |
||||||||||||||||||||||||
| Stop modes | Stop when memory is full / Stop on date/time / Loop around (continues logging) |
||||||||||||||||||||||||
| Logging modes | Each channel can be set to log any combination of: – Point readings – Maximum reading – Average reading – Minimum reading |
||||||||||||||||||||||||
| Warning: When using the Average, Maximum or Minimum reading(s), the logger reads the attached sensor(s) every second. This will reduce battery life. | |||||||||||||||||||||||||
| Battery | One to Five year life depending on usage as above Using the logger in temperatures below -5°C (23°F) will reduce battery life One TruTrack 7.2V lithium cell; User Replaceable The data is retained in the case of battery failure Battery Status Monitor in Omni7 software |
||||||||||||||||||||||||
| Download time | 9 minutes 30 seconds for Full Logger | ||||||||||||||||||||||||
| Case material | 304 Stainless tube | ||||||||||||||||||||||||
| Screw on end cap | Plated brass | ||||||||||||||||||||||||
| Weight | 140g | ||||||||||||||||||||||||
| Size | 20mm diameter X 180mm long | ||||||||||||||||||||||||
A DLC3USB [USB] download cable (2m) is required to connect the Tc-HR to a computer.
Learn about Omni7 Software for Data Loggers.
Download Omni7 Software for Data Loggers.
A DLC3USB [USB] download cable (2m) is required to connect the Tc-HR to a computer.
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tc-HR | Dual Temperature, Thermocouple Datalogger (Does not include Thermocouple probe) | $486.00 | |||||||||
| HHT-03 | 3.2mm x 100mm, Type K, 900mm PVC, SS, -30~300°C, Mini-spear probe. | $62.00 | |||||||||

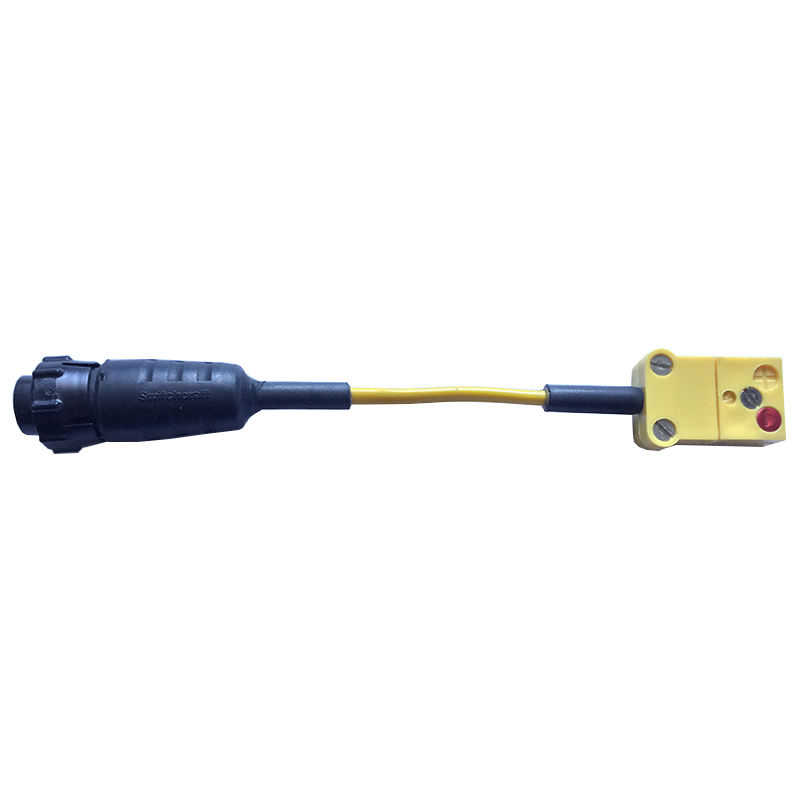

| Tc-HR Plug Set | 70mm lead (Specify thermocouple type). Includes Switchcraft plug (logger end) and Mini jack (connects to T/c Mini plug). | $50.00 | |||||||||
| DLC3USB-26 | USB Download cable HR Series | $130.00 | |||||||||
Mini plugs are also available on request.
All prices are in NZ$, and GST exclusive and are subject to change without notice.Not sure what you need? Ask us anything!
