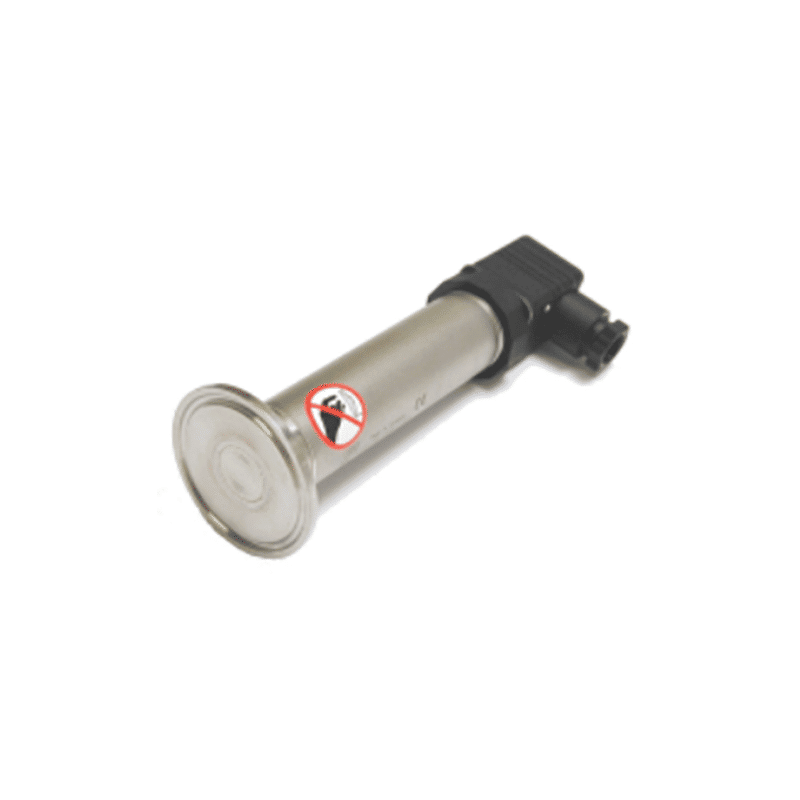

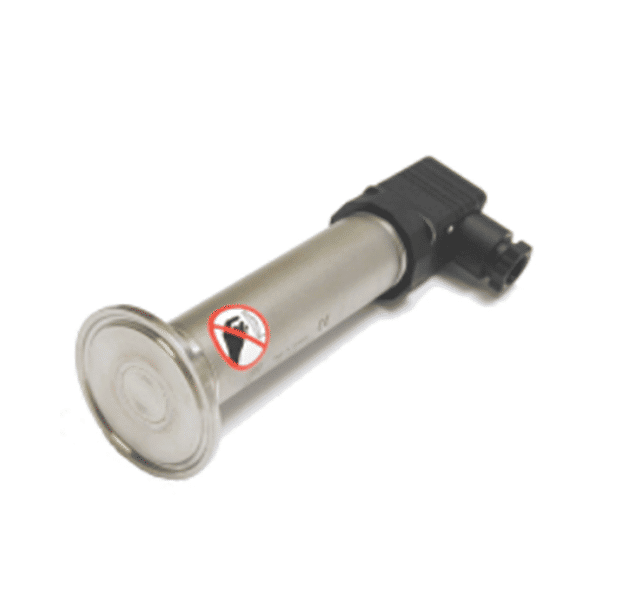

Jumo dTRANS P30 Pressure Transmitter with 1½'' Triclover
Jumo dTRANS P30 Pressure Transmitter with 3/4" BSP Front Flush
Jumo dTRANS P30 Pressure Transmitter with 1/2" BSP

Jumo P30 – Pressure Transmitter (404366)

Brand:

$0.00 Excl. GST

Select Process Connection Type*

Select Range (504) *

Select Range (571) *

Electrical Connection *

Select Range *

Select Range *

Optional Accessories

Total: $0.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The Jumo dTRANS p30 records the pressure of liquid and gaseous media according to the piezo-resistive or a thin-film strain gauge measuring principle. The value is then converted into an electrical signal. The transmitter is suitable for universal use.

Jumo P30 Features:

  • Pressure transmitter: 2 wire, loop powered
  • Protection: IP65
  • Wetted parts: Stainless steel
  • Mounting position: Unrestricted
  • Temperature: Medium, -30~125°C / Ambient, -20~100°C
  • Output: 4~20mA. 2 wire, loop powered
  • Ranges in gauge pressure from -1~600 bar
  • Process connections: ¾”BSP, ½” BSP or 1 ½” Triclover
  • M12 Electrical connection available (IP67)
  • Absolute pressure on request and Indent only
