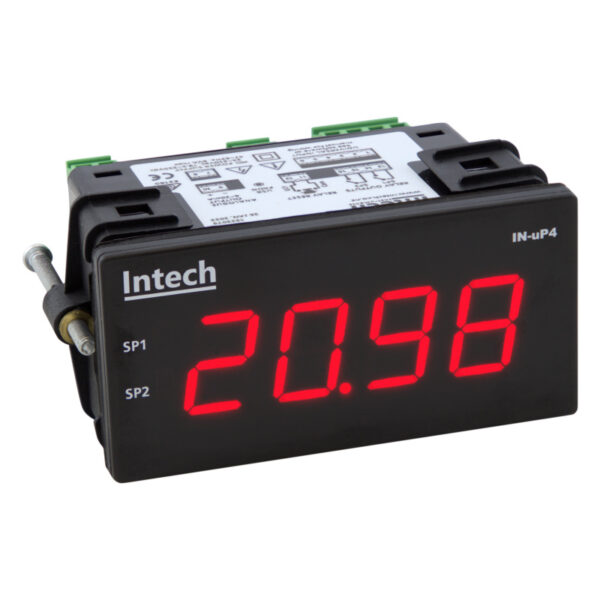

Intech IN-uP4 Universal Input Indicator
Intech XU-USB Programming Cable

IN-uP4 – Universal Input Indicator

Brand:

$312.00 Excl. GST

Select Model*

Universal Power Supply of 24~250Vac / 19.5~250Vdc

Optional Accessory

Used with uP Configure software to program

Total: $312.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

The IN-uP4 is a universal single input indicator, which makes interface with a wide range of sensors easy.

The IN-uP4 has a 4-digit LED display. An option to add two relay outputs (with two setpoint indicator LED’s), and one 4~20mA analogue output is available. The indicator (Rev 1) has a Universal Power Supply of 24~250Vac / 19.5~250Vdc.

Setup and calibration is simple, using ‘uP Configure’ software, with step-by-step instructions.

IN-uP4 Features

  • Universal Input with Indication
  • Panel Mount
  • Programmable via USB Port using XU-USB
  • Simple setup and calibration
  • 4-digit LED Display
  • Option to add Two Relay Outputs (with two setpoint indicator LED’s), and One 4~20mA Analogue Output
  • Universal Power Supply of 24~250Vac / 19.5~250Vdc
  • Sensor Power Supply (22Vdc 50mA max)
  • Dimensions: H=48mm, W=95mm, D=84mm
  • IP65
  • Low Cost

Technical Specs

Input Specifications:
 Excitation - Sensor Power Supply+22Vdc ±10%, 25mA max.
    Accuracy/Repeatability0.05% of FSO.
    Temperature Drift30ppm/°C typical.
 Voltage Input Specifications:
    mV Range-200mV~200mV.
    V Range0~1V, 0~10V, -10~30V, 0~300V.
    Minimum Input resistance1MΩ.
    Linearity and Repeatability<±0.02% FSO typical.
    Response Time100msec.
    USB Programmable Zero0~±99% of the Span.
   USB Programmable Span95% of FSO.
Current Input Specifications:
    mA Range0~20mA (4~20mA).
    Input Resistance10Ω.
    Maximum Over-range50mAdc Continuous.
    Linearity and Repeatability<±0.02% FSO typical.
    Response Time100msec.
    USB Programmable Zero0~±99% of the Span.
    USB Programmable Span1µA~24mAdc.
Thermocouple Input Specifications:
    Thermocouple TypesB, E, J, K, N, R, S, T.
    Input Impedance1MΩ Minimum.
    T/C Lead Resistance100Ω Maximum.
    Cold Junction Compensation-10~70°C.
    AccuracyE, J, K, N, T <±1°C.

B, R, S <±2°C.
    Temperature DriftE, J, K, N, T <±0.05°C.
B, R, S <±0.2°C.
CJC Error <±2°C.
    Sensor FailUpscale or Downscale Selectable (Upscale Default).
    Response Time400msec.
    USB Programmable Zero0~±99% of the Span.
    USB Programmable SpanWithin Thermocouple Type limits.
RTD Input Specifications:
    RTD InputPt100 or Pt1000 DIN 3-wire Type.
(2-wire can be used with offset calibration.)
    Sensor Current0.3mA Nominal.
    Lead Wire ResistancePt100: 10Ω/wire Maximum.
Pt1000: 5Ω/wire Maximum.
0.02% FSO Offset Error per Ω of Lead Resistance.
Sensor Fail Upscale or Downscale Selectable (Upscale Default).
    Linearity (Pt100)0.02% FSO for Span Inputs ≤200°C. 0.1% FSO for Span Inputs ≤300°C.
    Linearity (Pt1000)0.02% FSO for Span Inputs ≤200°C. 0.2% FSO for Span Inputs ≤300°C.
    Response Time400msec.
    USB Programmable Zero0~±99% of the Span.
    USB Programmable SpanWithin Thermocouple Type limits.
NTC Thermistor Input Specifications:
    NTC Sensor Types10K (Beta 3984)   -55~125°C.
10K (Beta 3435)   -50~110°C.
    Response Time100msec.
Pulse & Frequency Input Specifications:
    Input TypeOpen Contact: NPN, 24Vdc Max.
PNP, 5Vdc Max.
    Frequency Range0~2000Hz.
    Response Time100msec.
    Software ModesGeneral Frequency, Flow Rate or RPM.
Potentiometer Input Specifications:
    Potentiometer input3-wire.
    Excitation voltageVariable.
    Field programmable zero0~90% of span.
    Potentiometer resistance<1kΩ low pot; 1~4kΩ med pot; 4~20kΩ high pot.
    Field programmable span0.1~100%.
    Linearity and repeatability<±0.05% FSO typical.
    Response time100msec.
Output Specifications:IN-uP4X only.
    Analogue Output:Isolated.
        mA Range4~20mA or 20~4mA.
        Resolution1µA.
        Output Drive600Ω at 12Vdc.
    Relay Outputs:2 Isolated Relays with LED indication on each output.
        Functions2 on Board Controllers can be used as Set Point (SV), Switching Differential,
Auto/Manual, Manual Output Setting, Dual Action Control, Single Action Control,
Heat/Cool, Cool Only, Heat Only.
        Relay Ratings250Vac, 3A Max.
General Specifications:
    Power Supply:24~250Vac / 19.5~250Vdc (47-63Hz, 6VA max).
    Safety Compliance:
        EMC EmissionsEN 61326.
        EMC ImmunityEN 61326.
        SafetyEN 61010-1.
    General Specifications:
        Accurate to<±0.03% FSO typical.
        Ambient drift<±0.003%/°C FSO typical.
        EMC Influence<0.2% of full scale range.
        Noise Immunity125dB CMRR average (2.0KVdc limit).
        Operating Humidity5~85%RH max (non-condensing).
        Operating Temperature-10~50°C.
        Storage Temperature-20~60°C.
        Indicator Housing:IP65.
            DimensionsH=48mm, W=95mm, D=84mm.
Allow 80mm minimum behind panel for connectors and wiring.
            Panel CutoutH=45mm, W=92mm.

Software

Smart, simple software to program your uP4 products



Download uP Configure Programming Software

uP Configure - Intech Instruments

Note: Requires the XU-USB programming key

Use uP Configure software to program:

uP4 Configure offers a simple interface for connecting to your compatible device, and a range of flexible configuration options, including an extensive library of pre-calibrated ranges and linearization tables for advanced scaling.
