Shimaden SR90 Series - Digital Controllers

Click to enlarge

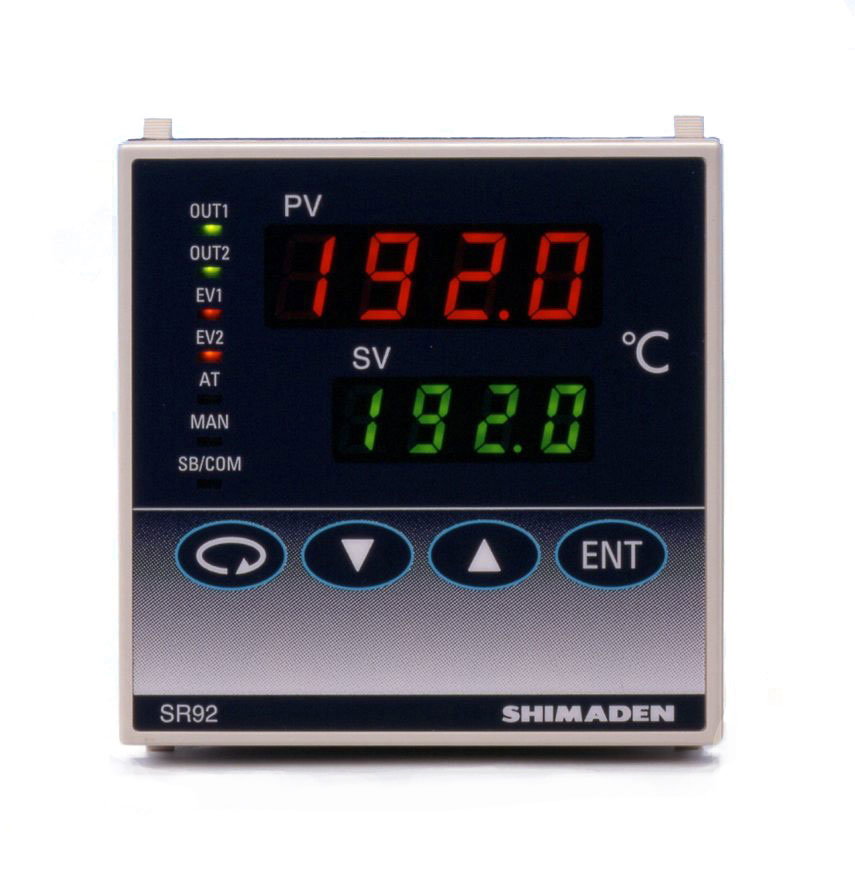

SR92 – 72 x 72 Digital Controller

Name: SR92
Brand: Shimaden
SKU: 9952
Price: 408.00 NZD
Availability: InStock

Brand: Shimaden

$408.00 Excl. GST

Input *

8 - Multi input (T/C, RTD, mV) | SR92-8
4 - Current (mA) | SR92-4
6 - Voltage (V) | SR92-6

Control Output 1 *

Y -Contact: 1a. | Y
I - Current: 4~20mA | I
P- SSR drive voltage: 12V | P
V- Voltage: 0~10V | V

Power Supply *

90 - 100~240Vac | 90

Total: $408.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Add to wishlist

Request a quote

Send Enquiry

Product Details

Description

The SR90 series are low cost, high featured controllers. With ±0.3% accuracy and a list of options including selectable input, second control output for Heat cool control, Auto / Manual, RS232/485 Communications, selectable event outputs, analogue retransmission output and 240Vac or 24Vac/dc power supply.

The SR90 series is extremely versatile which makes it suitable for a wide range of applications.

Download the PDF brochure for detailed information or give us a call, our friendly sales staff would be pleased to discuss your application and the SR90 series controllers with you.

Newly added features under the new specifications of the SR90 series (Ver. 1.42):

1. STBY function is newly introduced. PV display will switch between PV/STBY when STBY is activated. Indication of PV value at PV mode. Indication of STBY letters at STBY mode ON/OFF switching function for EV output is newly introduced under STBY mode.

2. DI allocation function is newly introduced. SB/STBY are selectable.

3. Modbus ASCII/RTU communication functions are newly introduced.

4. Kelvin range is newly introduced.
K 10.0~350.0K
AuFe-Cr 0.0~350.0K
K 10~350K
AuFe-Cr 0~350K

Technical Specs

General specifications SR92
Data storage	Non-volatile memory (EEPROM)
Environmental conditions for instrument operation
Temperature	−10~50°C
Humidity	90% RH or less (no dew condensation)
Height	2000m from the sea level or lower
Category	II
Degree of pollution	2
Storage temperature	−20~65°C
Supply voltage	Either 100-240V AC±10% 50/60Hz or 24V AC/DC±10% to be designated.
Power consumption	SR92: 100-240VAC 15VA maximum for AC; 8W for DC 24V; 9VA for AC 24V
Input/noise removal ratio	50 dB or higher in normal mode (50/60 Hz) 130 dB or higher in common mode (50/60 Hz)
Applicable standards	Safety: IEC1010 and EN61010-1
EMC	EN61326
Insulation resistance	Between input/output terminals and power terminal 500V DC 20MOhms or above; Between input/output terminals and protective conductor terminal 500V DC 20MOhms or above
Dielectric strength	Between input/output terminals and power terminal 2300V AC/minute; Between power terminal and protective conductor terminal 1500V AC/minute
Protective structure	Only front panel has dust-proof and dripproof structure equivalent to IP66.
Material of case	PPO resin molding (equivalent to UL94V-1)
External dimensions	SR92: H72 × W72 × D111 (Panel depth: 100) mm
Mounting	Push-in panel (one-touch mount)
Panel thickness	1.0~4.0 mm
Panel cutout	SR92: H68 × W68 mm
Weight	SR92: Approximately 280 g

Ordering Information

ITEM	CODE									SPECIFICATIONS
SERIES	SR92-									MPU-Based Auto-Tuning PID Digital Controller, DIN H72 x W72 x D110mm
INPUT		8	Multi input							Thermocouple: B, R, S, K, E, J, T, N, PLII, Wre5-26 {U, L (DIN 43710)} R.T.D.: Pt100 Ω /JPt100 Ω Voltage: -10~10, 0~10, 0~20, 0~50, 10~50, 0~100mV DC
		4								Current (mA): 0~20, 4~20mA DC Receiving impedance: 250 Ω	For voltage and current input:Scaling Possible Range: -1999~9999 Span: 10~5000 Note: Inverse scalingis not possible
		6								Voltage (V): -1~1, 0~1, 0~2, 0~5, 1~5, 0~10V DC
CONTROL OUTPUT (1)			Y-							Contact: 1a, Contact capacity: 240V AC 2A/resistive load Proportional cycle: 1~120 sec
			I-							Current: 4~20mA DC Load resistance: 600Ω max
			P-							SSR drive voltage: 12V±1.5V DC/30mA max Proportional cycle: 1~120 sec
			V-							Voltage: 0~10V DC Load current: 2mA max
CONTROL OUTPUT (2) (OPTION)				N-						None
				Y-						Contact: 1a, Contact capacity: 240V AC 2A/resistive load Proportional cycle: 1~120 sec
				I-						Current: 4~20mA DC Load resistance: 600Ω max (RA when shipped)
				P-						SSR drive voltage: 12V±1.5V DC/30mA max Proportional cycle: 1~120 sec
				V-						Voltage: 0~10V DC Load current: 2mA max
POWER SUPPLY					90-					100V~240V AC±10%, 50/60Hz
					08-					24V AC/DC±10%, 50/60Hz
EVENT OUTPUT/HEATER BREAK ALARM (OPTION)						0				None
						1				Event output (2a) Ev1, Ev2 Contact capacity: 240V AC 1A/resistive load	Note: Available only when control output (1) is Y or P is selected
						2				Event output (Ev1) + Heater break alarm (with CT30A)
						3				Event output (Ev1) + Heater break alarm (with CT50A)
ANALOG OUTPUT (OPTION)							0			None
							3			Voltage: 0~10mV DC, Output resistance: 10Ω
							4			Current: 4~20mA DC, Load resistance: 300Ω max
							6			Voltage: 0~10V DC, Load current: 2mA max
COMMUNICATION OR SV BIAS (OPTION)								0		None
								5		RS-485
								7		RS-232C
								8		1 point (setting range: -1999~5000), Non-voltage contact or Open collector input Open collector input rating: approx. 5V/1mA max
REMARKS									0	Without
									9	With (Please consult before ordering)
