Shimaden FP93 Programmable Ramp Controller
Click to enlarge

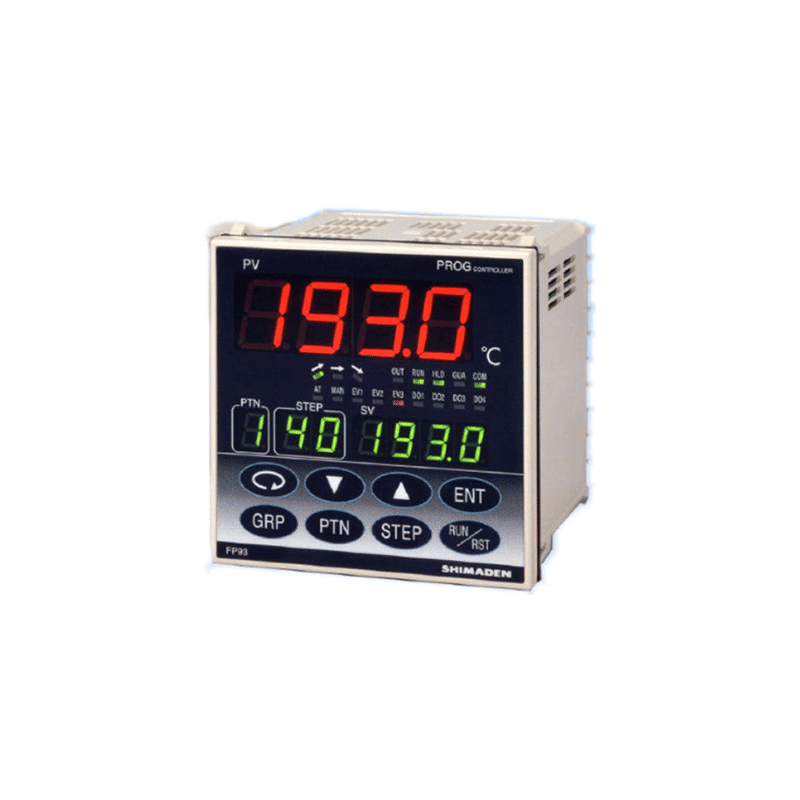

FP93 – Programmable Ramp Controller

Brand:

$0.00 Excl. GST

Model*

Please contact us for if you require a different set up.

Total: $0.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The FP93 is a controller that will run a set program of ramp and hold functions. There are 4 individual programs with 10 steps or 2 programs of 20 steps or 1 program of 40 steps that can be set. A large 20mm bright PV display protected by a IP66 front panel and optional RS232/485 communications compatible with the FREE Shimaden Lite software.

A wide range of optional extras is available, making this programmable controller one of the most versatile on the market—all at a highly competitive price.

FP93 Features

  • Autotuning controller with expert PID processing
  • Multi Inputs: Thermocouple, RTD, Current, Voltage
  • Outputs: Current, SSR drive, Voltage, Relay
  • Remote setting: analogue or digital
  • Timer functions
  • Ramp control, 16 steps per pattern
  • Run/RST, Adv, Hld, Fix, and External start pattern select by DI Input
  • 4, 2 or 1 Patterns (16, 32 and 64 steps respectively)
  • Communicates with MicroScan SCADA and Shimaden Lite software
  • High and low alarms
  • Event output, Heater break alarm
  • Programmable controller with a bright, easy-to-see large LED display.
  • Can be set at program pattern number: maximum 4 patterns, program step number: maximum 40 steps.
  • Suitable for multi-input of thermocouple, RTD and voltage.
  • 3-point event output is a standard feature.
  • 4-point external control input is a standard feature.
  • A dustproof and drip-proof structure suitable for IP66.

Ordering Information

ITEMS  CODE     SPECIFICATIONS
SERIES FP93-  96×96 DIN size Program controller (External control input 4 points, event output 3 points – standard)
INPUT 8 Multi Thermocouple B, R, S, K, E, J, T, N, PLII, Wre5-26, U, L
R.T.D Pt100, JPt100
Voltage mV: −10~10, 0~10, 0~20, 0~50, 10~50, 0~100mV DC Scaling possibleRange: −1999~9999Span: 10~5000
V : −1~1, 0~1, 0~2, 0~5, 1~5, 0~10V DC
4 Current 4~20, 0~20mA DC (equipped with external 250Ω shunt resistor)
CONTROL OUTPUT Y- Contact 1c Contact capacity: 240AC 2.5A/resistive load Proportional cycle: 1~120 seconds
I- Current 4~20mA DC Load Resistance: 600Ω max.
P- SSR drive voltage 12V ±1.5V DC 30mA max. Proportional cycle:1~120 seconds
V- Voltage 0~10V DC Load current: 2mA max.
POWER SUPPLY 90- 100~240V AC ±10% 50/60Hz
08- 24V AC/DC ±10%    50/60Hz
STATUS OUTPUT (DO) (OPTION) 0 None
1 Open collector darlington output Rating: 24 V DC max. 20mA
ANALOG OUTPUT (OPTION) 0 None
3 Voltage: 0~10mV DC Output resistance: 10Ω
4 Current: 4~20mA DC Load resistance: 300Ω max.
6 Voltage: 0~10V DC Load current: 2mA max.
COMMUNICATION FUNCTION (OPTION) 0 None
5 RS-485 Connectable instruments: up to 31 (Depending on condition)
7 RS-232C Connectable instruments: 1
REMARKS 0 Without
9 With (Please consult before ordering.)

Software

FP93 Controllers are Shimaden Lite Software Compatible – Software Available “Free”

Download Shimaden Lite Software here
