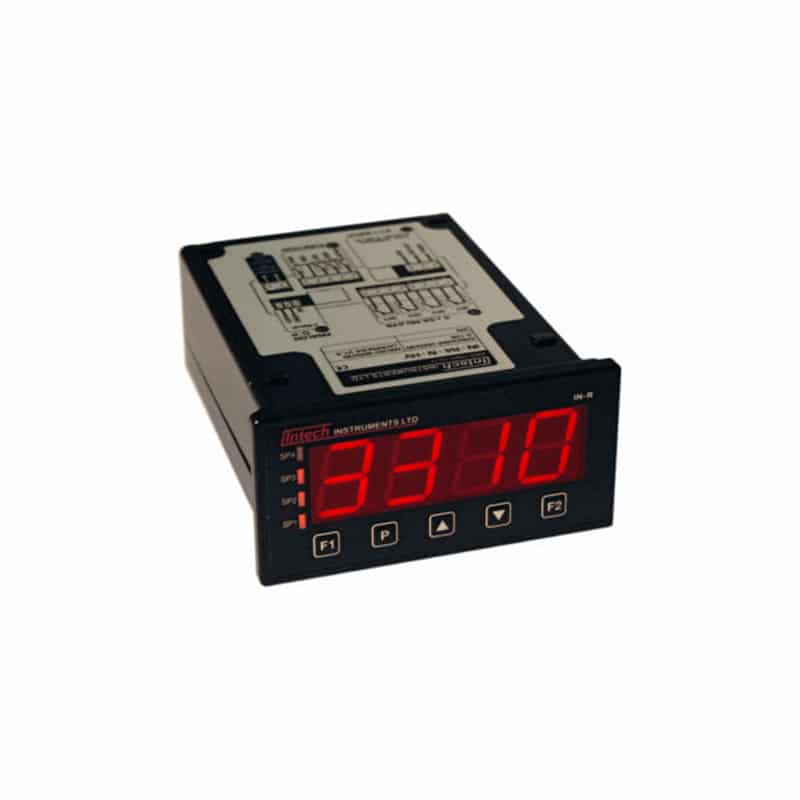

IN-R – Large Display Tachometer Indicator

Brand:

$472.00 Excl. GST

Relay Outputs*

Analogue Output*

Power Supply*

Total: $472.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The IN-R is a technically advanced but cost effective microprocessor-based indicator designed specifically for use in tachometer applications.

Options for up to four relay outputs make it ideal for stand-alone control or as a PLC interface. Intuitive scrolling text menus, (activated from the front panel), guide you step by step through the setup and calibration process, and the large 4-digit display ensures that the figures can be easily read from a distance.

IN-R Features

  • Large 4 Digit LED Display.
  • Microprocessor Based for Wide Range Calibration.
  • Inputs: 0~30V, magnetic pickup, NPN, PNP, TTL, Namur.
  • 4 Set Points with delay.
  • 4 LED’s for Alarm indication.
  • Analogue Output Retransmission option.
  • Simple setup and calibration.
  • On Screen Step by Step Instructions.
  • 5 Buttons for easy Operator Interface.
  • Wide Range of Power Supply options from 10V to 265V.
  • Excitation supply 24Vdc.

Technical Specs

TYPE IN-R
Easy setup Scrolling text prompts for intuitive, easy setup
Security  Calibration and set-point functions have independent security code access
(direct access to set-point activation values is independently configurable)
Input signal 0~24Vdc or 0~30Vac.
Selectable sensor type: Logic (Open collector (NPN/PNP), Namur, TTL) or magnetic pickup (Tacho).
Pulses per revolution User selectable from 1 to 9999 pulses per revolution
Measurement range 1~99990RPM (1ppr sensor) to 0.1~99990RPM (10ppr sensor)
Display resolution 0.1RPM, 1RPM or 10RPM (displayed as RPM/1000)
Input noise filtering Selectable low pass filter options: Off, 200Hz, 2kHz or 20kHz
Power supply HV: 85~265Vac / 95~370Vdc or LV: 15~48Vac / 10~72Vdc
Sampling rate Nominally 3Hz (low RPM mode=Off)
Accuracy0.1RPM
Temperature drift Typically 30ppm/°C
CalibrationFactory calibrated
Relay outputs 2 or 4 x programmable relay outputs with hysteresis and delay on make
LED indicators4x LED annunciators for alarms and relay status indication
Case48mm x 96mm x 119.5mm (H x W x D) / 45.5mm x 92.5mm panel cutout

Ordering Information

ITEMS   CODE  DESCRIPTION
SERIES IN-R- Large display Tachometer Indicator
RELAY OUTPUTS N- None
R2- 2x 5A relay outputs
R4- 4x 5A relay outputs
ANALOG OUTPUT N- None
A- 1x 4~20mA / 0~10V analogue output
POWER SUPPLY HV 85~265Vac / 95~370Vdc
LV 15~48Vac / 10~72Vdc
