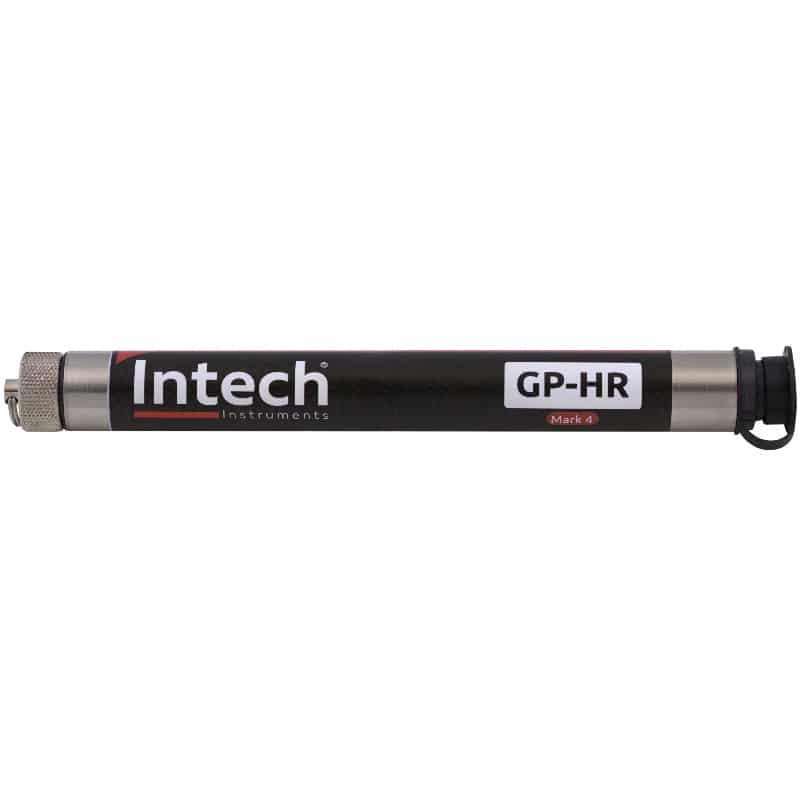

The GP-HR is a small High Resolution (12 bit) multi purpose data logger housed in a rugged 19.05mm 304 stainless steel case, that can be configured to accept input from a wide variety of sources including:
- Voltage (DC)
- Current (DC) including 4~20mA
- Pressure Probes
- Flow Sensors
- Tipping Bucket Rain Gauges
- Solar Radiation Sensors
- Light Sensor
- Leaf Wetness Sensor
- Soil Water Tension Probes
- Wind Speed Probes
- Wind Direction Sensors
The GP-HR also has an internal temperature sensor for convenient logging of ambient temperature if desired. Logging can be configured to: start on time, immediate start, stop when full, loop around (overwrite oldest data).
The GP-HR (mark 4) features a storage capacity of over 1,000,000 8bit samples; or over 500,000 12bit samples, as well as a user replaceable battery!
GP-HR Probe Sets
|Probe Sets for the GP-HR Logger:|
|T1-PS||Single Temperature Probe|
|T2-PS||Dual Temperature Probes|
|T3-PS||Three Temperature Probes|
|HT-PS||Humidity & Temperature Probe|
|THT-PS||Humidity & Temperature Probe with additional Temperature Probe|

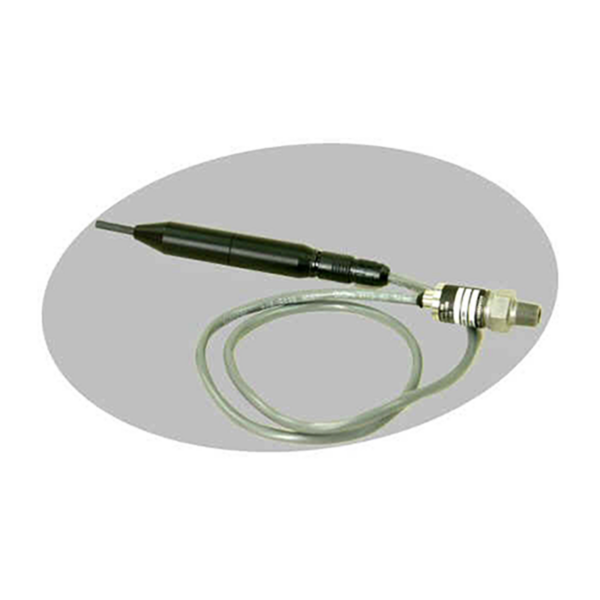

|PT-PS||Pressure & Temperature Probe|
|TPT-PS||Pressure & Temperature Probe with additional Temperature Probe|
|L-PS||Light / Solar Energy Probe|
|LT-PS||Light / Solar Energy Probe with additional Temperature Probe|
|R-PS||Tipping Bucket Rain Gauge adaptor cable|
|RT-PS||Tipping Bucket Rain Gauge adaptor cable with additional Temperature Probe|
|WS-PS||Wind Speed Anemometer|
|WST-PS||Wind Speed Anemometer with additional Temperature Probe|
|LW-PS||Leaf Wetness Sensor|
|LWT-PS||Leaf Wetness Sensor with additional Temperature Probe|

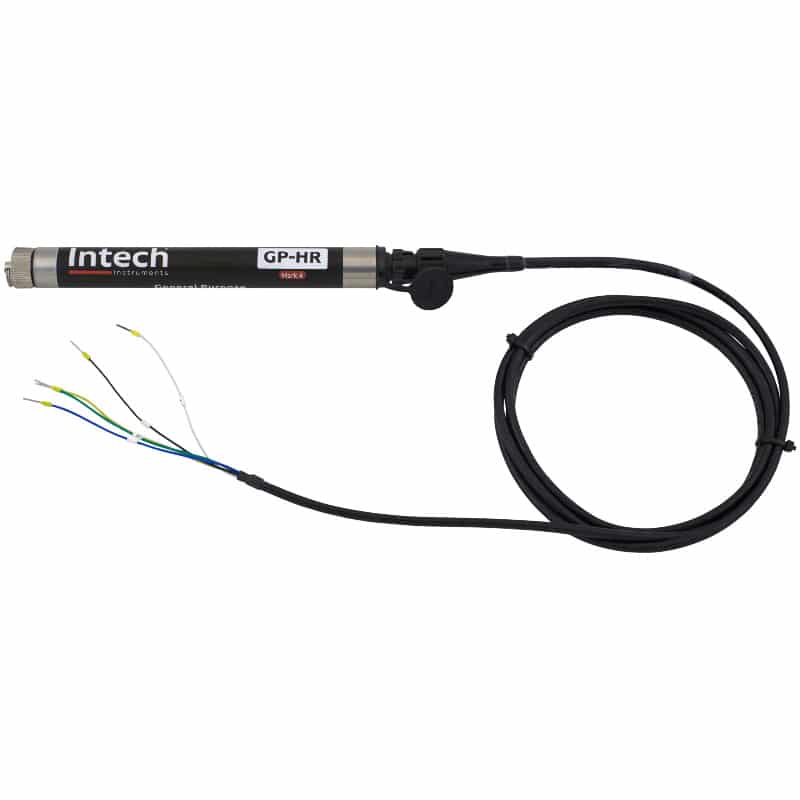

|mA1-PS||1 input 0 to 20mA adapter (can be used with 4 to 20mA sensors)|
|mA2-PS||2 input 0 to 20mA adapter (can be used with 4 to 20mA sensors)|
|mA3-PS||3 input 0 to 20mA adapter (can be used with 4 to 20mA sensors)|
|V3-PS||3 input voltage Divider|
* Logging Thermocouple inputs with the GP-HR:
A lot of people say thermocouple to mean temperature probes, where as if the temperature range they are measuring is between -50°C and +200°C, then RTD Pt1000 is more accurate and cheaper to implement than thermocouple. Thermocouples are ideal for high temperature ranges. The Pt3-PSprobe set has three RTD Pt1000 temperature probes, ranged at -50~130°C for use with the GP-HR.
The only way that the GP-HR can accept a thermocouple signal is via an intermediary transmitter like the XU Series with an output signal of 4~20mA. An mA#-PS adaptor cable for each input from the XU Series transmitter(s) to the GP-HR is also required (with the correct number of inputs [1~3]).

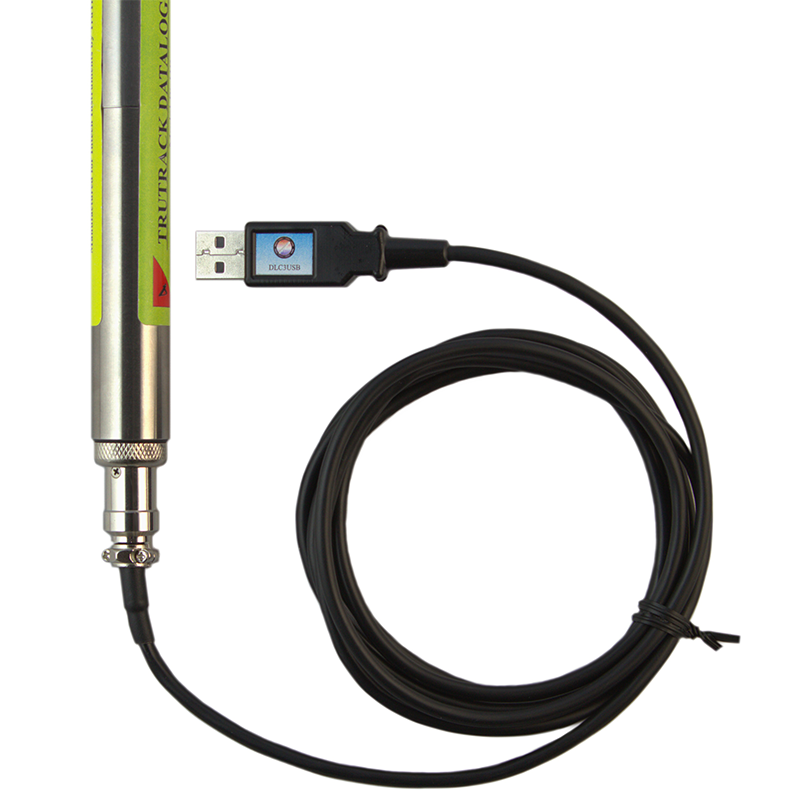

A DLC3USB [USB] download cable (2m) is required to connect the GP-HR to a computer.
