Home | Products | Pressure | Pressure Data loggers | GP-HR

GP-HR – General Purpose Data logger

General Purpose Four Channel Logger

general-purpose-data-logger-intech-gp_hr-logger
Pressure Sensor For GP-HR
general-purpose-data-logger-intech-gp_hr-with-ma3-cable

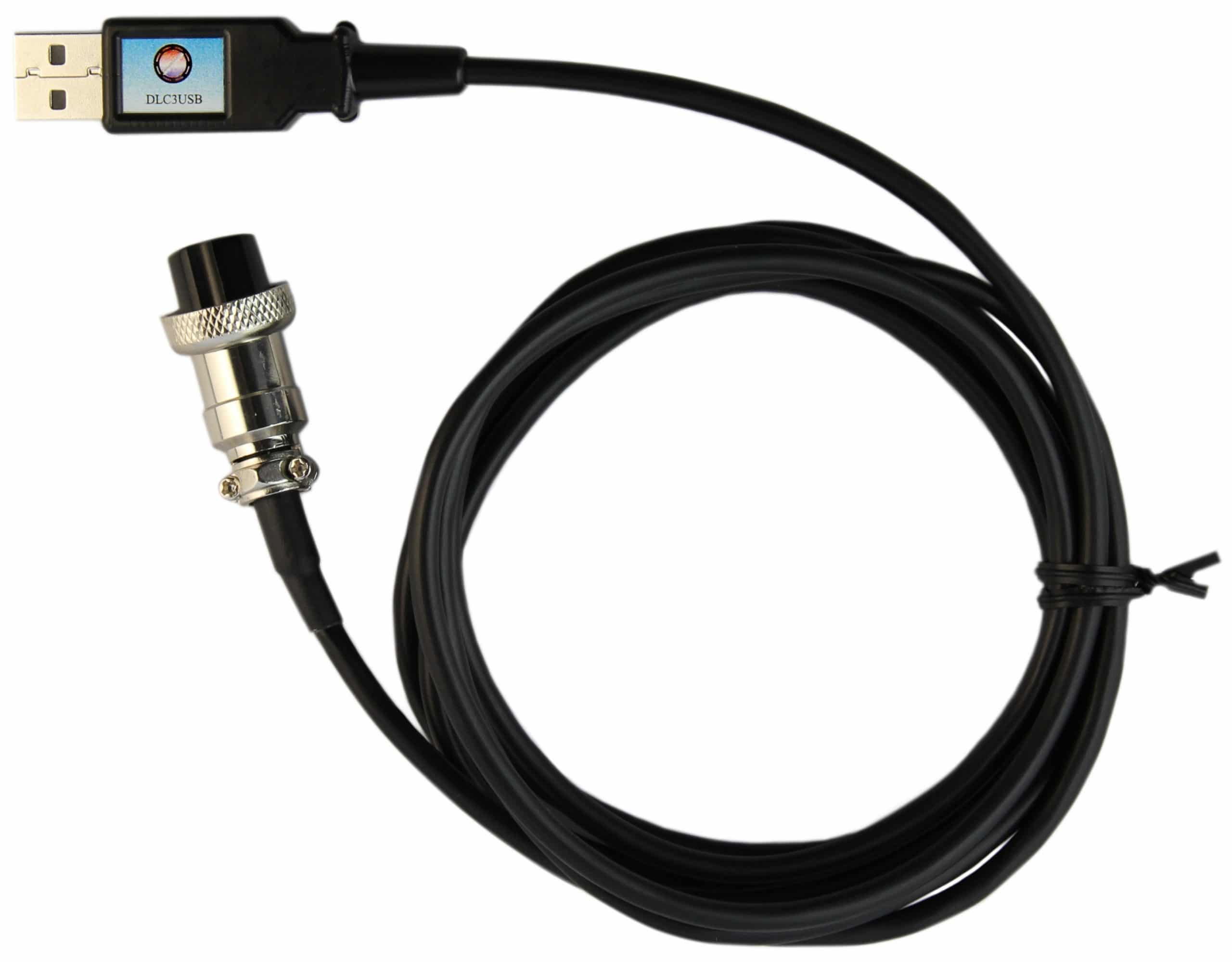

DLC3USB Download Cable

The GP-HR is a high resolution (12 bit) multi purpose data logger that can be configured to accept inputs from a wide variety of sources.

Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Software
  • Documents

The GP-HR is a small High Resolution (12 bit) multi purpose data logger housed in a rugged 19.05mm 304 stainless steel case, that can be configured to accept input from a wide variety of sources including:

  • Voltage (DC)
  • Current (DC) including 4~20mA
  • Pressure Probes
  • Flow Sensors
  • Frequency
  • Tipping Bucket Rain Gauges
  • Solar Radiation Sensors
  • Light Sensor
  • Leaf Wetness Sensor
  • Soil Water Tension Probes
  • Wind Speed Probes
  • Wind Direction Sensors

The GP-HR also has an internal temperature sensor for convenient logging of ambient temperature if desired. Logging can be configured to: start on time, immediate start, stop when full, loop around (overwrite oldest data).

The GP-HR (mark 4) features a storage capacity of over 1,000,000 8bit samples; or over 500,000 12bit samples, as well as a user replaceable battery!

Pressure Probe

The sensors are suitable for the measurement of liquid or gas pressure including difficult media such as contaminated water and mildly corrosive liquids or gasses. There are two pressure ranges available:

  • -15 to 100psi
  • -15 to 300psi

These are gage sensors so the back of the sensor is ported to the atmosphere. They should not be used if the back of the sensor will be under pressure or will experience high humidity.

Temperature Coefficient ±3% from 0ºC to 55ºC
Long term stability ±0.25% per year
Thread 1/8 inch NPT
Material 17-4 PH Stainless Steel
Working Temperature 20 to +85°C
Cable Length 1500mm

The sensors for the GP-HR plug into an amplifier cable that connects to the loggers. The cable on the sensor is 500mm long. The cable from the amplifier to the logger is 1000mm so the combined length of cable is 1500mm.

Any combination of the three analogue inputs of the GP-HR Logger can be configured to read Pressure when connected to the Pressure Probe. No other components are required.

GP-HR specifications
External Sensor Connector
Type 6 pin Switchcraft Plug (EN3C6M)
Weatherproof; IP66
Pinout 1- Switched Reference voltage
2- First Analogue Input
3- Second Analogue Input
4- Third Analogue Input
5- Fast Pulse Input
6- Common Ground
Three Analog Channels
To log any combination of Temperature Humidity Pressure
Light Solar Energy Wind Direction
Voltage (DC) Leaf Wetness Soil Moisture Tension
Energy Current (DC)
One Fast Pulse Digital Channel
To Log Rainfall Wind Speed Counter (up to 65535)
Flow Frequency (up to 60kHz)
Internal Temperature
Sensor Type Thermister
Linear accuracy over range ±0.3ºC (0ºC to 70ºC)
Repeatability ±0.1ºC
Long term stability ±0.1ºC
Logger
Working Temperature -30ºC to +70ºC
Storage Temperature -30ºC to +70ºC
Sampling Rate : 1 second minimum, 10 hours maximum; in 1 second intervals
Storage capacity 1,044,480 8 bit samples; 522,240 12 bit samples
Over 600 days logging 3 Hi Resolution Channels every 5 minutes
Alarms Two independent Alarms
Triggered on any combination of six user configurable Alarm Conditions
Both alarms can be configured to send SMS messages
Alarms can be visually checked using the Omni7 Software
Start modes Start immediately
Start on date/time
Stop modes Stop when memory is full
Stop on date/time
Loop around (continues logging)
Logging modes Each channel can be set to log any combination of Reading
-Point - Average - Maximum - Minimum
Warning: When using the Average, Maximum or Minimum reading(s), the logger reads the attached sensor(s) every second. This will reduce battery life.
Battery One to Five year life depending on usage as above
Using the logger in temperatures below -5°C (23°F) will reduce battery life
One 7.2Volt lithium cell; User Replaceable
The data is retained in the case of battery failure
Battery Status Monitor in Omni7 software
Download time 9 minutes, 30 seconds for Full Logger
Case material 304 Stainless tube
Screw on end cap Plated brass
Weight 150g
Size 20mm diameter X 180 mm long
A DLC3USB is required to connect the GP-HR to a computer

Learn about Omni7 Software for Data Loggers.

Download Omni7 Software for Data Loggers.

A DLC3USB [USB] download cable (2m) is required to connect the GP-HR to a computer.

  • Intech GP-HR General Purpose Data Logger - Data Sheet 128.90 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
GP-HR

GP-HR General Purpose Data Loggger

$500.00
P100-HR-PS

Pressure sensor. Range = -15~100psi (Overload 200psi, Burst 500psi), 1500mm cable, 1/4″NPT.

$575.00
P300-HR-PS

Pressure sensor. Range = -15~300psi (Overload 600psi, Burst 1500psi), 1500mm cable, 1/4″NPT.

$575.00
DLC3USB-2

USB Download Cable HR Series

$135.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
