FP23A – High Accuracy Programmable Controller

Best for controlling temperature over time such as in heat processing. Combined with remote input controller, can also be used for master slave control.

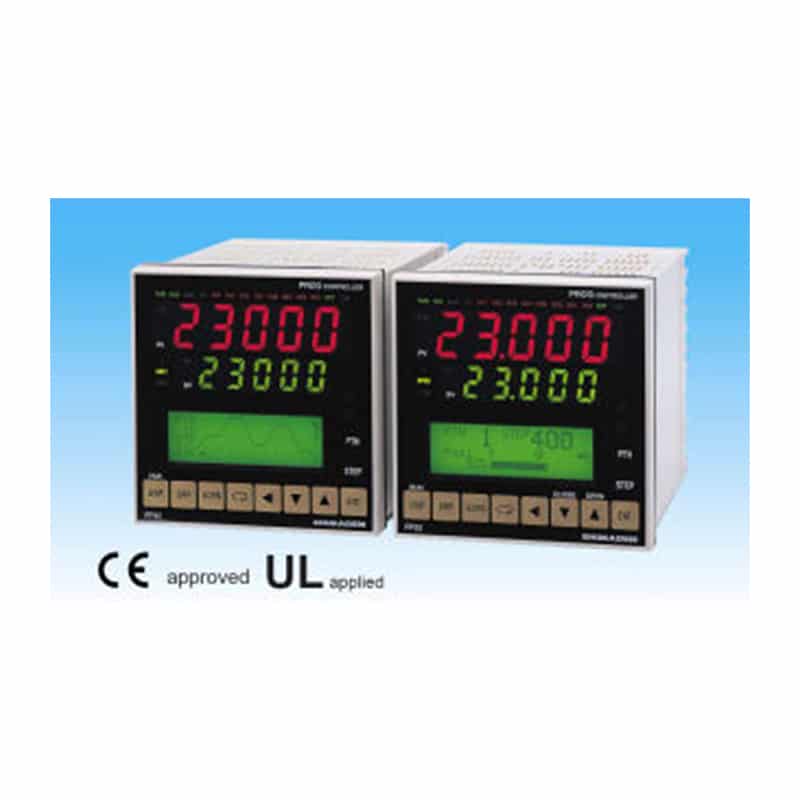

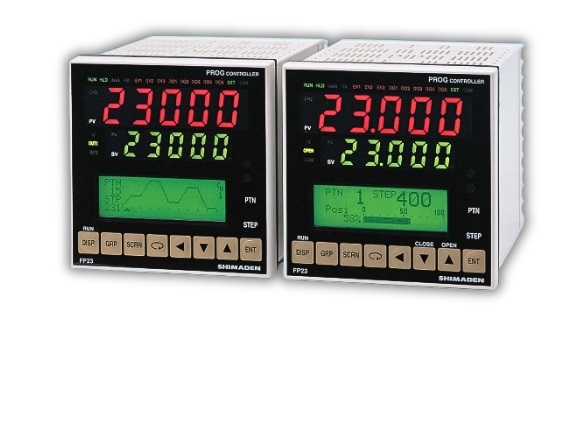

Shimaden FP23A

FP23A Features

  • 2-channel controller (Basic type: 1-channel controller)
  • Independent 2-loop / 2-input operation control
  • High accuracy ± (0.1% FS + 1 digit)
  • High Sampling Cycle 0.1 sec.
  • High resolution 1/ 1000 °C display achieved
  • *Only for R.T.D. input (scale: 0.000~30.000 °C)
  • Programmable Max. 400steps (400 steps x 1 pattern to 20 steps x 20 patterns)
  • Auto-Tuning PID / Expert PID
  • Max. 10 Zone PID control available
  • Independent Universal-Input
  • User Friendly Operation (Menu Driven: 4 Lines LCD Display)
  • Easy Setting & Maintenance via Infrared COM port on the front panel
  • Interface RS-232C/RS-485 (MODBUS / Shimaden)
  • The front dust/splash-proof IP66
  • Universal Power Supply (100~240V AC ±10%)
  • Sensor power supply option (24Vdc 25mA)
Brand: SHIMADEN
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Ordering Information
  • Software
  • Documents

A programmable controller capable of high resolution 1/1000°C display (RTD 0.000–30.000°C) which is suitable for high precision process.

  • Can select 2-input specification or servo output specification.
  • Can be set at program pattern number: maximum 20 patterns; program step number: maximum 400 steps.3-point event output is a standard feature.
  • 4-point external control input is a standard feature.
  • 3-point (Darlington), 2-point (open collector) external control output is a standard feature.
  • A dustproof and drip-proof structure suitable for IP66.
ITEM CODE SPECIFICATIONS
SERIES FP23A- 96 × 96 DIN size, high-performance programmable controller
BASIC FUNCTIONS SS Universal-input, 1-input/1-output control, 3 event outputs
CONTROL OUTPUT 1 Y Contact 1c, contact rating: 240V AC 2.5A/resistive load, 1A/inductive load
I Current 4 ~ 20mA DC, Load resistance: max. 600Ω
P SSR drive voltage output 12V±1.5V DC, Load current: max. 30mA
V Voltage 0 ~ 10V DC, Load current: max. 2mA
CONTROL OUTPUT 2 N- None
HEATER BREAK ALARM
(FOR SINGLE-PHASE)
00 None * Selectable only when
Control Output 1 is Y or P
31 Heater break alarm*
(heater current 30A with CT)
32 Heater break alarm*
(heater current 50A with CT)
ANALOG OUTPUT 1 0 None
 3 0 ~ 10mV DC, Output resistance: 10Ω
 4 4 ~ 20mA DC, Load resistance: max. 300Ω
6 0 ~ 10V DC, Load current: max. 2mA
ANALOG OUTPUT 2/SENSOR POWER SUPPLY 0 None
3 0 ~ 10mV DC, Output resistance: 10Ω
4 4 ~ 20mA DC, Load resistance: max. 300Ω
6 0 ~ 10V DC, Load current: max. 2mA
8 Sensor power supply 24V DC 25mA
standard  0 DI 4 points, DO 5 points (start pattern No. switching not available)
EXTERNAL INPUT/OUTPUT CONTROL SIGNAL(DI/DO) *1 1 DI 10 points, DO 9 points (start pattern No. switching available)
2 DI 10 points, DO 13 points (start pattern No. switching available)
COMMUNICATION FUNCTION 0 None
5 RS-485 Shimaden standard protocol / MODBUS (RTU/ASCII) communication protocol
7 RS-232C
REMARKS A Without
9 With

*1 When switching the start pattern No. by DI, 10 points of DI (CODE 1 or 2) are required.

FP23A Controllers are Shimaden Lite Software Compatible – Software Available “Free”

Download Shimaden Lite Software here

  • Shimaden FP23 High Accuracy Programmable Controller - Brochure 3.39 MB
  • Shimaden FP23 High Accuracy Programmable Controller - 1 Input - Instruction Manual 1.72 MB
  • Shimaden FP23 High Accuracy Programmable Controller - 1 Input Quick Reference 641.23 KB
  • Shimaden FP23 High Accuracy Programmable Controller - 2 Input Quick Reference 664.04 KB
  • Shimaden FP23 High Accuracy Programmable Controller - Instruction Manual Communication Interface 695.29 KB
  • Shimaden FP23 High Accuracy Programmable Controller - Instruction Manual Servo Output 1.79 MB
  • Shimaden FP23 High Accuracy Programmable Controller - Servo Output Quick Reference 570.35 KB
  • Shimaden FP23 High Accuracy Programmable Controller - 2 Input - Instruction Manual 1.73 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
FP23A-SSYN-000000A

High Accuracy Programmable Controller, Contact Control Output

$1,500.00
FP23A-SSYN-000005A

High Accuracy Programmable Controller, Contact Control Output, RS485

$1,580.00
FP23A-SSPN-000015A

High Accuracy Programmable Controller, SSR Control Output, External control DI 10 points/DO 9 points, RS485

$1,780.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Shimaden products. Please contact the Shimaden distributor in your country if you require sales or service support for Shimaden products.
