Home | Products | Controllers & Displays | Controllers | Servo Controllers | EM70

EM70 – 96 x 96mm Intelligent Servo Controller

Microprocessor based intelligent servo controller

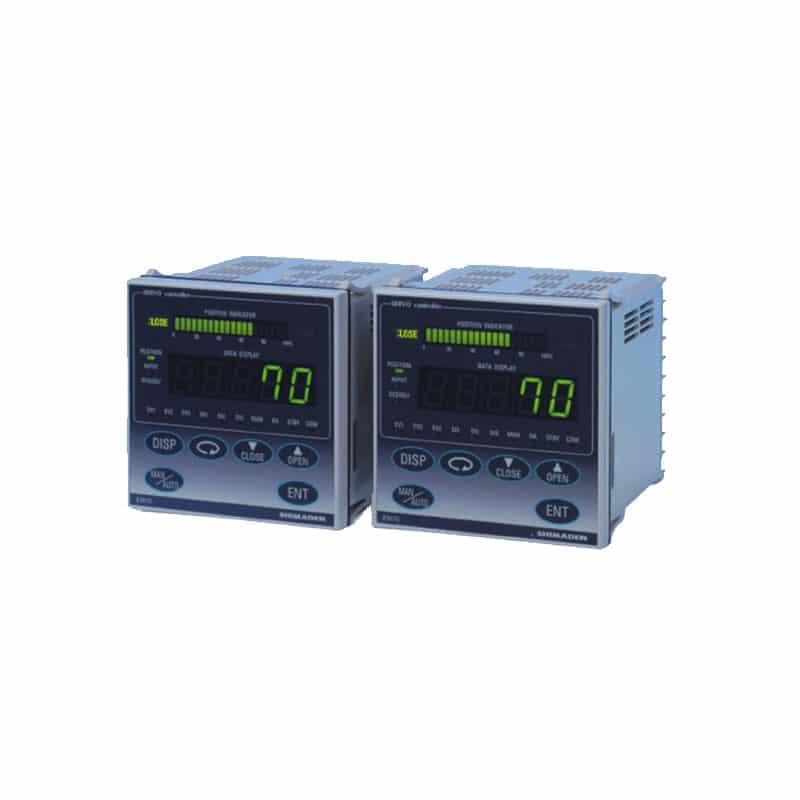

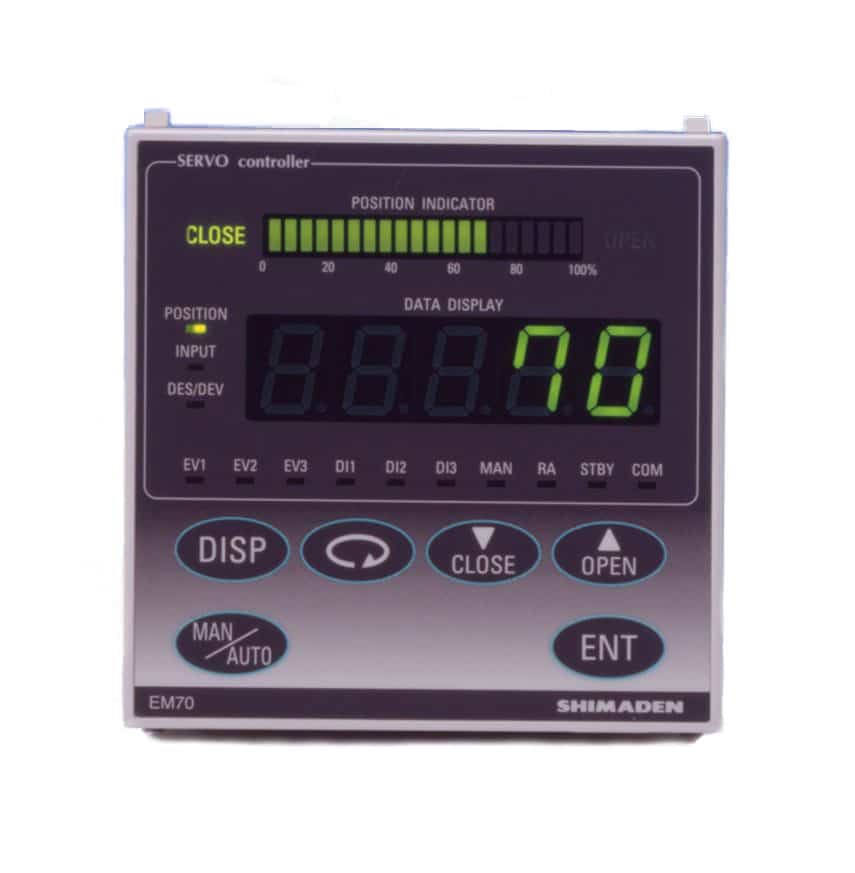

Shimaden EM70 Intelligent Servo Controller
Shimaden EM70 Intelligent Servo Controller

EM70 Features

  • High visibility of Control Motor opening display, which is shown in a bar graph (20 dots) and 7 segments
  • Zero/Span adjustment of opening can be done automatically at the touch of a single button
  • By means of the combination of SSR and relay, the drive unit can control directly large capacities (20-240V / 2A)
  • A wide selection of additional functions (optional) is available to suit various requirements (Events, analog output, external operation, square root extraction, communication function)
  • Dust and splash proof front panel equivalent to IP66
Brand: SHIMADEN
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Software
  • Documents

An embedded panel servo controller with 20-dot bar graph and digital display is featured.
For feedback resistance, a range from 100 Ω to 2 kΩ can be used. For output, relay contact or SSR and contact can be selected.
The potentiometer has a zero-span automatic adjustment function.
A 3-point external control input is a standard feature. A dustproof and drip-proof structure suitable for IP66.

TYPEEM70
Display
  * Position indicator
     1 – Output display color (LED bar graph) Green
     2 – Display resolution/dot5%/20 dots
  * Data display
     1 – Display digit/color5 digits/7 segments LED green display, Height of character: 14 mm
     2 – Display resolution1% (position, desired value of position), 0.1% (input)
     3 – Sampling cycle0.2 seconds
     4 – Display rangePosition and deviation: –10~110%, Input value: –10.0~110.0%
  * Status display11 kinds, LED lamps
Position display(POSITION)/Green
Input display (INPUT)/Green
Desired value of position/deviation display (DES/DEV)/Green
Manual action (MAN)/Green
Reverse action (RA)/Green
Opening action (OPEN)/Green
Closing action (CLOSE)/Green
External (DI) input (DI1, 2, 3)/Green
Event action (EV1, 2, 3)/Orange
Stand-by action (STBY)/Green
Communication status(COM)/Green
Control input
  * Current/receiving impedance4~20, 0~20 mA DC/100Ω
  * Voltage/input impedance1~5V, 0~5V, 0~10V DC/1MΩ
  * Input filter0~99 seconds
  * IsolationInsulated between control input and analog output (not insulated between control input and feedback potentiometer and DI input)
Setting
  * Setting systemBy key switches (6 keys) on front panel
  * Setting/selection item
      1 – Display switchingBy “DISP” key switch on front panel
     2 – Zero/span adjustmentProvided with Automatic adjustment function; manual adjustment is also possible (correction of potentiometer error)
     3 – Selection of control characteristicsDirect (DA)/reverse (RA)
     4 – Control characteristics gain settingInput values corresponding to 0% position and 100% position (scaling function) or position values corresponding to 0% input and 100% input (scaling function)
     5 – Position limiter settingHigher limit values 1~100%, Lower limit value 0~99% (higher limit>lower limit)
     6 – Setting of speed (inching)10~100% (Initial value: 100%, which means no inching) In the case of contact output, setting of speed is not possible.
     7 – Hysteresis1/4 of dead band. Fixed to 0.3% when dead band is less than 1.2% of input.
     8 – Dead band setting 0.2~10.0% of input signal (Intial value: 2.0%)
     9 – Keylock 3-stage lock
Feedback
  * Feedback potentiometer ratingSelectable between 100Ω and 2kΩ/three-wire type
Control output
  * Output typeContact 240V AC 2A
Combination of SSR and contact 240V AC 2A
External operation input (DI)
  * Number of points3 points (DI1, DI2 and DI3)
  * Operable items(1) Individual assignment to RA, STBY and preset position value is possible.
(2) Assignment to 7 preset position values by binary numerals is possible.
(3) Assignment to 3 preset position values and individual assignment to one of RA, STBY and preset position value is possible.
 *  OperationPut in action when non-voltage contact or open collector turns ON.
Event output (option)
  * Number of event points 3 points (EV1, EV2 and EV3)
  * TypesPotentiometer (higher limit, lower limit, hysteresis variable and stand-by action selectable), input (higher limit, lower limit, hysteresis variable and stand-by action selectable), operation, manual, potentiometer error, input error, and control loop trouble.
  * Output rating/structure240V AC 1A Resistive load/”a” contact
  * Action displayWhen EV1~EV3 are in action, orange lamp lights.
Analog output (option)
  * Number/type1 point, either position or control input to be selected with scaling functiion
  * Analog output/rating 4~20 mA FS/Load resistance 300Ω max.
  * Output accuracy ±0.5% FS max.
  * Isolation Insulated between analog output and control input and feedback potentiometer
Square root extraction (option)
 Position output control by square root extraction of input signals
Communication function (option)
  * Communication type RS-232C, RS-485
  * Communication system RS-232C 3-line type half duplex system & RS-485 2-line type half duplex system {RS-485 is of half-duplex multi-drop (bus) system}
  * Synchronization systemStart-stop synchronization system
  * Communication speed1200, 2400, 4800, 9600, 19200 bps
General specifications
  * Data storageNon-volatile memory
  * Ambient temp./humidity range–10~+50°C/90% RH or less (no dew condensation)
  * Storage temperature–20~+65°C
  * Power supply 100~240V AC±10% 50/60Hz
  * Power consumption13VA (240V AC)
  * Applicable standardsSafety: IEC1010-1 and EN61010-1/EMC: EN61326
  * Insulation resistanceBetween input/output terminals and power terminal: 500V DC 20MΩ min.
Between power terminal and ground terminal: 500V DC 20MΩ min.
  * Dielectric strengthBetween input/output terminals and power terminal: 2300V AC 1 minute
Between power terminal and ground terminal: 1500V AC 1 minute
  * Protective structureOnly front panel has dust-proof and drip-proof structure. (IP66 equivalent)
  * Material of casePPO resin molding (equivalent to UL 94 V-1)
  * External dimensionsH96 × W96 × D111 (Panel depth: 100) mm
  * Mounting/panel thicknessPush-in panel (one-touch mount)/1~4mm
  * Panel cutout/weight 92 × 92mm/approx. 460 g
Item Code Specifications
Series EM70 96×96 DIN size, Intelligent servo contoroller
Control Input 4 Current: 4~20 / 0~20mA DC Receiving impedance: 100Ω
6 Voltage: 1~5 / 0~5 / 0~10 V DC Input impedance: 1MΩ min.
Control Output Y- Contact 240V AC 2A Inductive Load
S- Combination of SSR and contact 240 V AC / 2A Inductive Load
Event Output 0 Without
1 Contact output (1a) / 3 points
Analog Output 0 Without
4 4~20mA DC Load resistance: 300Ω max.
Square Root Extraction 0 Without
1 Output by square root extraction of control input signal
Communication 0 Without
5 RS-485
7 RS-232C
Remarks 0 Without
9 With (Please consult before ordering)

EM70 Servo Controllers are Shimaden Lite Software Compatible – Software Available “Free”

Download Shimaden Lite Software here

  • Shimaden EM70 Intelligent Servo Controller - Brochure 267.49 KB
  • Shimaden EM70 Intelligent Servo Controller - Instruction Manual 414.38 KB
  • Shimaden EM70 Intelligent Servo Controller - Communication Manual 98.66 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
EM70-4Y-00000

4~20mA Control Input, Contact output, 220~240Vac

$990.00

Other models available on request

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Shimaden products. Please contact the Shimaden distributor in your country if you require sales or service support for Shimaden products.

Product Bottom

Not sure what you need? Ask us anything!

  • (03) 343-0646Christchurch
  • (09) 827-1930Auckland
  • [email protected]

Primary Sidebar

Footer

Who we are

  • Products
  • About
  • Contact us

Intech Christchurch

59 Mandeville Street
Riccarton, Christchurch 8011

Phone: (03) 343 0646

Email: sales@intech.co.nz

Intech Auckland

70 Central Park Drive
Henderson, Auckland 0610

Phone: (09) 827 1930

Email: aucksales@intech.co.nz

Newsletter

Subscribe to our newsletter and get new information every month.

Copyright © 2019–2025 Intech Instruments Ltd. All rights reserved.
