Home | Products | Signal Transmitters & Conditioners | 3 & 4 Wire Transmitters | Potentiometer | XJ4

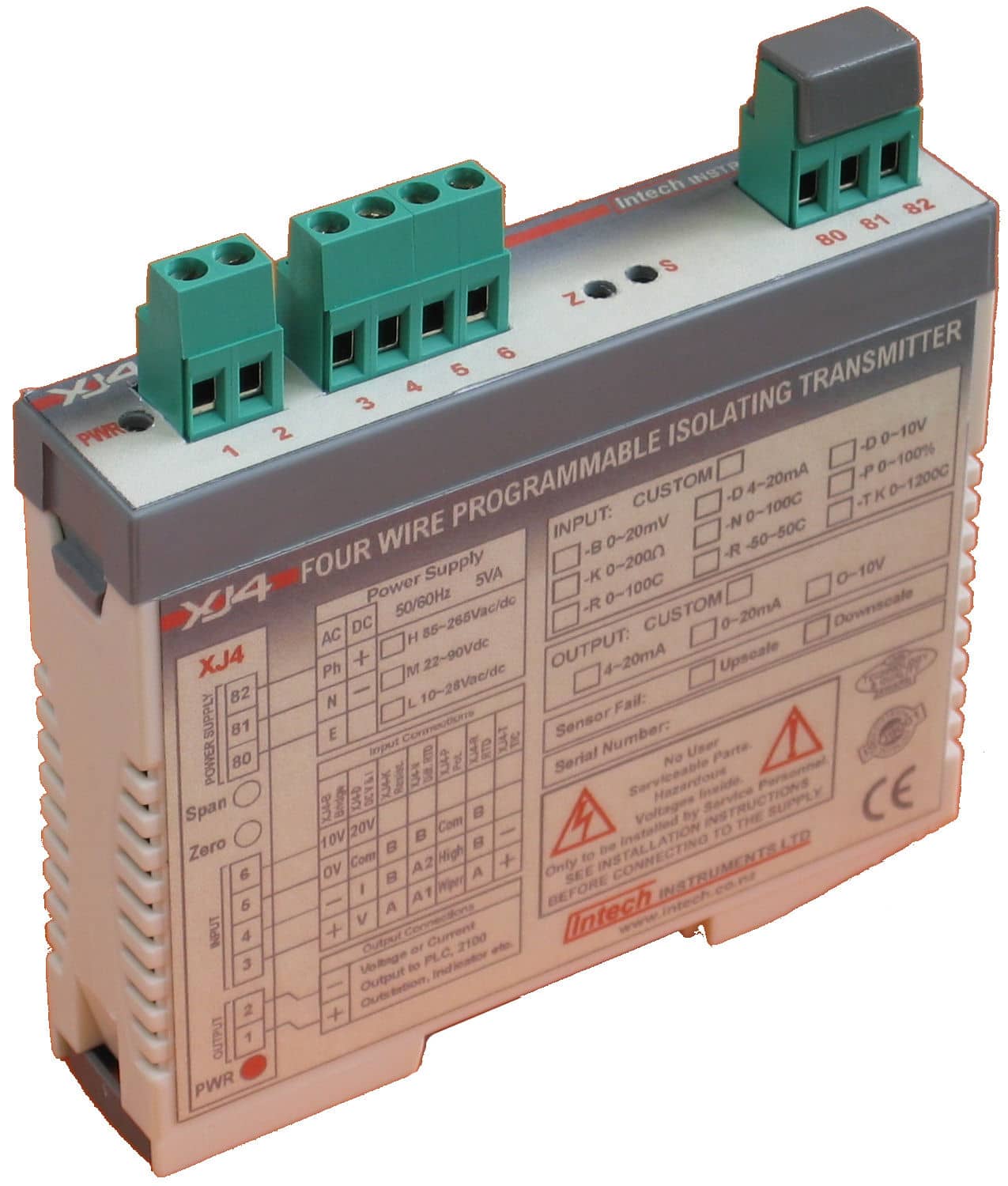

XJ4 – Potentiometer Input Transmitter (Analogue)

Programmable Isolating Multi-Input to DC Current or DC Voltage Output Transmitter

XJ4

XJ4 Features

  • Field programmable Bi-Polar input output ranges
  • Multiple input options
  • Input to output isolation 2.0kV
  • High accuracy 0.1%
  • Universal AC DC power supply
  • Transmitter power supply
  • Compact DIN rail mount enclosure
  • Available standard or special calibration
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents

Input Types:

  • Potentiometer
  • Bridge Strain Gauge
  • DC: mV, V & mA
  • RTD Pt100
  • Differential RTD
  • Resistance
TYPEXJ4
OutputVoltageField Programmable From 5V to ±10Vdc
 Maximum Output Drive = 20mA (500Ω maximum load @ 10Vdc)
CurrentField Programmable From 10mA to ±20mAdc
Maximum Output Drive = 15Vdc (750Ω) @ +20mA, 10Vdc (500Ω) @ -20mA
Universal P/S:H85~264Vac/dc; 50/60Hz; 5VA
M22~90Vdc; 5VA
L10~28Vac/dc; 50/60Hz; 5VA
Circuit Sensitivity<±0.001%/V FSO Typical
EMC Emissions ComplianceEN 55022-A
EMC Immunity ComplianceEN 50082-1
Safety ComplianceEN 60950
Accurate to<±0.1% FSO Typical
Linearity & Repeatability<±0.1% FSO Typical (Unless Individual Specifications State Otherwise)
Ambient Drift<±0.01%/C FSO Typical
Noise Immunity125dB CMRR Average (2.0kVdc Limit)
R.F. Immunity<1% Effect FSO Typical
Mains Isolation250Vac
Mains Isolation Test VoltageTo Input/Output 3000Vac 50Hz for 1 min, To Earth 1500Vac 50Hz for 1 min
Signal Isolation Test VoltageBetween Input and Output 2.0kVdc for 1 min
Response Time200msec Typical (From 10 to 90% 50msec Typical)
Operating Temperature0°C~60°C
Storage Temperature-20°C~80°C
Operating Humidity5~85%RH Max, Non-Condensing
Mounting35mm Symetrical Mounting Rail
DimensionsL=100, W=22.5, H=100mm

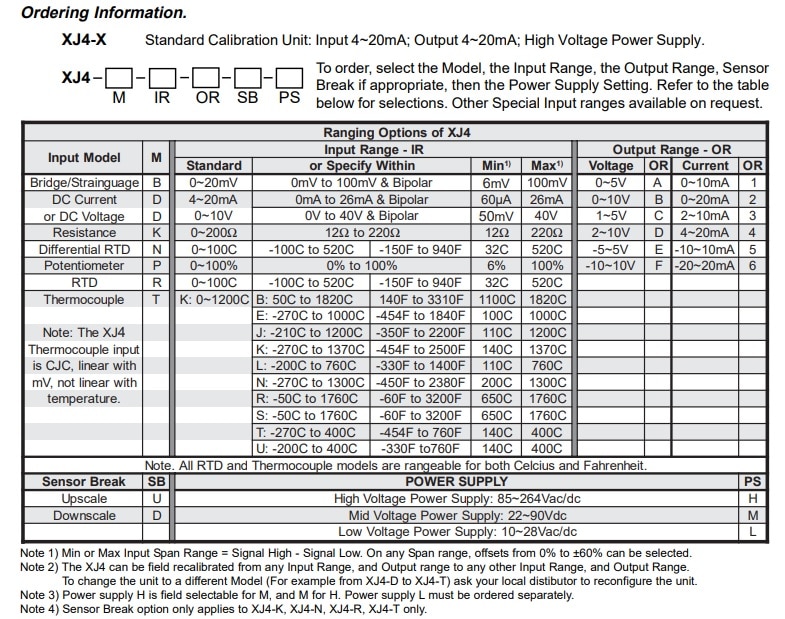

XJ4 Ordering Information

  • Intech XJ Series Universal Input Transmitters - Brochure 1.41 MB
  • Intech XJ4 Universal Input Transmitter - Installation guide 208.87 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
XJ4-P-0~100%-4-H

Potentiometer Input 0~100%; Output 4~20mA; 85~264Vac/dc Power Supply

$415.00
XJ4-P-0~100-4-L

Potentiometer Input 0~100%; Output 4~20mA; 10~28Vac/dc Power Supply

$502.00

Other ranges available on request

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
