Home | Products | Data Acquisition | Data Loggers | HR Series - Stainless Steel Data Loggers | T-HR

T-HR – Single Temperature Data Logger

Internal Temperature sensor, range -30~70°C.

  • Over 500,000 samples can be logged!
  • Temperature can be set to any combination of Point, Average, Maximum & Minimum readings.
  • The battery voltage of the logger can be logged if required.
  • The logger can be run in either “Stop when memory is Full”, “Loop Around” mode or set to stop at a future time.
  • The logger can be started “Now” or started at a given time in the future.
  • The data from any logger that records Temperature can be processed, by the Omni7 software, to give daily, weekly and monthly accumulated Grow Degree Day reports for a wide range of horticultural crops.
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Software
  • Documents

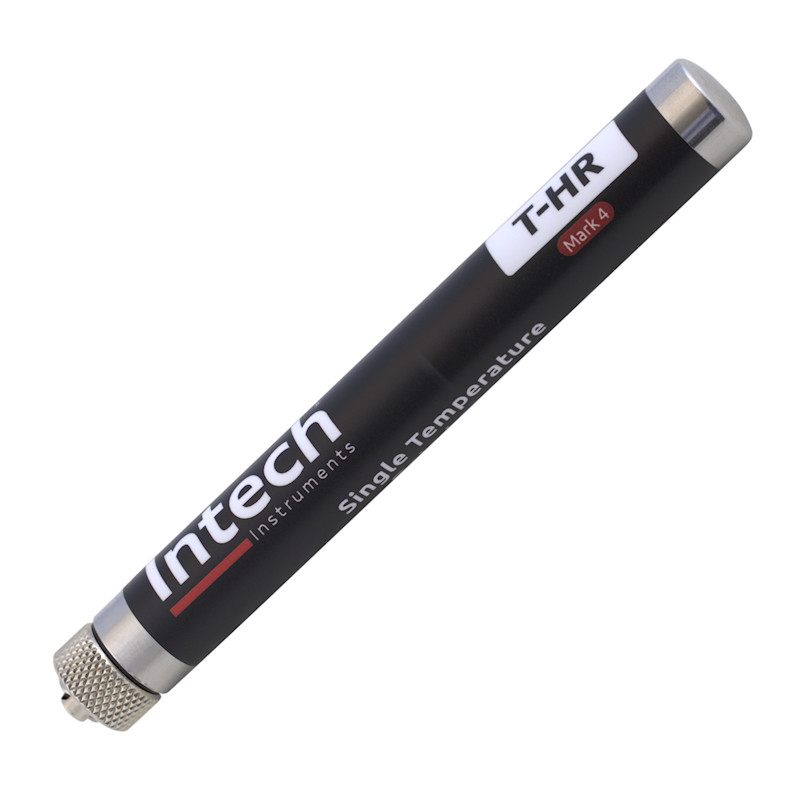

The T-HR is a small Single Channel High Resolution (12 bit) Temperature data logger with an internal sensor housed in a rugged 304 stainless steel case. The temperature sensor is mounted under a 0.6mm dome to give a relatively fast response time.

Logging can be configured to: start on time, immediate start, stop when full, loop around (overwrite oldest data).

A DLC3USB [USB] download cable (2m) is required to connect the T-HR to a computer.

TYPE  T-HR
Temperature:Sensor TypeThermister
Linear accuracy over range±0.3ºC (0ºC to 70ºC)
Repeatability±0.1ºC
Logger:Working Temperature-30ºC to +70ºC
Storage Temperature-30ºC to +70ºC
Sampling Rate1 second minimum, 10 hours maximum; in 1 second intervals
Storage capacity522,240 samples
362 days with 1min logging interval; 4.9 years with 5min logging interval
AlarmsTwo independent Alarms
Triggered on any combination of six user configurable Alarm Conditions
Both alarms can be configured to send SMS messages
Alarms can be visually checked using the Omni7 software
Start modesStart immediately / Start on date/time /
Start on condition (e.g. temperature > 20ºC)
Stop modesStop when memory is full / Stop on date/time /
Loop around (continues logging)
Logging modesEach channel can be set to log any combination of:
- Point readings        - Maximum reading
- Average reading     - Minimum reading
 Warning: When using the Average, Maximum or Minimum reading(s), the logger reads the attached sensor(s) every second. This will reduce battery life.
BatteryOne to Five year life depending on usage as above
Using the logger in temperatures below -5°C (23°F) will reduce battery life
One TruTrack 7.2V lithium battery; User Replaceable
The data is retained in the case of battery failure
Battery Status Monitor in Omni7 software
Download time9 minutes 30 seconds for Full Logger
Case material304 Stainless tube
Screw on end capPlated brass
Weight110g
Size20mm diameter X 156mm long

Learn about Omni7 Software for Data Loggers.

Download Omni7 Software for Data Loggers.

A DLC3USB [USB] download cable (2m) is required to connect the T-HR to a computer.

  • Intech Single Temperature Data Logger T-HR - Data Sheet 72.57 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
T-HR

Single Temperature Data Logger (-30~70°C)

$380.00
DLC3USB-25

USB Download cable HR Series

$126.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.
