| WMR SERIES | |||||||||
| Technical Specifications and Ordering Information | |||||||||
| Item | Code | Specification | |||||||
| Model | WMR | Wall Mounted RTD Assembly | |||||||
| Element | S | Single (Pt100) | |||||||
| D | Duplex (2 x Pt100) | ||||||||
| X | Others | ||||||||
| Outer Diameter | 6.4- | Millimetres (Standard 316SS) | |||||||
| X- | Other (Specify) | ||||||||
| Sheath Length | 100- | Millimetres (Standard) | |||||||
| xxx- | Millimetres (Specify) | ||||||||

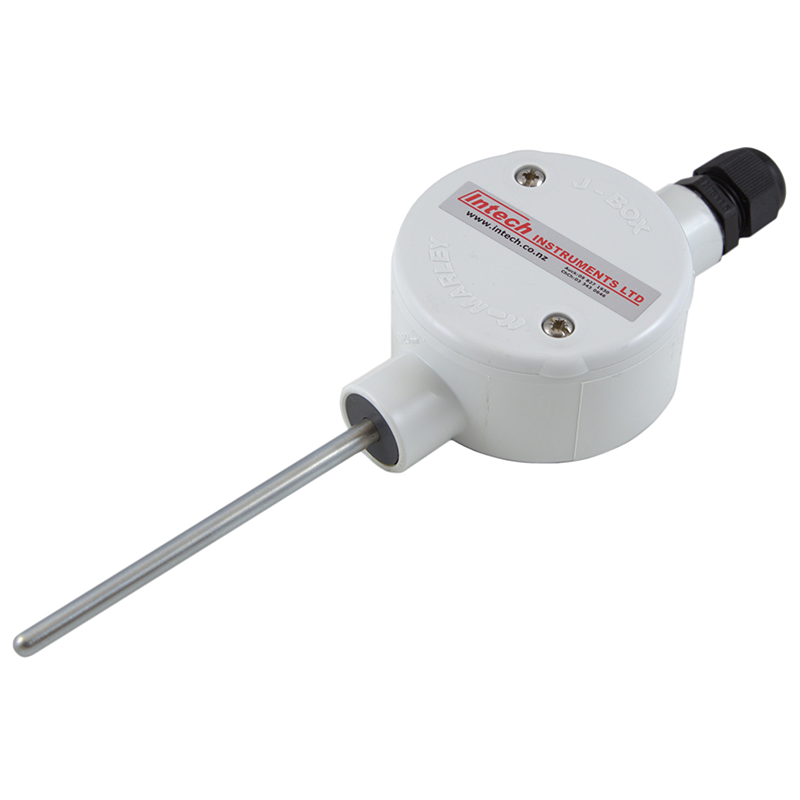

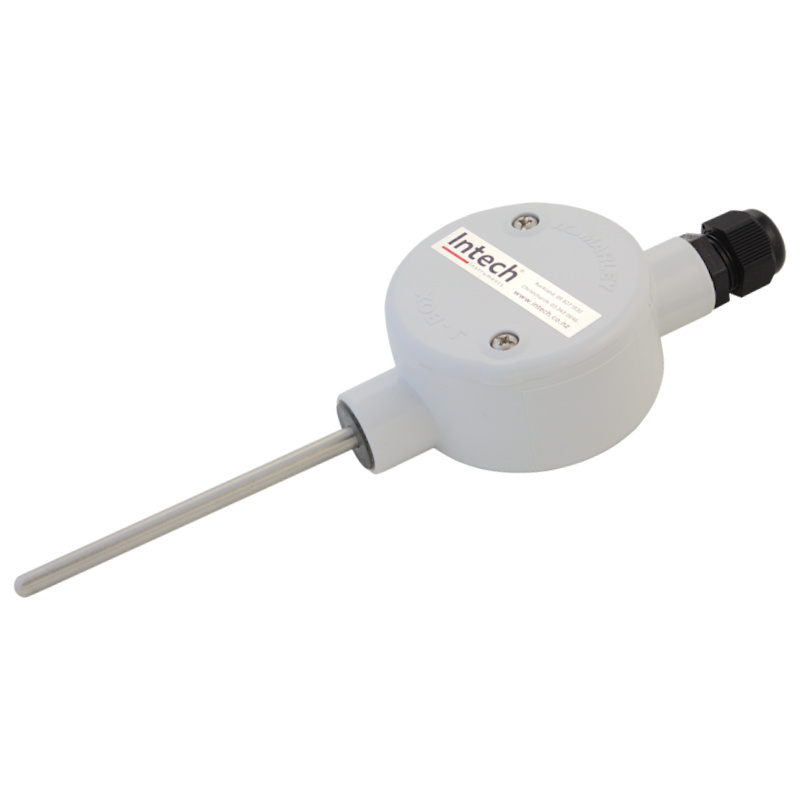

| Connection | CB- | Conduit Box (PVC) (-20~80°C) | |||||||

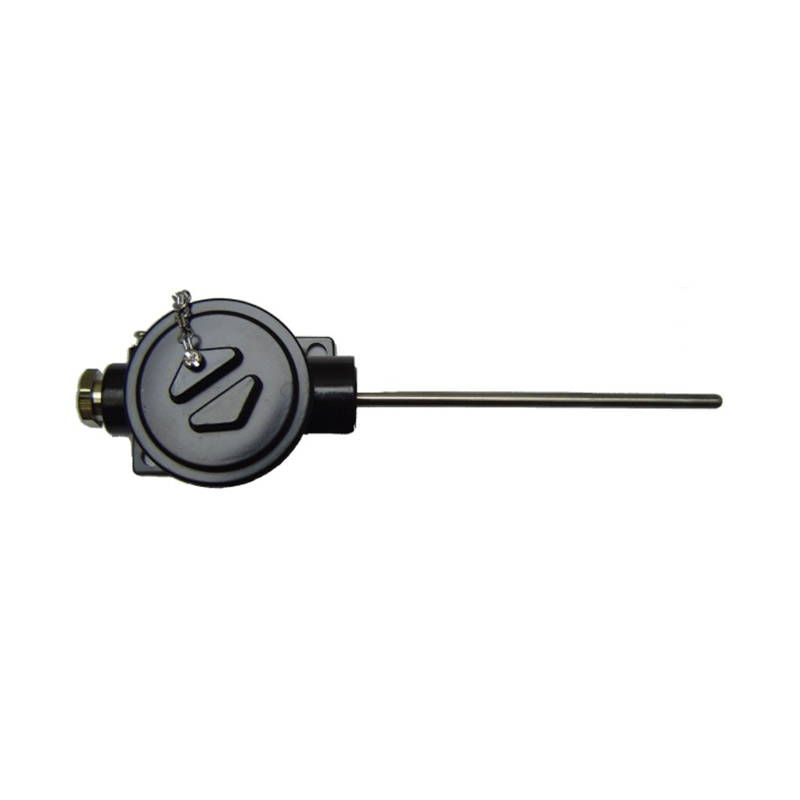

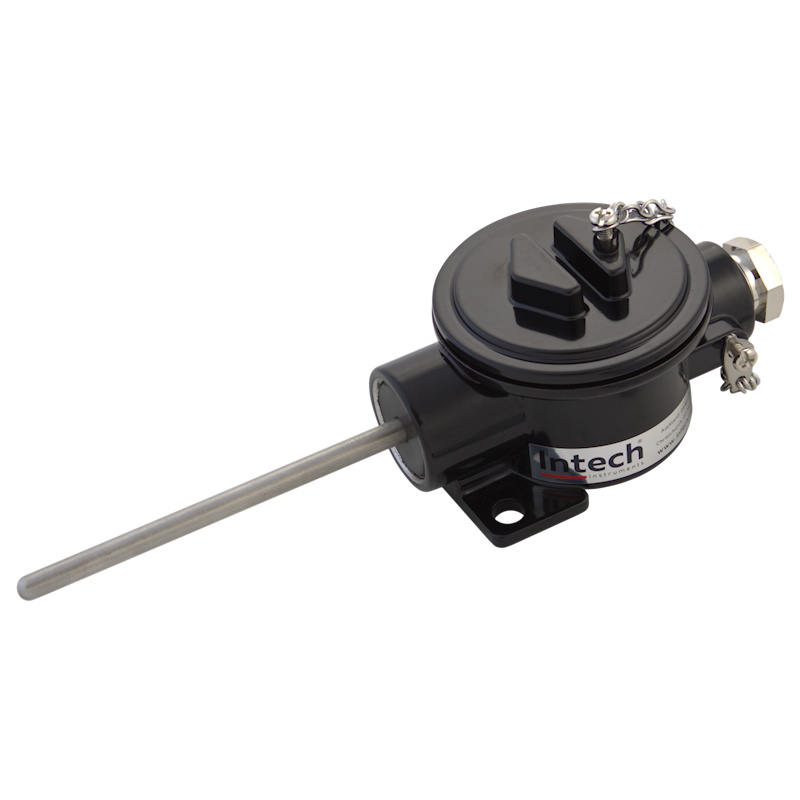

| AH- | Cast Alloy Head (-40~110°C) | ||||||||
| Transmitter | N- | None | |||||||
| H- | XU2HN Non Isolated Head Transmitter | ||||||||
| I- | XU2HI Isolated Head Transmitter | ||||||||
| L- | LPN-R-H Non Isolated Head Transmitter | ||||||||
| E- | dTRANS T01-B-Ex In-Head Transmitter with HART and Ex Rating | ||||||||
| Transmitter Range | N- | None | |||||||
| 10- | 0~100°C | ||||||||
| 55- | -50~50°C | ||||||||
| X | Other ranges | ||||||||
| Accessories | N | None | |||||||
| C | Cable Gland for Conduit box | ||||||||
| Model No. Example: WMR-S6.4-100-CB-N-N-N (Wall Mount Probe with Single element, 6.4mm diameter, 100mm sheath length and PVC conduit box connection). | |||||||||
