RH/RHP Series – RTD Probes with Protection Head (Tip rated to 260°C)

Powder Packed Probes with Protection Head and Process Connection.

RTD Pt100 DIN standard element, others available on request
Probe diameters from 3mm
Temperature range from -70~260ºC
Sheath materials 304SS and 316SS
Fast response tip option available (Add $60.00)
Standard Aluminium head, other terminal heads available:

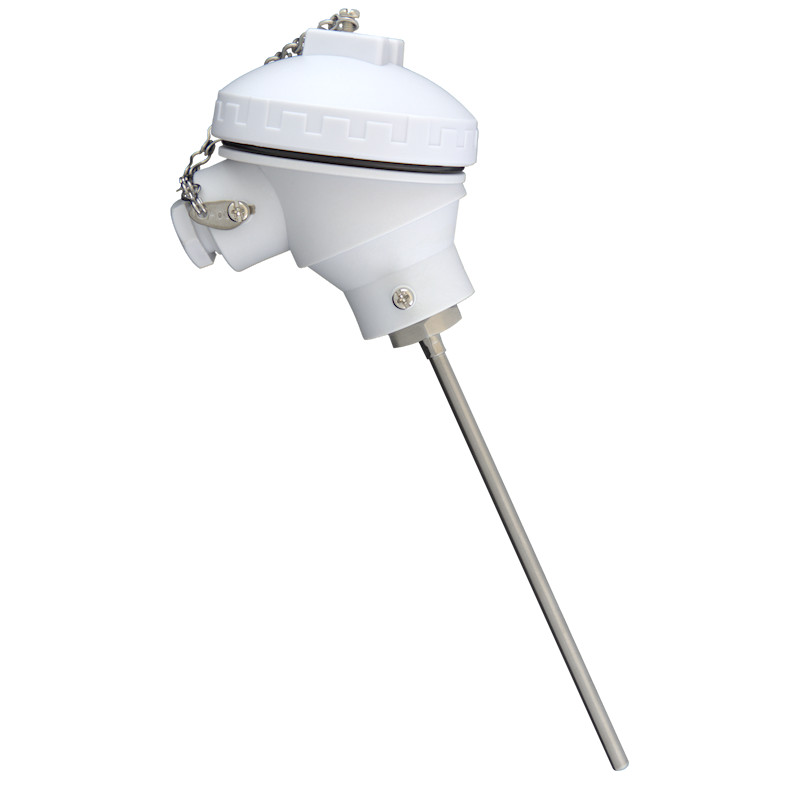

– Polypropylene (White) Large only (Add $4.00)
– Machined Stainless Steel, Large Only (Add $140.00)
Optional head-mount transmitter, different models:
– XU2HN, Non Isolated (Add $100.00)
– XU2HI, Isolated (Add $200.00)
– LPN-R-H, Non Isolated (Add $125.00)
– dTRANS T01-B-Ex, HART® and Ex Rating (Add $690.00)

Brand: INTECH
Usually in stock

Request a quote
Scroll down for product range

Ordering Information
Documents

RH/RHP SERIES
Technical Specifications and Ordering Information
Item	Code								Specification
Model	RH-								RTD Probe with Protection Head

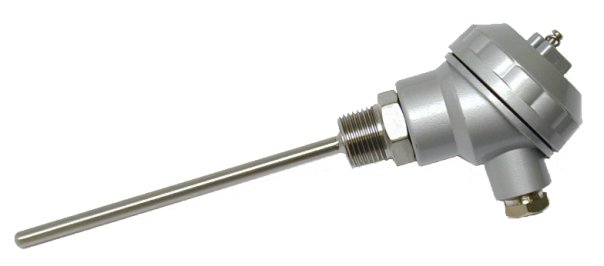

	RHP-								RTD Probe with Protection Head and 1/2″ BSP Process Fitting
Element		S							Single (Pt100)
		D							Duplex (2 x Pt100)
		X							Other (E.g. Pt1000)
Outer Diameter*			6.4-						Millimetres (Standard, 316SS)
			X-						Other
Sheath Length				xxx-					Millimetres (Specify)
Protection Head					SA-				Small Aluminium
					SB-				Small Bakelite (Black)
					LA-				Large Aluminium
					LB-				Large Bakelite (Black)
					LP-				Large Polypropylene (White)
					SS-				Large Machined Stainless Steel
Transmitter *						N-			None
						H-			XU2HN Non Isolated Head Transmitter
						I-			XU2HI Isolated Head Transmitter
						L-			LPN-R-H Non Isolated Head Transmitter
						E-			dTRANS T01-B-Ex In-Head Transmitter with HART and Ex Rating
Transmitter Range							N-		None
							55-		-50~50°C
							05-		0~50°C
							10-		0~100°C
							15-		0~150°C
							20-		0~200°C
							25-		0~250°C
							xx-		Special range (please specify)
Options								N	None
								FR	Fast Response Tip
								G	Spring Loaded


* Fits Large Head only.
Model No. Example: RHP-S6.4-100-LA-I-10-N (RTD Probe with head and 1/2″ BSP Process fitting, single element, 6.4mm diameter, 100mm sheath length, large aluminium head with XU2HI transmitter ranged to 0~100°C).

Temperature Conversion Table - RTD 60.39 KB

Product Range

Product Range:
Code	Specifications	Price
RH-S6.4-100-SA-N-N-N	RH Probe, Small Aluminium head, 6.4 x 100mm.	$148.00
RH-S6.4-150-SA-N-N-N	RH Probe, Small Aluminium head, 6.4 x 150mm.	$148.00
RH-S6.4-200-SA-N-N-N	RH Probe, Small Aluminium head, 6.4 x 200mm.	$148.00
RH-S6.4-300-SA-N-N-N	RH Probe, Small Aluminium head, 6.4 x 300mm.	$148.00
RH-S6.4-350-SA-N-N-N	RH Probe, Small Aluminium head, 6.4 x 350mm.	$148.00
RH-S6.4-400-SA-N-N-N	RH Probe, Small Aluminium head, 6.4 x 400mm.	$151.00
RH-S6.4-500-SA-N-N-N	RH Probe, Small Aluminium head, 6.4 x 500mm.	$154.00
RH-S6.4-600-SA-N-N-N	RH Probe, Small Aluminium head, 6.4 x 600mm.	$160.00
RH-S6.4-250-SA-N-N-N	RH Probe, Small Aluminium head, 6.4 x 250mm.	$148.00
RH-S6.4-100-LA-N-N-N	RH Probe, Large Aluminium head, 6.4 x 100mm.	$170.00
RH-S6.4-150-LA-N-N-N	RH Probe. Large Aluminium head, 6.4 x 150mm.	$170.00
RH-S6.4-200-LA-N-N-N	RH Probe, Large Aluminium head, 6.4 x 200mm.	$170.00
RH-S6.4-250-LA-N-N-N	RH Probe, Large Aluminium head, 6.4 x 250mm.	$170.00
RH-S6.4-300-LA-N-N-N	RH Probe, Large Aluminium head, 6.4 x 300mm.	$170.00
RHP-S6.4-100-LA-N-N-N	RHP Probe, 1/2”BSP Large Aluminium head, 6.4 x 100mm.	$200.00
RHP-S6.4-150-LA-N-N-N	RHP Probe, 1/2”BSP Large Aluminium head, 6.4 x 150mm.	$200.00
RHP-S6.4-200-LA-N-N-N	RHP Probe, 1/2”BSP Large Aluminium head, 6.4 x 200mm.	$200.00
RHP-S6.4-250-LA-N-N-N	RHP Probe, 1/2”BSP Large Aluminium head, 6.4 x 250mm.	$200.00
RHP-S6.4-300-LA-N-N-N	RHP Probe, 1/2”BSP Large Aluminium head, 6.4 x 300mm.	$200.00
RHP-S6.4-350-LA-N-N-N	RHP Probe, 1/2”BSP Large Aluminium head, 6.4 x 350mm.	$200.00
RHP-S6.4-400-LA-N-N-N	RHP Probe, 1/2”BSP Large Aluminium head, 6.4 x 400mm.	$220.00
RH-D6.4-100-LA-N-N-N	RH Probe, Duplex, Large Aluminium head, 6.4 x 100mm.	$312.00
RH-D6.4-150-LA-N-N-N	RH Probe Duplex, Large Aluminium head, 6.4 x 150mm.	$312.00
RH-D6.4-200-LA-N-N-N	RH Probe Duplex, Large Aluminium head, 6.4 x 200mm.	$312.00
RHP-D6.4-100-LA-N-N-N	RHP Probe Duplex, 1/2”BSP Large Aluminium head, 6.4 x 100mm.	$330.00
RHP-D6.4-150-LA-N-N-N	RHP Probe Duplex, 1/2”BSP Large Aluminium head, 6.4 x 150mm.	$330.00
RHP-D6.4-200-LA-N-N-N	RHP Probe Duplex, 1/2”BSP Large Aluminium head, 6.4 x 200mm.	$330.00
RHP-D6.4-250-LA-N-N-N	RHP Probe Duplex, 1/2”BSP Large Aluminium head, 6.4 x 250mm.	$330.00
RHP-D6.4-300-LA-N-N-N	RHP Probe Duplex, 1/2”BSP Large Aluminium head, 6.4 x 300mm.	$330.00
RH-MISC	RH/ RHP Miscellaneous Probe – If you need something that is not here. Please confirm your Ordering code when ‘Confirming Order’ under ‘Your Notes’ area.	$0.00

Note: – The above covers the more common RTD probes. We can supply probes to your particular specification. Refer to Ordering Information and contact us.

– In house Temperature Calibration Certificate and Probe Parts are also available – please enquire.

All prices are in NZ$, and GST exclusive and are subject to change without notice.
