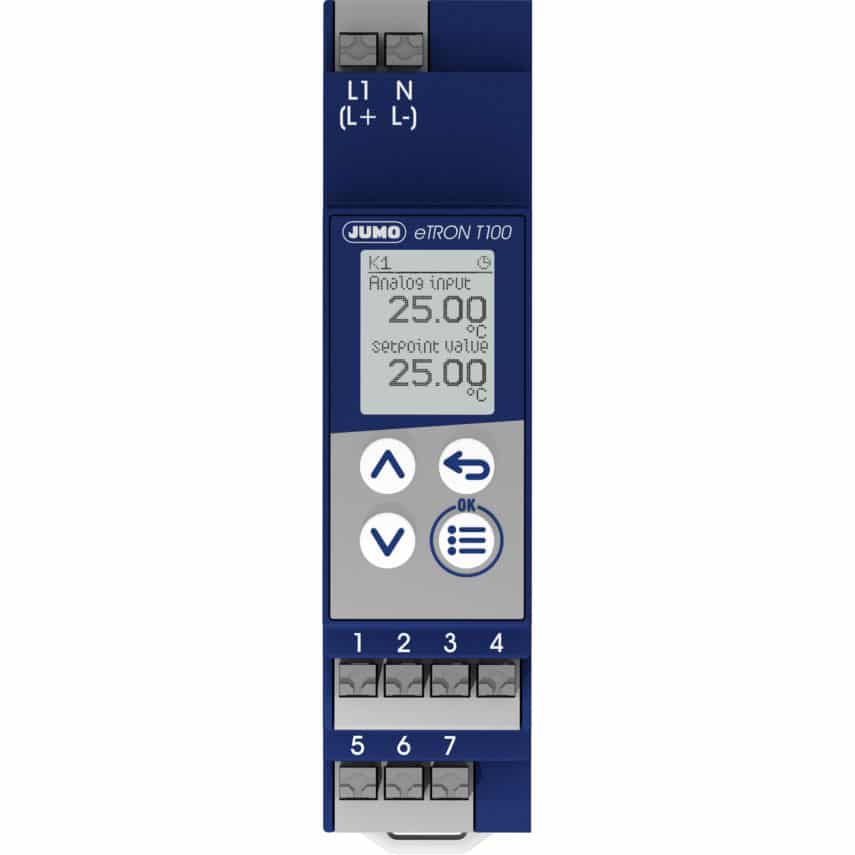

eTRON T100 – Electronic Thermostat (701052)

Product Details

The electronic thermostat measures the temperature via RTD temperature probe, thermocouple, or current 0(4) to 20 mA and can be configured as a simple heating or cooling thermostat depending on the set switching behaviour.

The timer function can be used to start the thermostat function (heating or cooling) or to set a time limit to it. The switching status of the relay and digital outputs as well as the actual value and setpoint value are shown simultaneously in the display.

It has a resolution of 64 × 80 pixels, has background lighting, and can be switched to the national languages English, French, or Spanish. The device is operated via 4 keys on the front panel. The electrical connection is made via terminal blocks with PUSH IN technology. A PhotoMOS® relay for limit value monitoring or a digital input for connecting a potential-free contact are available as options.

A setup program is available as an accessory for simple configuration, parameterization, and reading the data logger via PC.

eTRON T100 Features:

• Space-saving mounting in control cabinets and in sub-distribution boards.
• Fast acquisition of the process status through plain text information on the display.
• Relay output with 10 A changeover contact for switching high-performance loads.
• Fast and reliable wiring through the use of PUSH IN terminals.
• Simple start-up and operation through plain text support.
• Comprehensive timer function.
• 5 measuring input groups available
• Intuitive operation and configuration on the device or with the setup program through USB interface
• User level with 8 parameters
• Dot matrix display 64 × 80 pixels with 4 national languages
• Data logger function
• Service and operating hours counter
• Customer-specific linearization in the setup program
• Limit value monitoring
• Timer function
• Meeting the standards and specifications for use in rail vehicles according to DIN EN 50155, DIN EN 50121, and DIN EN 45545

Applications

• Standard industrial applications
• Heating and refrigeration technology
• Railway applications
• Building technology
