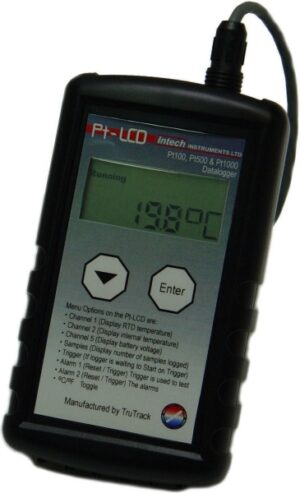

Pt-LCD – RTD Temperature Data Logger

Two Channel High Resolution (16 bit) Temperature Data Logger with LCD Display.

Pt-LCD – RTD Temperature Data Logger

Pt-LCD features

  • 6 pin Connector Socket can be used to connect to 2 wire, 3 wire and 4 wire. RTD Pt100, Pt500 and Pt1000 temperature probes.
  • Storage capacity of over 500,000 samples.
  • Easy to use LCD menu options.
  • LCD display shows logger status and alarm status continuously.
  • LCD display can be set to show; RTD temperature, internal temperature, battery voltage, number of logged samples and alarm status.
  • Temperature can be set to any combination of Point, Average, Maximum & Minimum readings.
  • The battery voltage of the logger can be logged if required.
  • The logger can be run in either “Stop when memory is Full”, “Loop Around” mode or set to stop at a future time.
  • The logger can be started “Now”, at a given time in the future, on a condition (e.g. temperature >20ºC) or on Trigger (push button on logger)
Brand: INTECH
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Software
  • Documents

The Pt-LCD is a high resolution (16 bit), handheld temperature data logger with a liquid crystal display. The logger connects to an external RTD probe and also has an internal temperature sensor for convenient logging of ambient temperature if desired.
The logger accepts RTD Pt100, Pt500 and Pt1000 probes. The display shows the RTD temperature, logger internal temperature, battery voltage, logger and alarm status.
This logger is designed for indoor use (IP 40) but can be supplied with a Seahorse Logger Enclosure for outdoor use.

TYPE    Pt-LCD
RTD Input: RTD Sensor Connector Hirose Electronics 6 pin HR30-6P-6P Connector Socket (shown on left below)
2 wire RTD connection A to Pin4, B to Pin2, Pin2 to Pin3, Pin4 to Pin5
3 wire RTD connection A to Pin4, B to Pin2, B to Pin3, Pin4 to Pin5
4 wire RTD connection A to Pin4, A to Pin5, B to Pin2, B to Pin3
Logger Accuracy
Type at Min Temp at 0ºC at Max Temp
Pt100 ±1.0ºC ±0.5ºC ±1.0ºC
Pt500 ±1.0ºC ±0.5ºC ±1.0ºC
Pt1000 ±2.0ºC ±1.0ºC ±1.0ºC
RTD probe accuracy depends on the type used
Temperature Coefficient ±0.1% per ºC of logger temperature
Temperature Range
Type Min Temp Max Temp
Pt100 -200ºC 600ºC
Pt500 -200ºC 600ºC
Pt1000 -200ºC 600ºC
Resolution 0.1ºC
Internal Temperature: Sensor Type Thermister
Linear accuracy over range ±0.3ºC (0ºC to 70ºC)
Repeatability ±0.1ºC
Long term stability ±0.1ºC
Logger: Working Temperature -20ºC to +70ºC
Storage Temperature -30ºC to +70ºC
Sampling Rate 1 second minimum, 10 hours maximum; in 1 second intervals
Storage capacity 522,240 samples logging RTD only
362 days with 1 min logging interval
4.9 years with 5 min logging interval
Alarms Two independent Alarms
Triggered on any combination of six user configurable Alarm Conditions
Both alarms can be configured to send SMS messages if connected to a cell modem
Two Open Collector Alarm Outputs
Alarms can be visually checked on the LCD Display or by using the Omni7 software
Start modes Start immediately; Start on date/time; Start on Condition (e.g. temperature >20ºC);
Start on trigger (push button on logger)
Stop modes Stop when memory is full / Stop on date/time / Loop around (continues logging)
Logging modes Each channel can be set to log any combination of:
– Point readings          – Average reading
– Maximum reading     – Minimum reading
Warning: When using the Average, Maximum or Minimum reading(s), the logger reads the attached sensor(s) every second. This will reduce battery life.
Battery One to Five year life depending on usage as above
Using the logger in temperatures below -5°C (23°F) will reduce battery life
User Replaceable; Two 3.6 volts Lithium AA cells
The data is retained in the case of battery failure
Battery Status Monitor on LCD display and in Omni7 software
Download time 9 minutes, 30 seconds for Full Logger
Case material ABS Plastic
IP Rating 40
Weight 185g
Size 130mm x 80mm x 30mm
Communication Connector The Pt-LCD has a 8 pin Mini-DIN female socket
Pinout Pin 1 Common
Pin 2 RS232 RX (out of logger)
Pin 3 RS232 TX (into logger)
Pin 4 RS232 CTS (out of logger)
Pin 5 RS232 RTS (into logger)
Pin 6 Alarm 1 Open Collector Output
Pin 7 Alarm 2 Open Collector Output
Pin 8 Power 9 to 16V dc

Learn about Omni7 Software for Data Loggers.

Download Omni7 Software for Data Loggers.

A DLC8USB [USB] download cable (2m) is required to connect the Pt-LCD to a computer.

  • Intech RTD Temperature Data Logger Pt-LCD - Data Sheet 214.84 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
Pt-LCD

RTD Pt100/Pt500/Pt1000 Temperature LCD Data Logger
(Does not include RTD probe)

$475.00
TP-Pt100-LCD

RTD Pt100 temperature probe for Pt-LCD, range -100~150C
4.7 x 100mm SS probe with 2m tefzel cable

$150.00
DLC8USB-15

USB Download cable for LCD Series

$135.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
