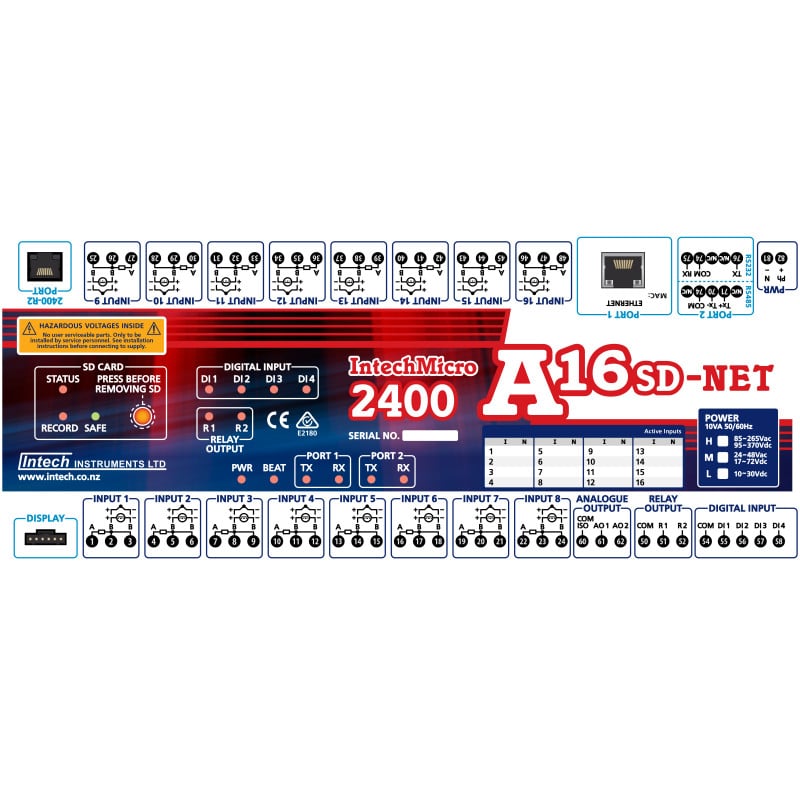

2400-A16-I16-SD-NET – Stand Alone Memory Logging option for 2400-A16

Product Details

Description

The SD version of the 2400-A16 is a great way to achieve a stand-alone method for data logging. The station can be used as a 16 input stand-alone logger, or as part of a MicroScan SCADA (Version 5.1 or later), data highway with backup logging facility.

The user friendly and free to download Intech Micro Station Programmer software (version 5.2.3613.5 or later), supports the reading of SD cards from the 2400-A16-I16-SD-NET.

• Logging of Analogue Inputs 1~16, Digital Inputs 1~4 and Ambient Sensor onto an SD Card.
  • Up to 7858811 Data Samples
  • Data Store Rates Selectable From 1sec ~ 60min
  • Cyclic or Stop Modes when SD Card is Full
  • Internal Real Time Clock with Battery Backup
  • Read SD Memory Card by removing SD Card and Reading from a Computer SD Port, or using Comms
  • Includes 1 x Spare SD Card
• 16 Isolated Universal Analogue Inputs, with Plug In Terminals
  • Each Input Individually Selected & Scaled
• 16 Bit Resolution
• Isolated Input for RTD, T/C, mA, mV, V & Pulse/Digital
  • RTD: Pt100/Pt1000, -200~320°C to -200~800°C / (-320~1560°F)
  • T/C: B, E, K, J, N, R, S, T, with CJC
  • mA: 0~20mA, 0~2.5mA
  • mV: -25~25mV to -200~200mV
  • V: 0~1V to 0~15V
  • Pulse/Digital: Meter pulses, Counting and Frequency. Max speed 2500Hz.
• Four Dedicated Digital, Isolated, Optocoupler Inputs.
  • State or Count
  • Max speed 8000Hz
• Two Analogue, Isolated, 4~20mA Outputs
• Two Digital, Isolated, Relay Outputs
• Comms Ports (also note the protocol information listed below):
  • Port 1: Isolated Ethernet TCP/IP
  • Port 2: Isolated RS232/RS485
  • USB programming port via XU-USB programming key
• Embedded protocols, Auto Detecting:
  • MicroScan ASCII
  • Modbus RTU
  • Modbus TCP
• Easy Programming using Intech Micro Station Programmer software.
• Compact 35mm DIN Rail Mounting
• Easy to Install
• Low Cost
