Seahorse Logger Enclosure

Brand:
Available on request

$340.00 Excl. GST

Total: $340.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

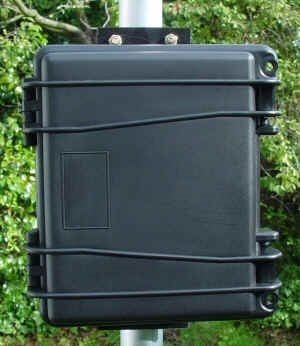

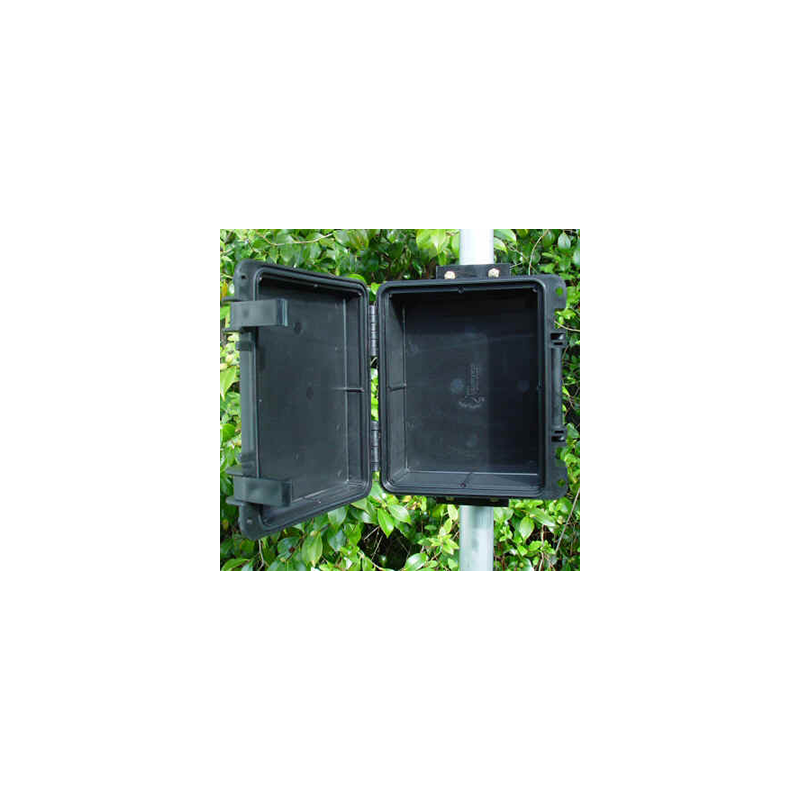

The Seahorse Logger Enclosure is a weatherproof lockable equipment housing designed to be mounted on posts or 50mm poles. The enclosure is a Seahorse SE300 Equipment Case that has had a plastic mounting plate welded to it. It is used to house loggers, power supplies, modems, alarm systems and sensor electronics. Seahorse equipment cases are watertight, airtight, dustproof, crush resistant and designed to keep your logging equipment safe from the elements

The Seahorse Logger Enclosure is supplied with 2 U bolt clamps for attaching the enclosure to a 50mm outside diameter pipe.

The case can be bolted or padlocked closed. The bolts and padlocks are no supplied with the enclosure.

Weatherproof communication and power supply sockets are fitted to the underside of the enclosure.

Sockets for probes and sensors can be fitted to the case as required.

Seahorse Logger Enclosure

  • watertight
  • airtight
  • dustproof
  • crush resistant

Designed to keep your logging equipment safe from the elements

Technical Specs

Seahorse

Colour Black

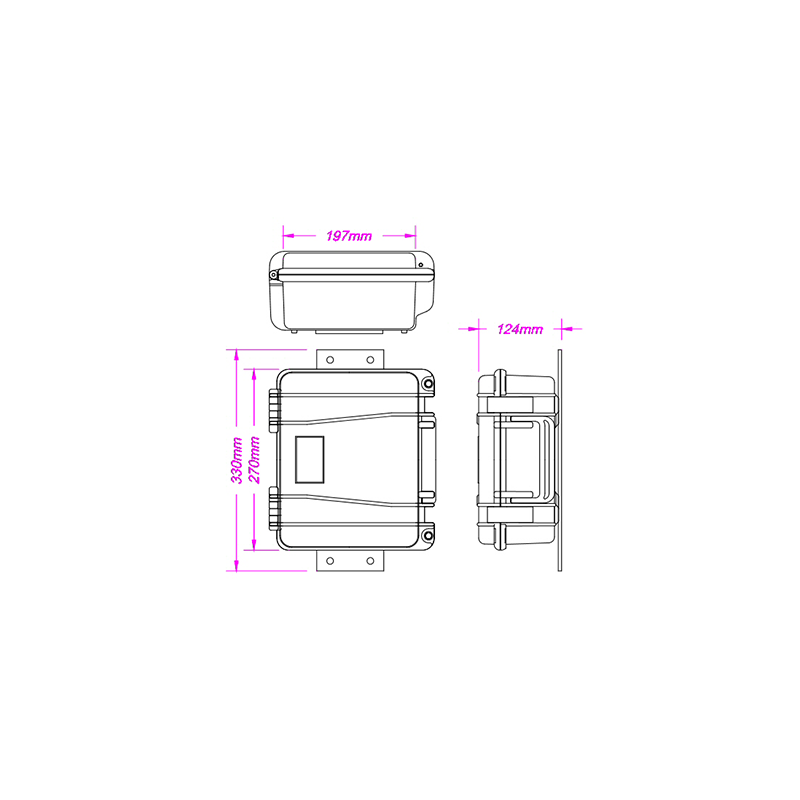

Outside Height including mounting plate 330mm
Outside Height excluding mounting plate270mm
Outside Width 197mm
Outside Depth124mm
Inside Height243mm
Inside Width188mm
Inside Depth 100mm
Weight 1.3Kg
