| DB SERIES | ||||||
| Technical Specifications and Ordering Information | ||||||
| Item | Code | Specification | ||||

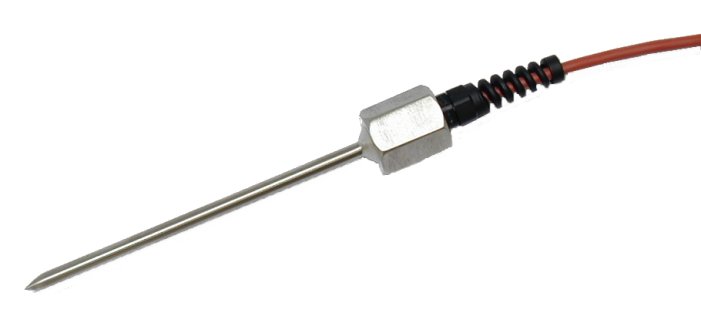

| Model | DB- | Deep Bone Probe with Hex Nut | ||||

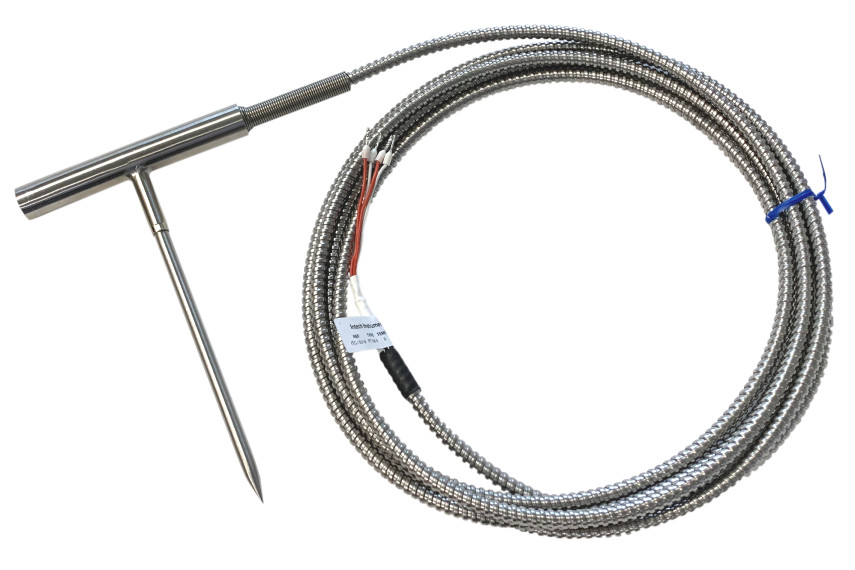

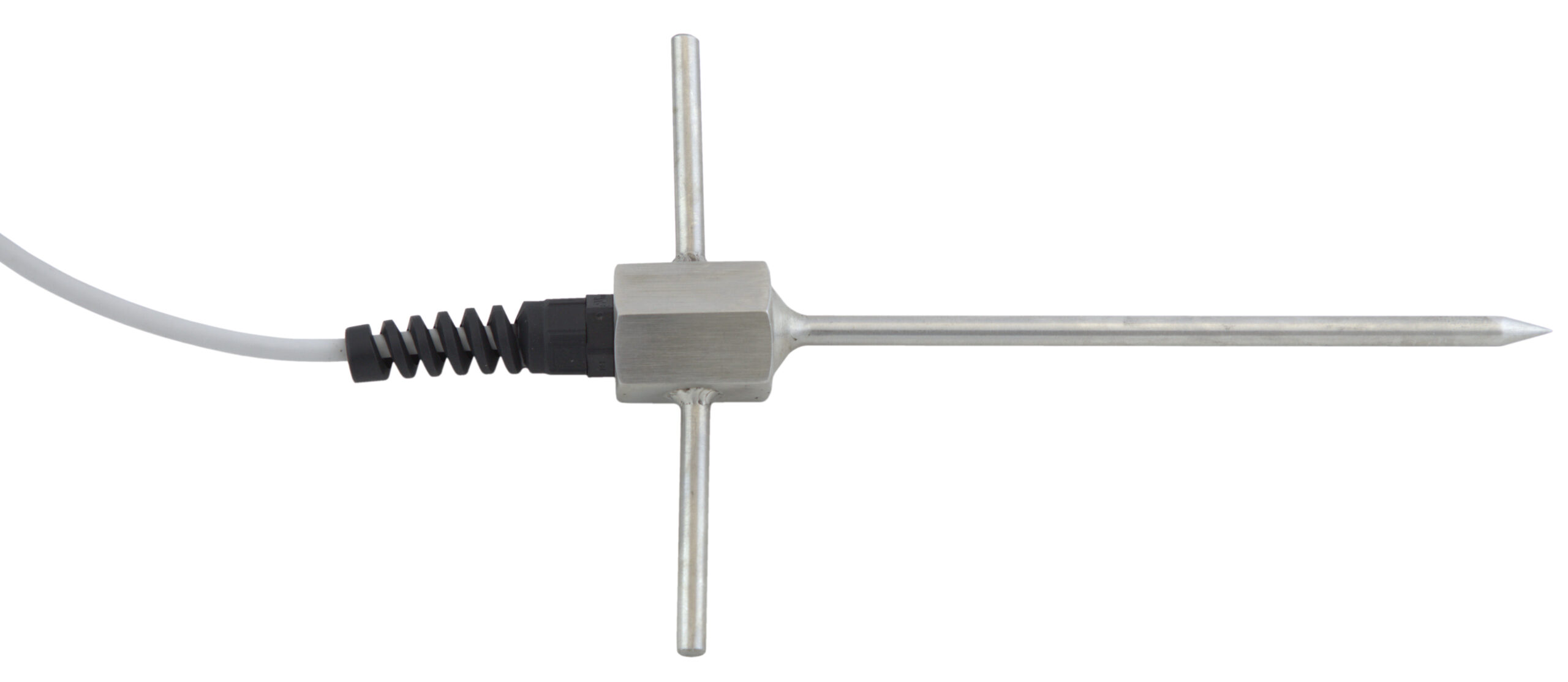

| DBT- | Deep Bone Probe with T-Bar handle | |||||

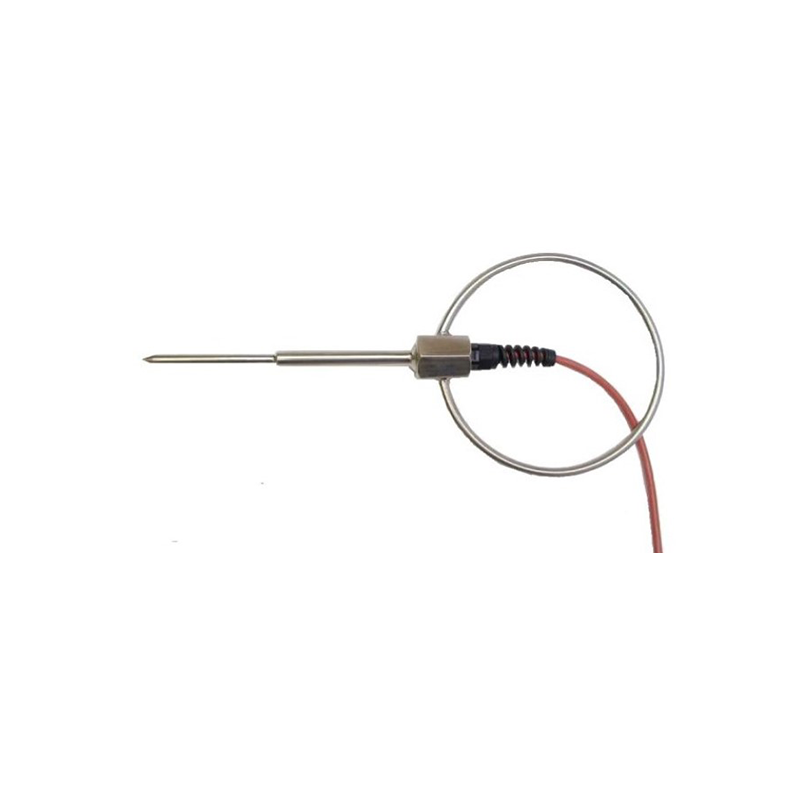

| DBR- | Deep Bone Probe with Ring handle (140mm) | |||||
| Outer Diameter | 6.4- | Millimetres (316SS) | ||||
| X- | Other (Specify) | |||||
| Sheath Length | 150 | Millimetres | ||||
| xxx- | Other (Specify) | |||||
| Lead | C- | 3 Core Silicone Rubber 14/0.15 (-30~180ºC) | ||||
| X- | Others (Specify) | |||||
| Lead Length | 7000 | Millimetres (Standard) | ||||
| xxxx- | Millimetres (Specify) | |||||
| Model No. Example: DBT-6.4-150-C-7000 (Deep Bone Probe with T-Bar handle, 6.4mm diameter, 150mm sheath length and 7m of 3 Core Silicone rubber cable). |
