| TYPE | PI-M | |
| Input | Voltage | Field Programmable 0~5Vdc / 0~10Vdc / 1~5Vdc / 2~10Vdc |
| Min Input Resistance = 180kΩ | ||
| Max Over-range = 24Vdc Continuous | ||
| Current | Field Programmable 0~20mAdc / 4~20mAdc | |
| Input Resistance = 250Ω | ||
| Max Over-range = 50mAdc Continuous | ||
| Maths Functions | 29 Field Selectable, Predefined, Maths Functions | |
| RS-232 Interface for Calibration and Testing (Using a PI-RAC) | ||
| -User Defined Curve | Up to 120 Point Look-up Table, Linear Interpolation Between Points | |
| RS-232 Interface for Programming of User Curves (Using a PI-RAC) | ||
| IMPORTANT: The RS-232 communications port is NOT ISOLATED from the PI-M inputs | ||
| Power | H | 85~264Vac/dc; 50/60Hz; 5VA |
| M | 22~85Vac/dc; 50/60Hz; 5VA | |
| L | 10~28Vac/dc; 50/60Hz; 5VA | |
| Circuit Sensitivity | <±0.001%/V FSO Typical | |
| Resolution | Input | 12 Bit |
| Output | 12 Bit | |
| Accurate to | <±0.1% FSO Typical | |
| Linearity & Repeatability | <±0.1% FSO Typical | |
| Ambient Drift | <±0.01%/C FSO Typical | |
| Noise Immunity | 125dB CMRR Average (1600Vdc Limit) | |
| Response Time | 200msec Typical (10 to 90% 100msec Typical) | |
| Note: The %RH Function has Software Dampening of 2sec Typical | ||
| EMC Compliances | Emissions EN 55022-A. Immunity EN 50082-1, <1% Effect FSO Typical | |
| Safety Compliance | EN 60950 | |
| Mains Isolation | 250Vac | |
| Isolation Test Voltages | Mains to Input/Output 3kVac 50Hz for 1min; Input to Output 1.6kVdc for 1min | |
| Operating Temperature & Humidity | 0°C~60°C (Storage Temp. -20°C~80°C) 5~85% RH Max, Non-Condensing | |
| Dimensions and Mounting | L=80, W=50, H=120mm, Mounts on 35mm Symmetrical Mounting Rail | |
| Relative Humidity | Input | 0°C~100°C for Input Range |
| (Function 29) | Range | 0~100%RH Over 0°C~100°C Input |
| Accurate to | <±1% FSO Typical | |

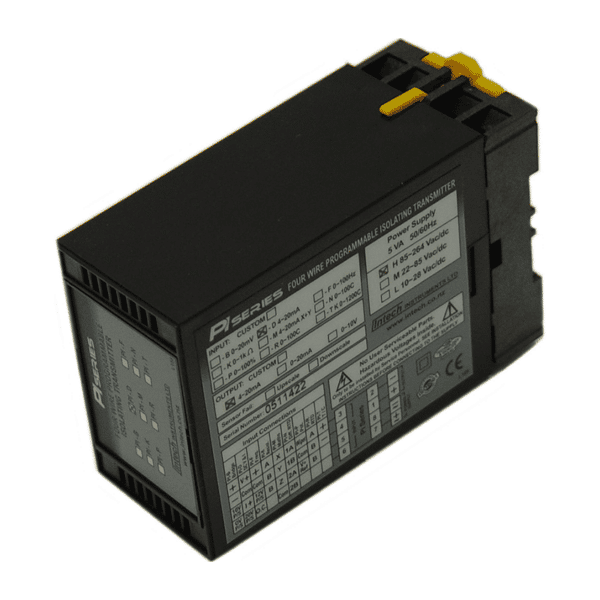

PI-M – Programmable Isolating Maths Function Transmitter
Programmable Isolating Maths Function Input to DC Current or DC Voltage Output Transmitter
PI-M Features
- Field programmable input and output ranges
- 32 Predefined math functions
- 12 Bit resolution (0.025%)
- Isolated input to output 1.6kV
- High accuracy to 0.1%
- Universal AC/DC power supply
- Compact DIN rail mount enclosure
- 120 Point user definable curve fitting
- Programmable output ranges from 0~500mV to ±12V, 0~1mA to ±20mA
Brand: INTECH
Usually in stock
Request a quoteScroll down for product range
Product Range
| Code | Specifications | Price | Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PI-M-X | Maths Function Transmitter, Standard Calibration: Input 4~20mA; X+Y; Output 4~20mA; High Voltage Power Supply | $670.00 | |||||||||
| PI-RAC | RS232 adapter cable for connecting the PI-M to a computer. | $275.00 | |||||||||
Other ranges available on request.
All prices are in NZ$, and GST exclusive and are subject to change without notice.Intech is our own brand of products, for all aftersales and technically support please contact us.
