Home | Products | Pressure | Pressure Data loggers | P-LCD

P-LCD – Pressure Data logger with LCD Display

High Resolution (16 bit) Pressure Data Logger with LCD Display.

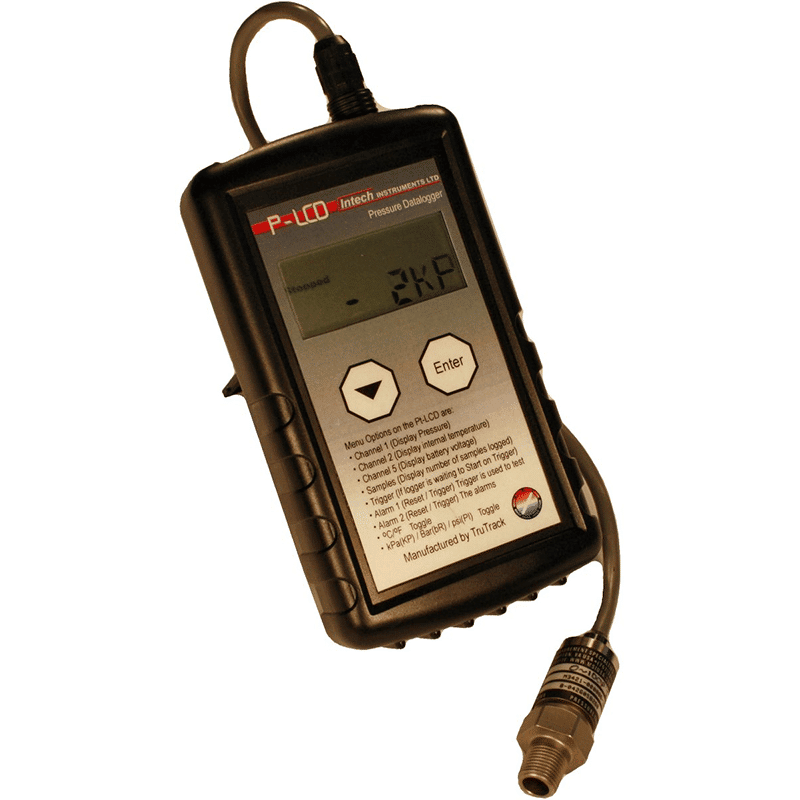

P-LCD Pressure LCD Data Logger

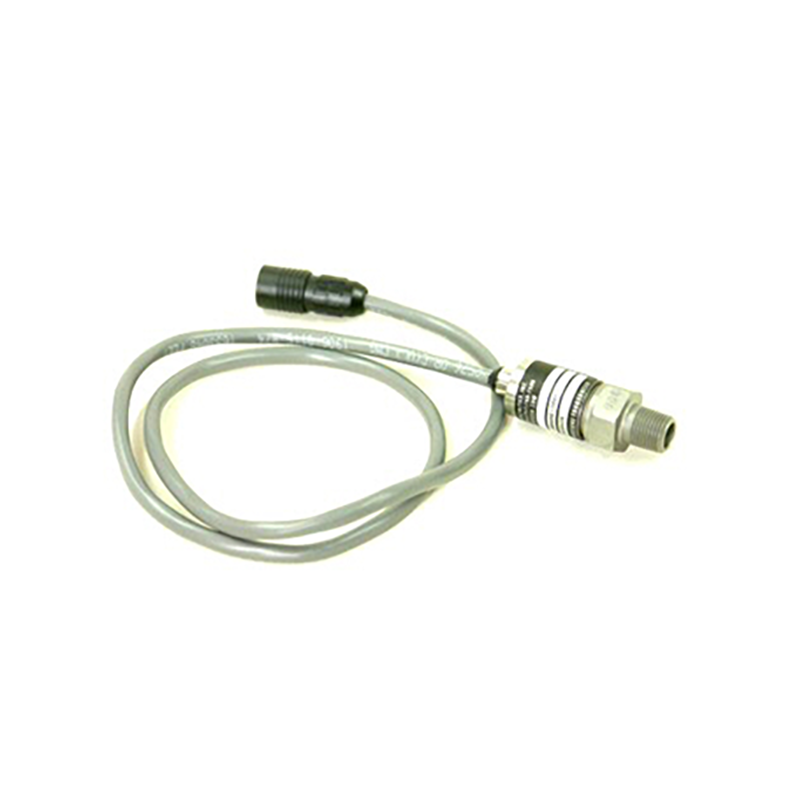

Pressure Sensor For P-LCD

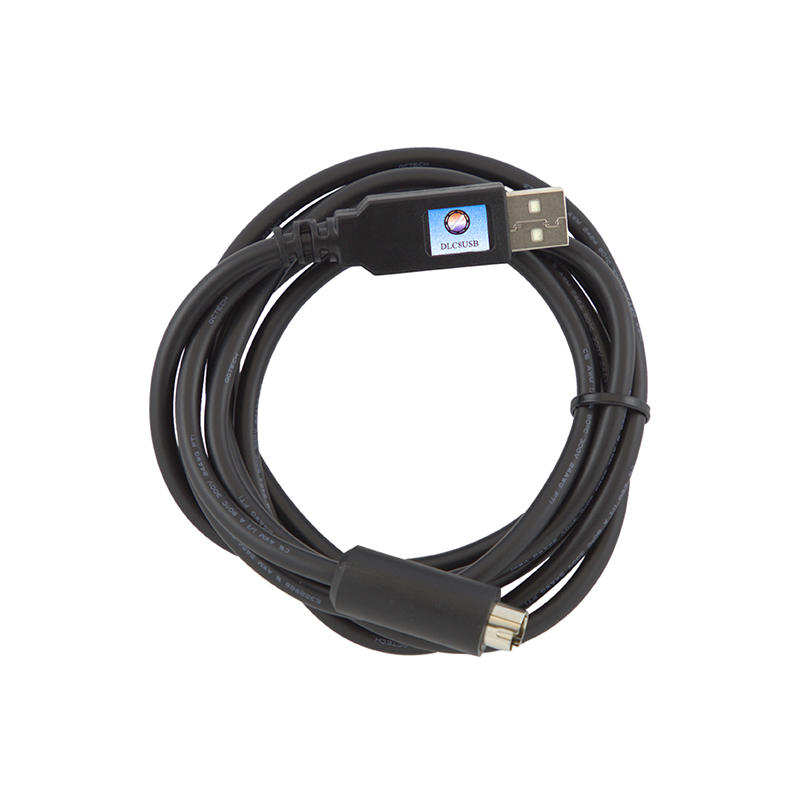

USB Download Cable HR Series Intech DLC8-USB

The P-LCD is a handheld, high resolution (16 bit) pressure data logger with a liquid crystal display. The logger connects to an external gage pressure sensor and also has an internal temperature sensor. The logger accepts a range of pressure sensors from 100psi to 300psi.

Brand: INTECH
Available on request
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Software
  • Documents

Features

  • Storage capacity of over 500,000 samples.
  • Easy to use LCD menu options.
  • LCD display shows logger status and alarm status continuously.
  • LCD display can be set to show; pressure, internal temperature, battery voltage, number of logged samples and alarm status.
  • The battery voltage of the logger can be logged if required.
  • The logger can be run in either “Stop when memory is Full”, “Loop Around” mode or set to stop at a future time.
  • The logger can be started “Now”, at a given time in the future, on a condition (e.g. temperature >20ºC) or on Trigger (push button on logger).
  • A DLC8USB [USB] download cable is required to connect LCD Series loggers to a PC.

The P-LCD is a handheld, high resolution (16 bit) pressure data logger with a liquid crystal display. The logger connects to an external gage pressure sensor and also has an internal temperature sensor. The logger accepts a range of pressure sensors from 100psi to 300psi.

The sensors are suitable for the measurement of liquid or gas pressure including difficult media such as contaminated water, steam and mildly corrosive liquids or gasses. The pressure sensor (with 500mm of cable) connects to a miniature connector socket on the P-LCD. This socket is used to connect the logger to any of the following pressure sensors:

 Type  Min  Max  Overload  Burst
 P100-PS  -15psi  100psi  200psi  500psi
 P300-PS  -15psi  300psi  600psi  1500psi

Other pressure ranges may be available on request.

The P-LCD can be set to display the pressure in kPa, Bar or psi on the LCD screen. It can be set to display the pressure in Atmos, Bar, hPa, kPa, Pa, mBar, cm water, in Hg, in water, psi, mm water or mm Hg in the Omni7 software.

Pressure Probe

The sensors are suitable for the measurement of liquid or gas pressure including difficult media such as contaminated water and mildly corrosive liquids or gasses. There are two pressure ranges available:

  • -15 to 100psi
  • -15 to 300psi

These are gage sensors so the back of the sensor is ported to the atmosphere. They should not be used if the back of the sensor will be under pressure or will experience high humidity.

Temperature Coefficient ±3% from 0ºC to 55ºC
Long term stability ±0.25% per year
Thread 1/8 inch NPT
Material 17-4 PH Stainless Steel
Working Temperature 20 to +85°C
Cable Length 500mm

The sensors for the P-LCD plug directly into the logger.

Once the P-LCD has been calibrated with one sensor a different sensor can be connected with a small loss of accuracy.

P-LCD Specifications
Pressure Sensor
Combined Linearity, Hysteresis and Repeatability
Type Calibrated Uncalibrated
P100-PS ±1psi ±3psi
P300-PS ±3psi ±9psi
Temperature Coefficient ±3% from 0ºC to 55ºC
Long term stability ±0.25% per year
Resolution 0.16psi (1kPa)
Thread 1/8 inch NPT
Material 17-4 PH Stainless Steel
Cable length 500mm
Internal Temperature
Sensor Type Thermister
Linear accuracy over range ±0.3ºC (0ºC to 70ºC)
Repeatability ±0.1ºC
Long term stability ±0.1ºC
Logger
Working Temperature -20ºC to +70ºC
Storage Temperature -30ºC to +70ºC
Sampling Rate : 1 second minimum, 10 hours maximum; in 1 second intervals
Storage capacity 522,240 samples logging Pressure only
362 days with 1 min logging interval
4.9 years with 5 min logging interval
Alarms Two independent Alarms
Two Open Collector Alarm Outputs
Start modes Start immediately; Start on date/time; Start on Condition (eg temperature >20ºC);
Start on trigger (push button on logger)
Stop modes Stop when memory is full / Stop on date/time / Loop around (continues logging)
Logging modes Each channel can be set to log any combination of Reading:
-Point - Average - Maximum - Minimum
WARNING: When using the Average, Maximum or Minimum reading(s), the logger reads the attached sensor(s) every second. This will reduce battery life.
Battery One to Five years life depending on usage as above
Using the logger in temperatures below -5°C (23°F) will reduce battery life User
Replaceable; Two 3.6 volts Lithium AA cells
The data is retained in the case of battery failure
Battery Status Monitor on LCD display and in Omni7 software
Download time 9 minutes, 30 seconds for Full Logger
Case material ABS Plastic
IP Rating 40
Weight 185g
Size 130mm x 80mm x 30mm
Communication Connector The Tc-LCD has a 8 pin Mini-DIN female socket
Pinout Pin 1 - Common
Pin 2 - RS232 RX (out of logger)
Pin 3 - RS232 TX (into logger)
Pin 4 - RS232 CTS (out of logger)
Pin 5 - RS232 RTS (into logger)
Pin 6 - Alarm 1 Open Collector Output
Pin 7 - Alarm 2 Open Collector Output
Pin 8 - Power 9 to 16V dc
Please note a DLC8USB is required to connect the P-LCD to a computer

Learn about Omni7 Software for Data Loggers.

Download Omni7 Software for Data Loggers.

A DLC8USB [USB] download cable (2m) is required to connect the P-LCD to a computer.

  • Intech P-LCD Pressure Data Logger - Data Sheet 77.22 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
P-LCD

Pressure LCD Data Logger (does not include sensor)

$475.00
P300-PS

-15~300psi Pressure sensor (Overload 600psi, Burst 1500psi), 500mm cable, 1/4″NPT.

$398.00
P100-PS

-15~100psi Pressure sensor (Overload 200psi, Burst 500psi), 500mm cable, 1/4″NPT.

$398.00
DLC8USB-1

USB Download Cable LCD Series

$135.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
