Home | Products | Data Acquisition | I/O Remote Stations / PLC Multiplexers | Minipacks | Mini Packs

Mini Packs – Convenient Hardware and Software Packages

Chart Recorder Replacement Packages

Intech Mini Pack 8
Intech Mini Pack 16
Intech Mini Pack 32

Mini Packs Benefits

  • Featured Packed
  • Easy to Use
  • Cost Effective
  • Up to 8, 16 or 32 channels of recording.
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Together the Intech Micro I/O Remote Station(s) [2300 Series or 2400-A16-I16] with the MicroScan Recorder software have the price advantage and technology edge. Mini Packs are more competitive and maintenance costs much lower.

The MicroScan Recorder software includes features beyond the scope of chart recorders, including trends, realtime data, alarms and historical storage.

The Intech Micro 2300 Series I/O Remote Stations are available for one of the following input types: mA, mV, Voltage, Thermocouple, RTD, Combination.

The Intech Micro 2400-A16-I16 includes 16 individually configurable input channels for RTD Pt100/Pt1000, Thermocouple, mA, mV, V & Pulse/Digital, plus 4 dedicated digital inputs, 2 alarm relay outputs and 2 analogue 4~20mA outputs.

The recorder module is a vital component to any monitoring System as it represents the data acquisition component.

The visual displays can switch between the data (spreadsheet) format and the line (trend graph) format to group and display information instantaneously and historically with on screen viewing as far back as you want to go. The Recorder is ahead of its time and liked by all who use it.

The features include:

  • Real-time line graphs
  • Data analysis
  • Continuous Recording
  • Batch recording
  • Mathematical
    • Subtraction
    • Addition
    • Multiply
    • Divide
    • Sq root
    • Average
    • Min/Max
    • Nat. log
  • Historical retrieval
  • Historical search
  • History replay
  • Function Key Support
  • Excel Support
  • ISO 9001 support
  • Data logs to printer
  • Report generator
  • User log-on and audit
  • Real-time data screens
  • Alarm handling and printing
  • Event handling and printing
  • Comment entry by operators
  • Multi-level passwords
  • Data storage to disk
  • Total hours run facility
  • DDE support
  • Help screens
  • Real-time line graphs and data screens
  • Batch and continuous recording
  • Mathematical blocks
  • Totalising in engineering units
  • Total hours run facility
  • Data logs to printer
  • ISO 9000 support
  • Data storage to disk
  • Help Screens
  • Historical search and retrieval
  • Toolbar Support
  • History replay
  • Function key support
  • Alarm and event handling
  • Intech MiniPacks - Brochure 229.72 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity

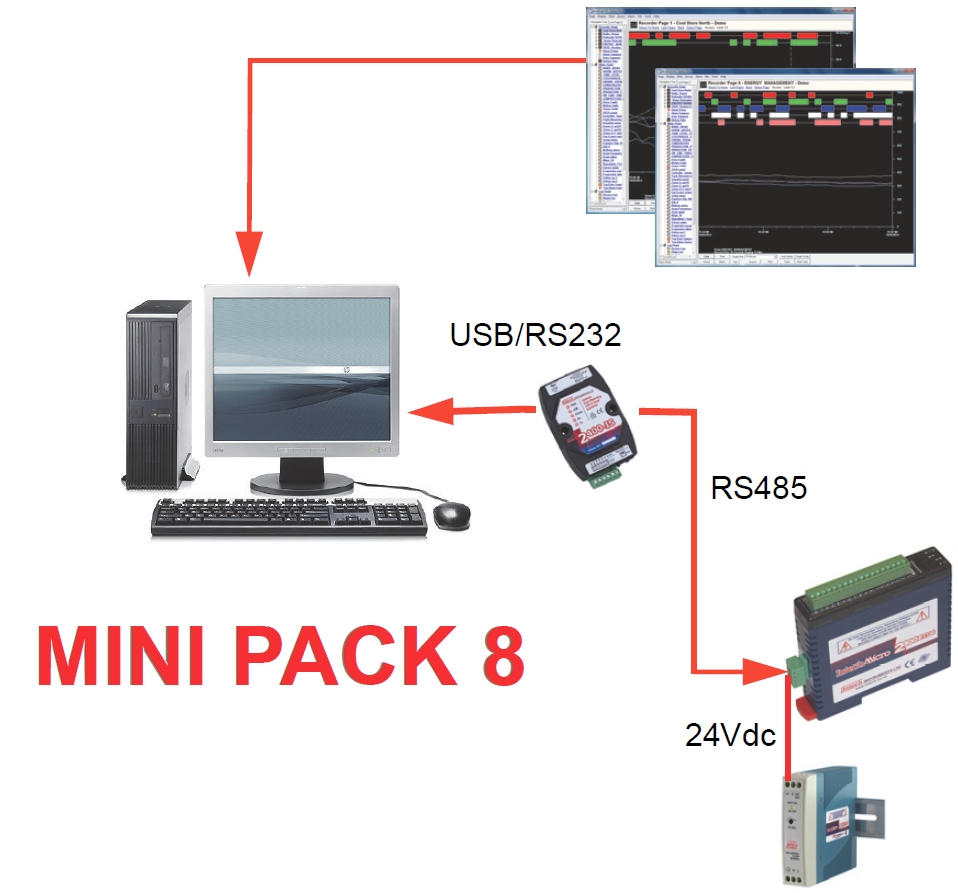

Minipack 8-1

MINI PACK 8:
1 x MicroScan V5 Recorder R8
1 x 2400-IS Comms Converter
1 x 2300-RTD6 RTD Remote Station
1 x PSW-10-F Power Supply

$2,532.00
Minipack 8-2

MINI PACK 8
1 x MicroScan V5 Recorder R8
1 x 2400-IS Comms Converter
1 x 2300-xxx Remote Station (please specify)
x PSW-10-F Power Supply

$2,635.00

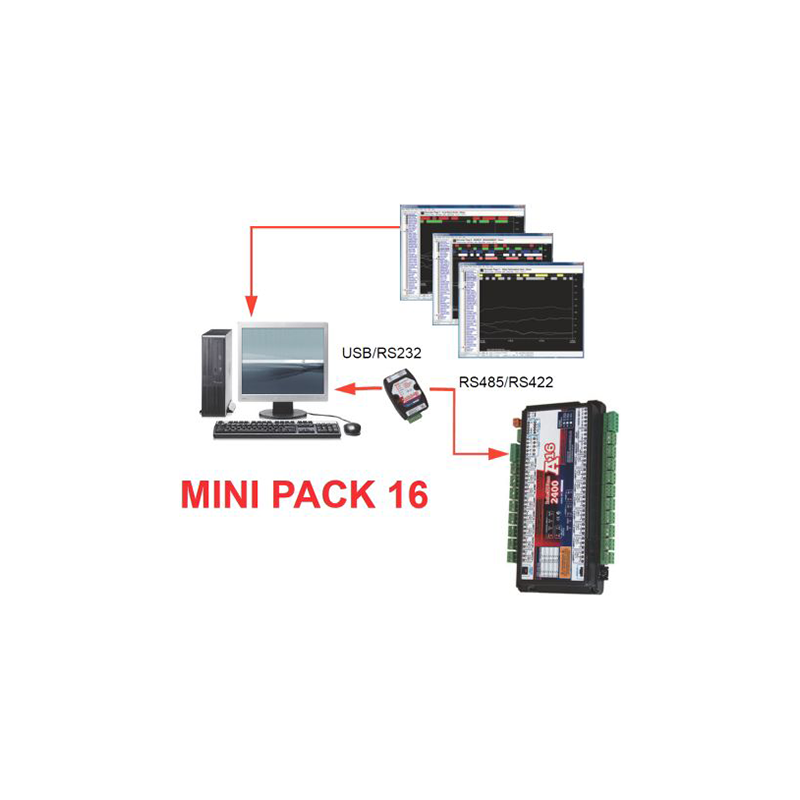

Minipack 16

MINI PACK 16
1 x MicroScan V5 Recorder R16
1 x 2400-IS Comms Converter
1 x 2400-A16-I16 Remote Station

$3,985.00

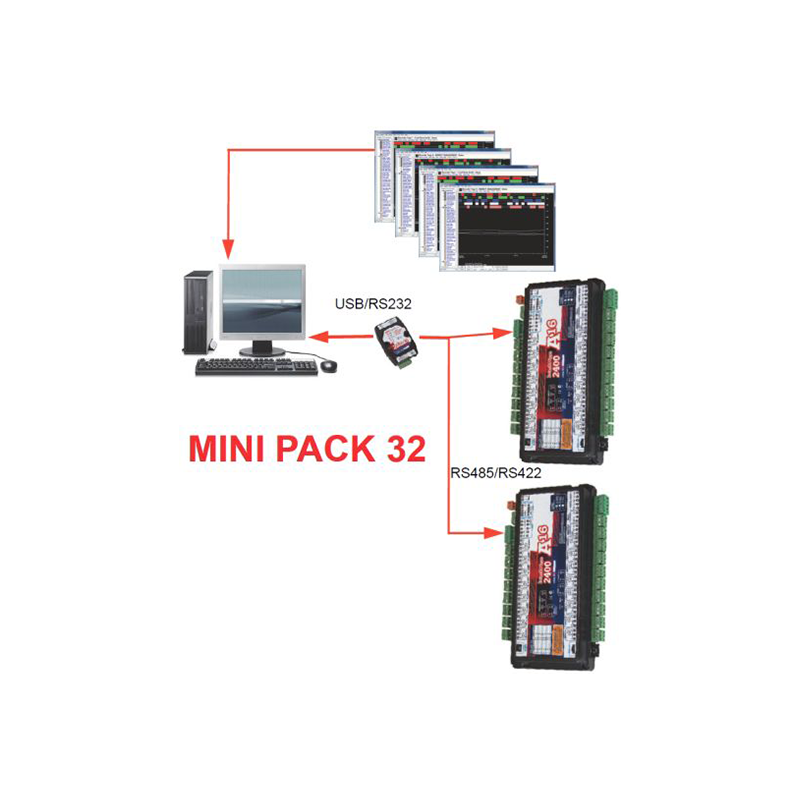

Minipack 32

MINI PACK 32
1 x MicroScan V5 Recorder R32
1 x 2400-IS Comms Converter
2 x 2400-A16-I16 Remote Stations

$5,950.00

Note: The Computer running Windows® is not included in any Mini Pack.

Other options available on request.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
