LPN-LUX – Light Intensity Transmitter

Light intensity (LUX) Sensor and 2 Wire Output Transmitter

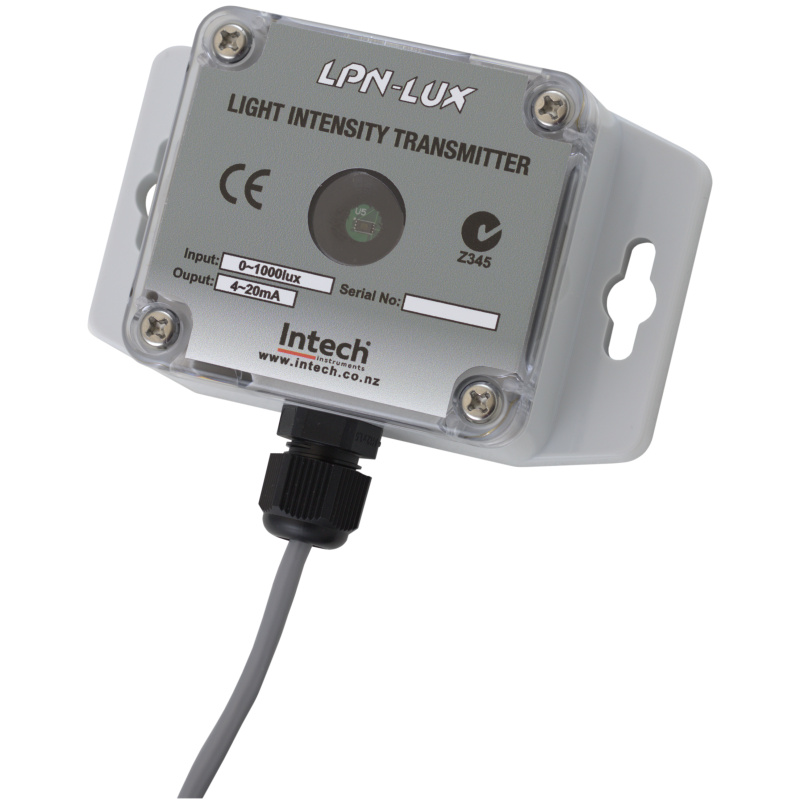

Intech LPN-LUX Light Intensity Transmitter

LPN-LUX Features

  • Various lux ranges available
  • 2 wire 4~20mA output (loop powered)
  • High accuracy
  • IP66 enclosure
  • Easy to install
  • Reverse polarity protection
Brand: INTECH
Usually in stock



Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

Description

The LPN-LUX incorporates an integrated light sensor within an industrial IP66 rated sealed enclosure and is especially designed for high precision linear applications. The sensor has a flat glass window with a built in colour correction filter, giving an approximation to the spectral response in the human eye.

Lux Ranges Available

  • 0~1000lux – Standard Calibration
  • 0~100lux
  • 0~500lux
  • 0~5000lux
  • 0~10000lux
TYPELPN-LUX
Input0~1000lux - Standard Calibration
OutputCurrent2 wire 4~20mA (Loop Powered)
Load Resistance600Ω @ 24Vdc
Power Supply8~33Vdc (Loop Powered)
Temperature Coefficient0.15% per 1°C
Operating Temperature0°C~60°C (Storage Temp. -20°C~80°C)
Operating Humidity5~85% RH Max, Non-Condensing
Analogue/Digital Converter12 Bit
EMC CompliancesEmissions EN 55022-A, Immunity EN 50082-1
Safety CompliancesEN 60950
Cable Length2m
EnclosureTypePolycarbonate
RatingsIP66 rated, RoHS Compliant, UL 94 HB Flammability Rating
DimensionsL=64mm, W=58mm, H=35mm (Length including mounting flanges = 94mm)
  • Intech LPN-LUX Light Intensity Transmitter - Installation Guide 117.71 KB
  • Intech LPN Transmitters - Brochure 225.05 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
LPN-LUX

Standard Calibration: 0~1000lux Nominal

$244.00

Other ranges available on request.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
