Home | Products | Signal Transmitters & Conditioners | 2 Wire Transmitters - Loop Powered | RTD Pt100/Pt1000 | LPI-R

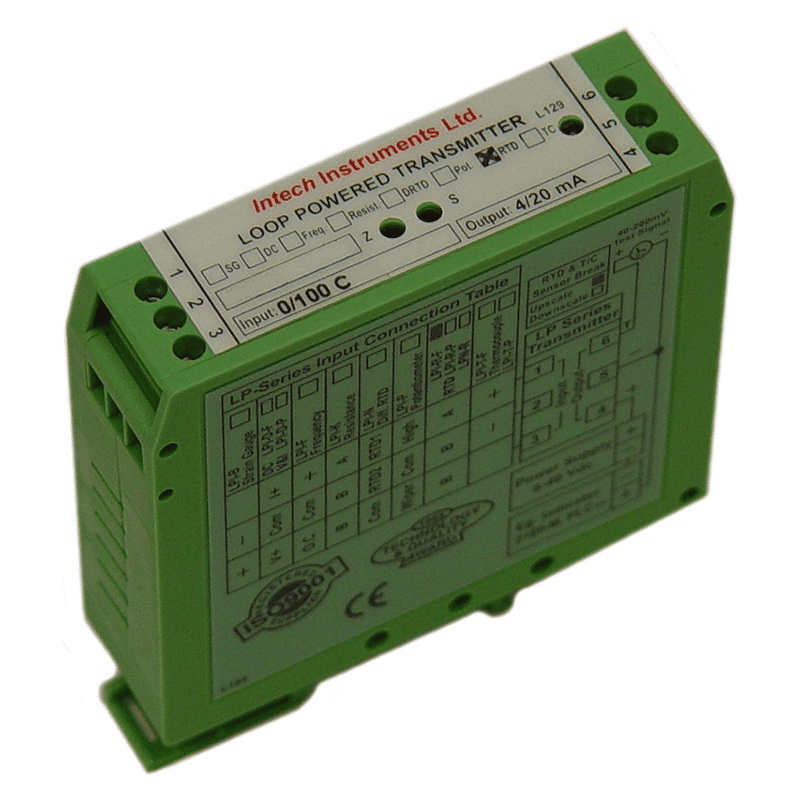

LPI-R – RTD Transmitter

RTD to DC Isolating Transmitter

LPI-R

LPI-R Features

  • RTD Pt100 standard input
  • Isolated input to output 2.0kV
  • Field programmable input ranges (LPI-R-P)
  • High accuracy
  • Linear with temperature
  • 40~200mV output test signal
  • LED indication of loop current
  • Compact DIN rail mount enclosure
  • Available standard or special calibration
  • Reverse polarity protection
Brand: INTECH
Usually in stock
Request a quote
Scroll down for product range
  • Technical Specs
  • Documents
TYPELPI-R
RTD InputPt100 DIN (3 Wire Type) Standard
Sensor Current = 0.8mA Nominal
Lead Wire Resistance = 10Ω/Wire Max
Field Programmable Zero: -200°C~200°C (LPI-R-P Only)
Field Programmable Span: 20°C~400°C (LPI-R-P Only)
Suitable for 2 Wire Connection (Offset Calibration needed)
Other Types of RTD Available: JIS Pt100, Pt250, Pt500, Pt1000, CU10, CU100, Ni100 or specify
Damping: 3sec Selectable with H1 (LPI-R-P Only)
OutputmA: 2 wire 4~20mA (Loop Powered)
mV: Test 40~200mV ±1% @ 4~20mA, Other Test Voltages Available e.g. 1~5V
Note: mV Test Increases Power Supply & Decreases Load Resistance
Power Supply8~33Vdc
Supply Voltage Sensitivity<±0.005%/V FSO
Output Load Resistance800Ω @ 24Vdc (50Ω/V Above 8Vdc)
Maximum Output CurrentLimited to <28mA
Sensor FailUpscale: 23mA Min
Downscale: 3.8mA Max
Accurate to<±0.1% FSO Typical
Linearity & Repeatability<±0.1% FSO Typical
Ambient Drift<±0.02%/C FSO Typical
Noise Immunity125dB CMRR Average (2.0kVac RMS Limit)
EMC CompliancesEmissions EN 55022-A, Immunity EN 50082-1, <1% Effect FSO Typical
Isolation Test Voltages2000Vac/dc Input to Output for 1min
Response Time200msec Typical (10 to 90% 50msec Typical)
Operating Temperature0°C~70°C
Storage Temperature-20°C~80°C
Operating Humidity5~85%RH Max, Non-Condensing
Dimensions and ConstructionL=79, W=22.5, H=85mm Polyamide Thermoplastic Rail Mount Enclosure
  • Intech LPI-R RTD Transmitter - Installation Guide 77.25 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
LPI-R-F

RTD Transmitter, Standard 0~100°C Input, Upscale, Fixed Input

$298.00
LPI-R-F-29-US

RTD Transmitter, 0~50°C Input, Upscale, Fixed Input

$298.00
LPI-R-F-15-US

RTD Transmitter, 0~150°C Input, Upscale, Fixed Input

$298.00
LPI-R-F-16-US

RTD Transmitter, 0~200°C Input, Upscale, Fixed Input

$298.00
LPI-R-P-11-US

RTD Transmitter, 0~100°C Input, Upscale, Programmable Input

$365.00

Other ranges available on request

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech is our own brand of products, for all aftersales and technically support please contact us.
