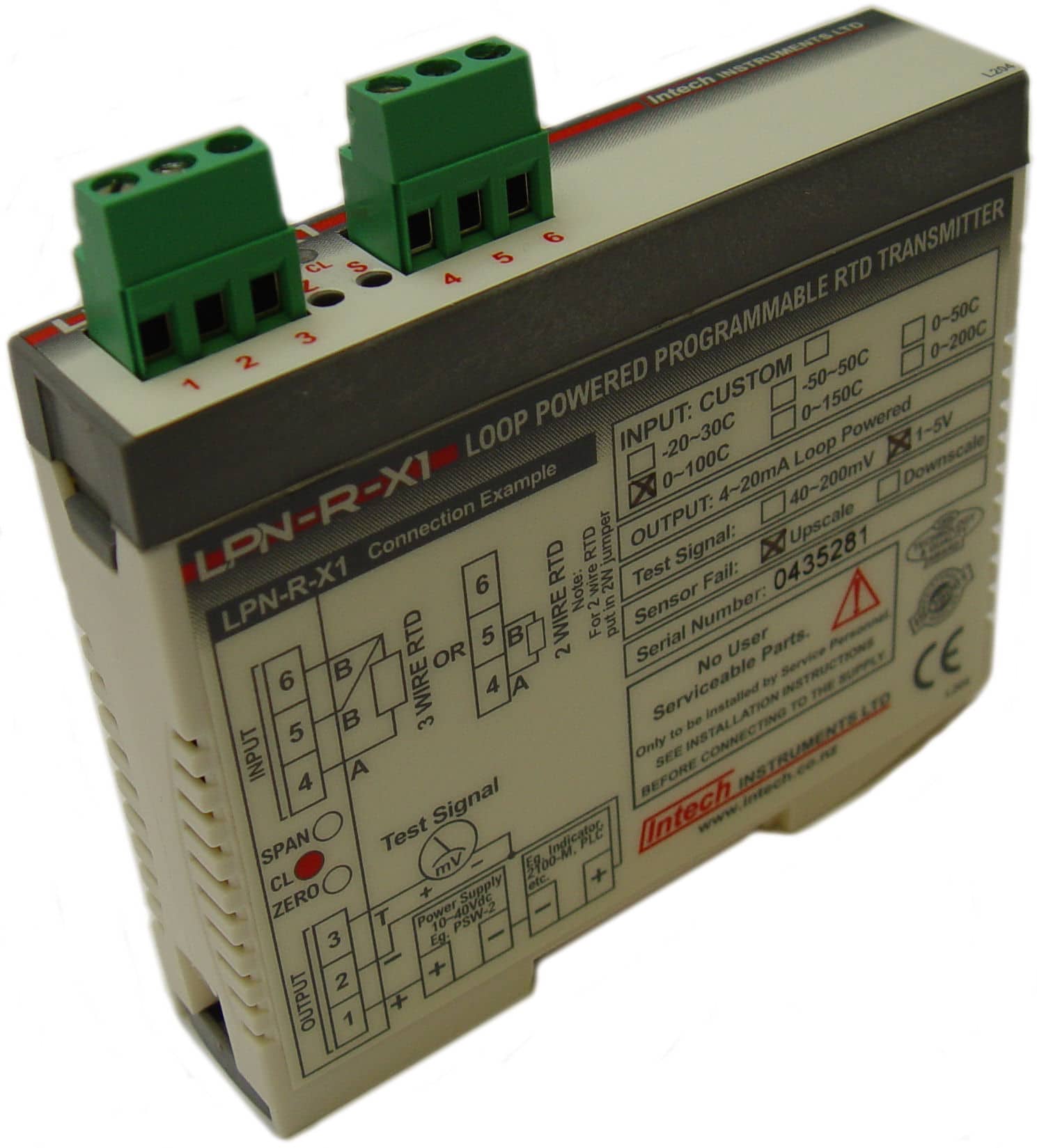

Intech LPN-R RTD Transmitter
Click to enlarge

LPN-R-X1 – RTD Transmitter

Brand:

$182.00 Excl. GST

Total: $182.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

LPN-R Features

  • Field programmable
  • RTD Pt100 standard input
  • High accuracy 0.1%
  • Linear with temperature
  • 40~200mV output test signal
  • LED indication of loop current (CL)
  • Easy to install
  • Compact DIN rail mount enclosure
  • Available standard or special calibration
  • Reverse polarity protection
  • One transmitter per enclosure only

Technical Specs

TYPELPN-R-X1(2)
RTD InputPt100 DIN (3 Wire type), Other RTDs Available. Eg. Pt1000, CU10, or Specify
Sensor Current0.5mA Nominal
Lead Wire Resistance5Ω/Wire max
Zero Range-100°C~100°C
Span Range30°C~600°C
OutputmA2 wire 4~20mA (Loop Powered)
mVTest 40~200mV ±1% ∝ 4~20mA. Other Test Voltages Available. e.g. 1~5V
Note: mV Test Increases Power Supply & Decreases Load Resistance
Power Supply10~33Vdc (Loop Powered)
Supply Voltage Sensitivity<±0.005%/V FSO
Output Load Resistance700Ω @ 24Vdc (50Ω/V above 10Vdc)
Maximum Output CurrentLimited to <26mA Typical
Sensor FailUpscale23mA Min, Typical
Downscale3.8mA Max, Typical
EMC Emissions & Immunity ComplianceEN 55022-A & EN 50082-1
Safety ComplianceEN 60950
Test Voltage Between Two X2 Units1000Vac, 50Hz for 1 min
Response time200msec Typical (From 10 to 90 % 50msec Typical)
Accurate to<±0.1% FSO Typical
Linearity & Repeatability<±0.1% FSO Typical
Ambient Drift<±0.01%/C FSO Typical
RF Immunity<1% Effect FSO Typical
Operating Temperature0°C~70°C
Storage Temperature-20°C~80°C
Operating Ambient Humidity5~85% RH Max, Non-condensing
