Home | Products | Level | Level Switches | Float Level Switches | FF Series

FF Series – Side Mounting Float Switches

For horizontal mounting on tanks or vessels.

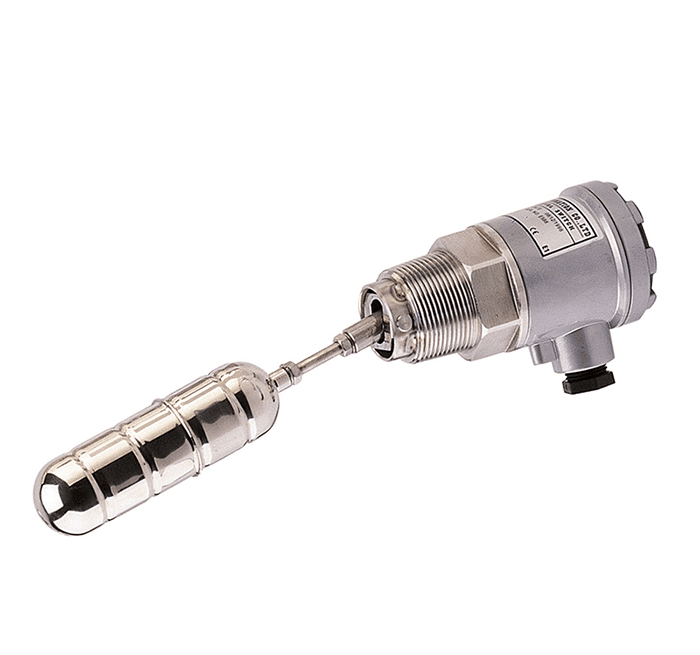

FF20CEQ Float Level Switch

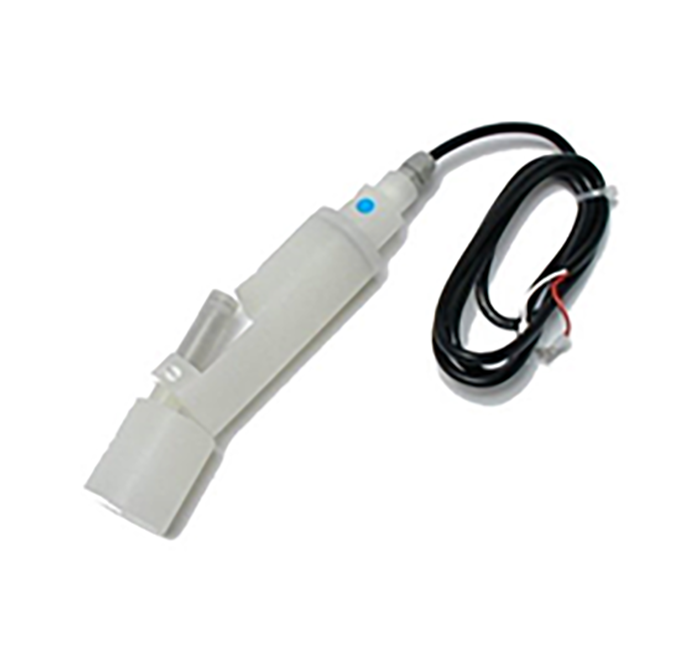

Magnetic Level Switch Finetek FF81EFM

FF Series Features

USE

  • High, low and intermediate float level switch applications for tanks and other vessels
  • Wide range of liquids
  • Side mount on vessel
  • Some top mounting use special float extension shape

INDUSTRY

  • Water/wastewater
  • Chemical
  • Marine use
  • Many others
Brand: FINETEK
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Documents

The side mounted float level sensor (FF series) are manufactured specifically for horizontal mounting on tanks or vessels. They work well as high or low level controls. A change in liquid levels raises or lowers the float up or down. The end of the pivot arm (non float side) contains a permanent magnet that can repel the switch magnet (inside the stationary
‘stem’ of the entire structure). When the float magnet moves close to the switch’s stationary stem, the float magnet repel the switch magnet which either opens or closes the Electrical circuit.

1. Both Micro-Switch types and Reed Switches are available.

2. Mounting flanges are custom-made. (JIS, DIN,ANSI).

3. A wide variety of floats for different solution’s specific gravities (S.G.) are available.

4. Wetted parts material ranges from plastics, stainless steel, anti-corrosive and explosion proof types.

FF Series Specifications
TYPE FF81EFM FF10CEQ FF20CEQ FF30A3Q
Level Switch Type Side Mount Magnetic Side Mount Float Side Mount Float Side Mount Float
Temperature -20~80°C -20~100°C -40~200°C -20°C~100°C
Contact Element Reed Switch Micro Switch Reed Switch Reed Switch
Contact Capacity 1A, 30W 220Vac/200Vdc 5A/250Vac 1A, 60W 220Vac/200Vdc 1A, 50W 240Vac/200Vdc
Electrical Contact SPDT(1C) SPDT(1C) SPDT(1C) SPST(1A)
Mounting M20 bulkhead with nut 1.5” BSPT 1.5” BSPT 1.5” BSPT
Housing - IP65 Aluminium IP65 Aluminium IP65 Aluminium
Float Polypropylene, SG 0.6. 44mmØ cylindrical 304 SS, SG 0.65. 41mmØ cylindrical. 304 SS, SG 0.65. 41mmØ cylindrical. 304 SS, SG 0.65. 41mmØ cylindrical.
  • Side Mounting Float Switches Finetek FF Series - Brochure 1.53 MB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
FF10CEQ

-20~100°C, 5A/250Vac, Microswitch, SPDT(1C)

$695.00
FF20CEQ

-40~200°C, 1A, 60W 220Vac/200Vdc, Reed Switch, SPDT(1C)

$862.00
FF30A3Q

Side Mounting Float Switch, -20~100 deg C, 1A, 50W 240Vac/200Vdc, Reed Switch, SPST(1A)

$276.00
FF81EFM

-20~80°C, 1A, 30W 220Vac/200Vdc, Reed Switch, SPDT(1C), Bulkhead mount

$644.00
All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Finetek products. Please contact the Finetek distributor in your country if you require sales or service support for Finetek products.
