Home | Products | Level | Level Transmitters | Capacitive | NIVOCAP

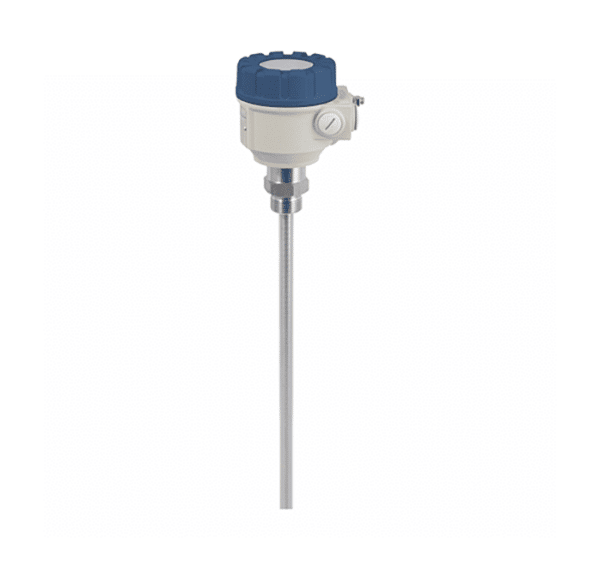

NIVOCAP – Capacitive Level Transmitters

2-wire Compact Capacitance Level Transmitter for conductive and non-conductive liquids with fully plastic coated stainless steel rod probe.

Features:

  • 2-wire compact transmitter
  • High sensitivity
  • Rod or cable probes up to 20 m
  • Plastic housing (Aluminium and Stainless Steel options available)
  • Fully or partly insulated probes
  • Plug-in display module
  • 32-point linearisation
  • Distance, level and volume measurement
  • Explosion-proof models available
Brand: NIVELCO
Usually in stock
Request a quote
Scroll down for product range
  • Product Details
  • Technical Specs
  • Ordering Information
  • Documents
https://www.intech.co.nz/wp-content/uploads/2019/11/nivocap.mp4

NIVOCAP 2-wire capacitive level transmitters provide an ideal solution for level measurement of conductive or non-conductive liquids.

The probe of the instrument and the reference probe (which can be either the metal wall of the tank or installed separately) operate as opposing plates of a capacitor.

Between the plates of this capacitor the air is replaced by a medium with greater dielectric constant than the air during filling the tank, therefore the capacitance is changing directly proportional to the level. The incorporated electronic circuitry measures the capacitance difference and converts it to an output signal proportional to level.

TYPECT-300 Series
Measurement range (Ln)0.2–3m
Capacitance range0 pF – 5 nF
Min. capacitance changeMax. (Iout) SPAN: 10 pF or 10% FS
Saturation capacitance of the insulated probe~600 pF/m
Relative dielectric constantεr min. 1.5
Process connection1"BSP
Wetted Parts1.4571 stainless steel
ProbeFully or partially coated 1.4301 stainless steel
Housing materialPlastic (PBT), paint coated aluminium or stainless steel
Medium temperature-30°C~+130°C
Ambient temperature-25°C … +70 °C
Medium pressureMax. 4 MPa (40 bar)
Power supply / consumption12 – 36 V DC / max. 800 mW, overvoltage protection against transients
Output signalsAnalogue: 4 – 20 mA (3.9 – 20.5 mA) Rmax = Ut-11.4 V/0.02A
Error indication: 3.8 mA or 22 mA
Digital communication: 4–20mA + HART®
Display module: SAP-202, 6 digit LCD, dimensions, bargraph
Current loop test: 10 mV / 1 mA via resistor in series
Damping time0, 3, 6 – 300 sec selectable
Linearity error±0.3% FS
Temperature error±0.02% /°C FS
Electrical connection2x M20x1.5 cable glands + internal thread for 2x ½" NPT cable protective pipe, cable outer diameter: Ø7 – Ø13 mm, wire cross section: max. 1.5 mm2
Electrical protectionClass III
Ingress protectionIP67
Mass~2.5 kg with 0.5 m probe

  • Capacitive Level Transmitter Nivelco Nivocap - Brochure 2.91 MB
  • Capacitive Level Transmitter Nivelco Nivocap -Installation Manual 718.38 KB

Product Range

Product Range:
CodeSpecificationsPriceQuantity
CTR-302-2

Insulated rod, 0.2m, 1″ BSP / Fully PFA insulated SS, Plastic housing.

$1,062.00
CTR-305-2

Insulated rod, 0.5m, 1″ BSP / Fully PFA insulated SS, Plastic housing.

$1,120.00
CTR-310-2

Insulated rod, 1.0m, 1″ BSP / Fully PFA insulated SS, Plastic housing.

$1,200.00
CTP-302-2

Partially rod, 0.2m, 1″ BSP / Fully PFA insulated SS, Plastic housing.

$1,062.00
SAP-202

Plug-in display module

$168.00

Other models available – please contact us.

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Intech Instruments Ltd are the New Zealand distributor for Nivelco products. Please contact the Nivelco distributor in your country if you require sales or service support for Nivelco products.
