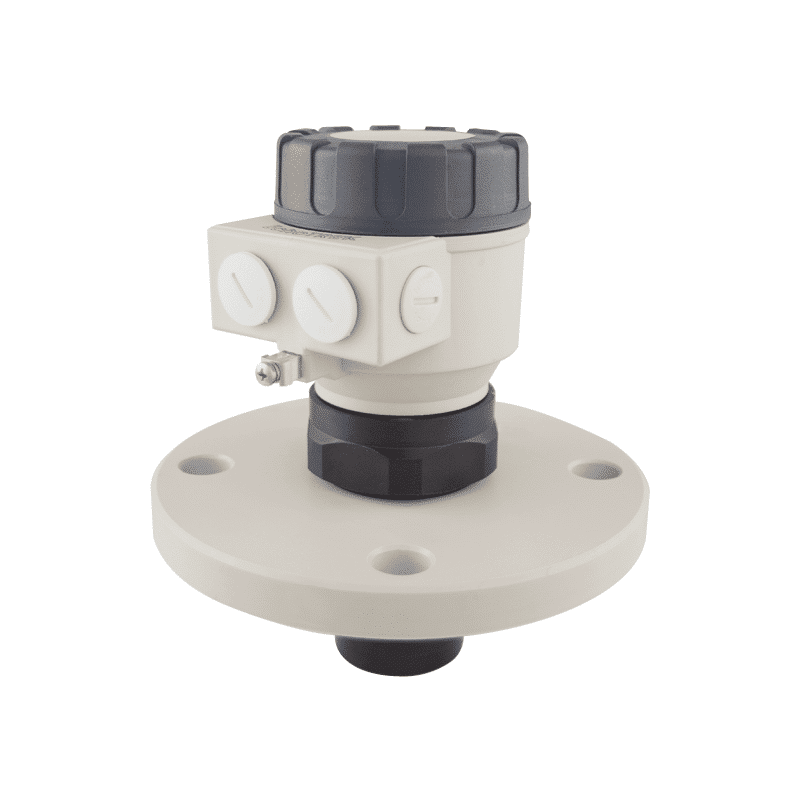

Nivelco_EchoTREK for liquids SEV-390-8 Ex + NAW-104

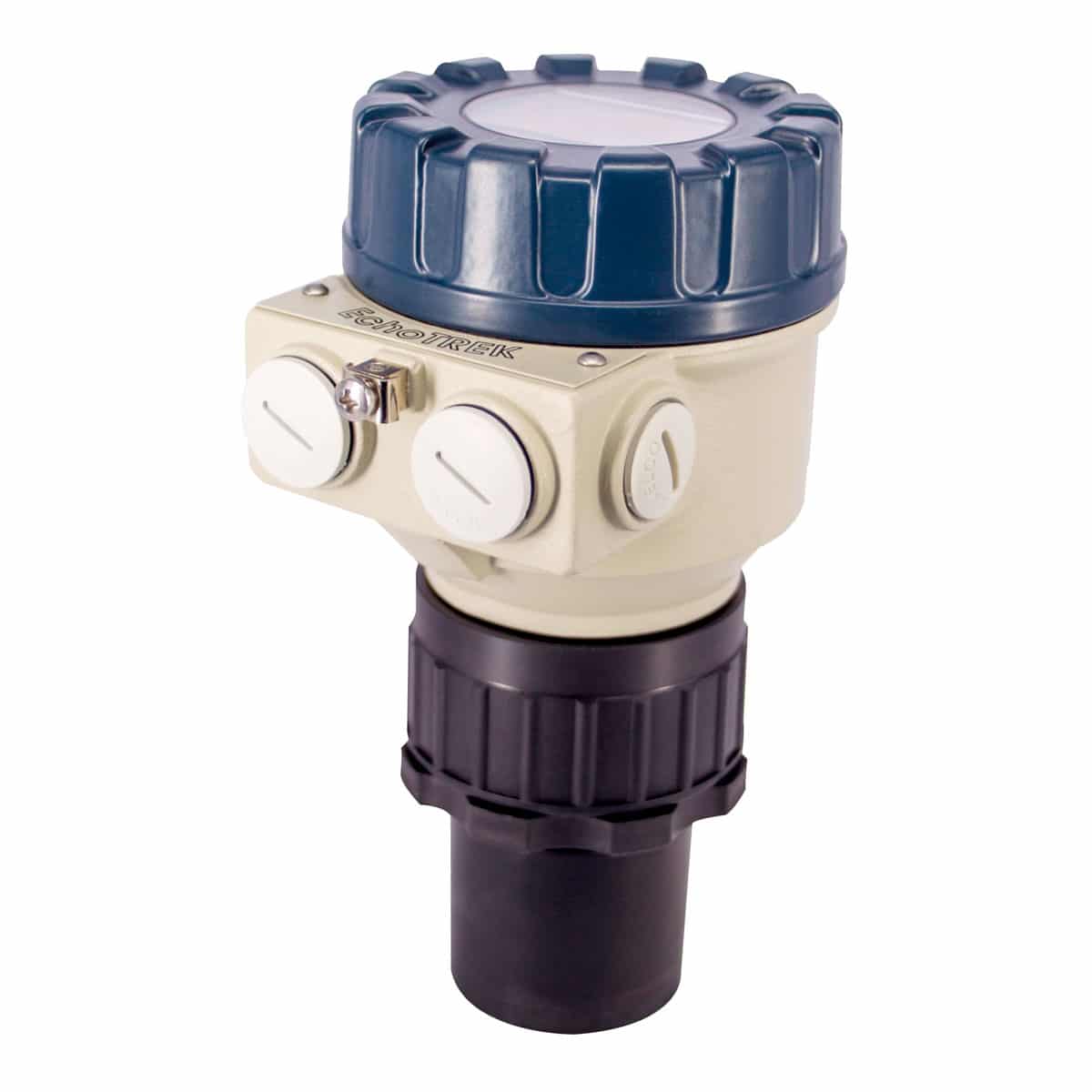

EchoTREK – Ultrasonic Compact Level Transmitter for Liquids

Name: EchoTREK
Brand: Nivelco
SKU: 8541
Availability: InStock

Brand: Nivelco

$0.00 Excl. GST

Type*

2-Wire Transmitter | SEP-3
4-Wire Transmitter | STP-4

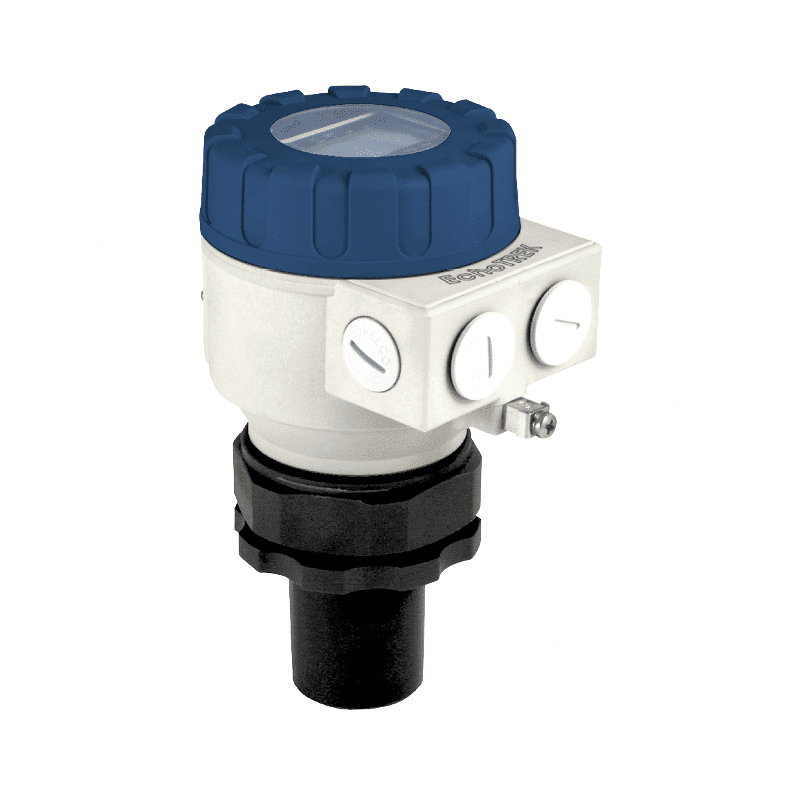

EchoTREK compact ultrasonic level transmitter for liquids with plastic housing and BSP thread

Range / Frequency*

0.35~8m / 60 kHz | 70
0.25~6m / 80 kHz | 80
0.2~4m / 80 kHz | 90

Supply Voltage

24Vac/dc | 2

Output: 4~20mA + 2 x relay (DPDT)

Supply Voltage

85~255Vac | 1
24Vac/dc | 2

Output: 4~20mA + 2 x relay (DPDT)

Output *

4~20mA | 2

Total: $0.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Add to wishlist

Request a quote

Send Enquiry

Product Details

The EchoTREK high performance level transmitters are based on NIVELCO’s more than 35 years of experience with ultrasonic level measurement.

Whether for liquid level measurement in sumps or tanks, for tank contents measurement, or open channel flow measurement, EchoTREK transmitters provide the answer. Installed on the tank roof, or above the liquid surface to be measured, the transmitters give analogue output proportional to liquid level or transmit HART® digital data.

The EchoTREK is an intelligent compact ultrasonic level transmitter with 4 – 20 mA output offering HART® protocol as option. Local reading is ensured by a plug-in display which can be removed if displaying is not needed. Four keys provide for programming, both display and keys are located under a removable cover. The unit is tank-top mountable only.

The level transmitters can be used in multi-drop systems connected to a PC with the help of the SAT-304 HART®-USB modem or similar. EchoTREK are available with measurement ranges up to 25 m providing wide application possibilities. The ultrasonic level transmitters are using NIVELCO’s established SenSonic range transducers with a full beam angle of 5 to 7 degrees connected to the intelligent electronics featuring the QUEST+ advanced signal processing algorithm.

EchoTREK Features

2- or 4-wire integrated transmitter
Non-contact level metering
Narrow 5° beam angle
Excellent signal processing
Temperature compensated
Secondary lightning protection
32-point linearisation
PP, PVDF, PTFE housing and transducers
Plug-in display module
Plastic, aluminium or stainless steel housing
Explosion-proof models
Level and volume measurement and display
Open channel flow measurement
Fail-safe indication
For challenging applications such as vapour and fume stirrer

Applications:

Level measurement of liquids and slurries
Agriculture
Construction materials
Chemical industry
Food and beverage
Oil industry
Paper mill
Water / wastewater industry

Technical Specs


EchoTREK Specifications
Type	EchoTREK SE/SG-300	EchoTREK ST/SB-400
System	2-wire	4-wire
Accuracy	± (0.2 % of measured distance +0.05 % of range)
Resolution	Depending on the measured distance: less than 2 m (6.5 ft): 1 mm (0.04 in), 2 – 5 m (6.5 – 16.5 ft): 2 mm (0.075 in), 5 – 10 m (16.5 – 33 ft): 5 mm (0.2 in), more than 10 m (33ft): 10 mm (0.4 in)


Power Supply	12~36 V DC / 48 ~720 mW	85~255 V AC / 2 VA 20~28 V AC/DC / 3 VA/3 W
Analogue Output	4~20mA
Relay Output	SPDT, 30 V DC, 1A DC	#1 SPDT, 250 V AC, 3 A AC1 #2 SPDT, 30 V DC, 1 A DC
Display	SAP-200: 6-digit plug-in LCD display
Digital Communication	4-20 mA + HART
Ambient temperature	with plastic housing: -25 °C … +70 °C with metal housing: -30 °C …+70 °C with display: -25 °C … +70 °C


Pressure (absolute)	0.05 ~ 0.3 MPa (0.5 ~ 3 bar [7.5 ~ 43.5 psig]), with stainless steel transducer: 0.09 ~ 0.11 MPa (0.9 ~1.1 bar g (13 ~ 16 psig).
Electrical protection	In case of DC power supply: Class III
		In case of AC power supply:
		metal housing: Class I	plastic housing: Class II
Housing	Paint coated aluminium, plastic (PBT)
Sealing	In case of PP transducer: EPDM; all the other transducers: FPM (Viton)
Ingress Protection	Transducer: IP68, Housing: IP67
Electrical Connection	2x M20x1.5 cable glands + internal thread for 2x ½" NPT cable protective pipe, cable outer diameter: Ø6 – 12 mm (Ø0.25 – 0.45 inch), wire cross section: maximum 1.5 mm² (AWG15)

Mass	1.3 – 2.3 kg (2.85 – 5 lb)
