Fuel oil and chemical applications. Silicone potted, shock & vibration resistant.
1/8″ NPT Mounting

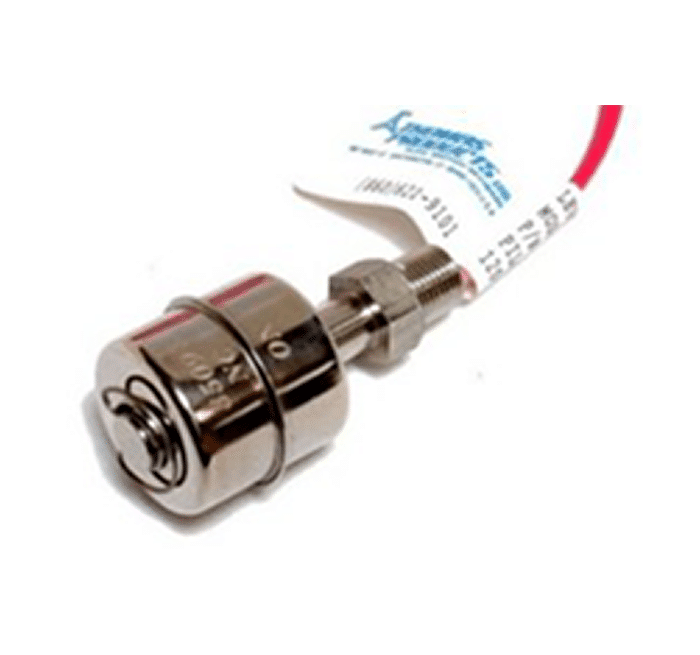

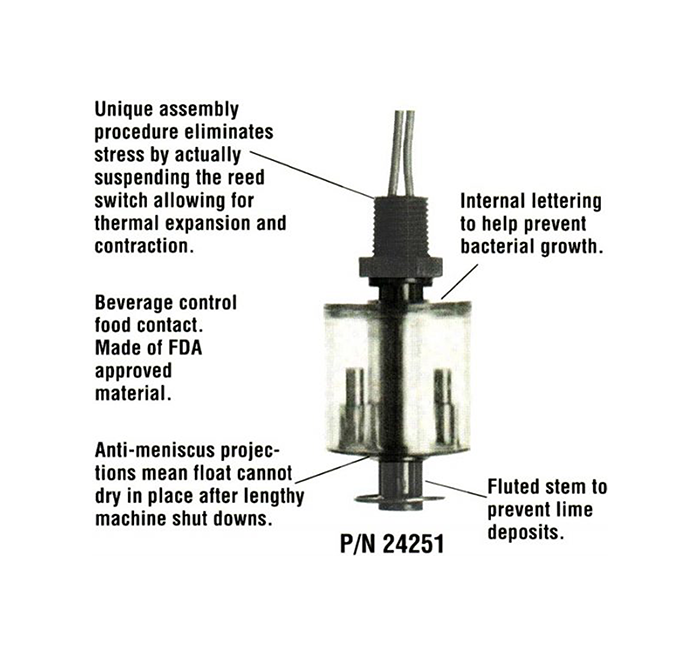

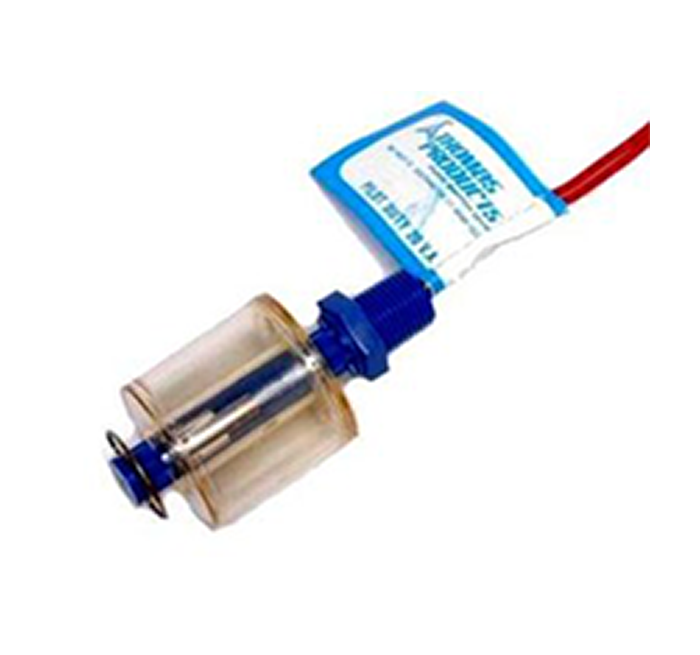

4200 Series – Top/Bottom Mounted Level Switches
$126.00 Excl. GST
All prices are in NZ$, and GST exclusive and are subject to change without notice.
Technical Specs
| 4200 Series Specifications | ||
| Stem Material | 316SS (Model 41003)/ Polysulfone (Model 24251) | |
| Float Material | 316SS (Model 41003)/ Polysulfone (Model 24251) | |

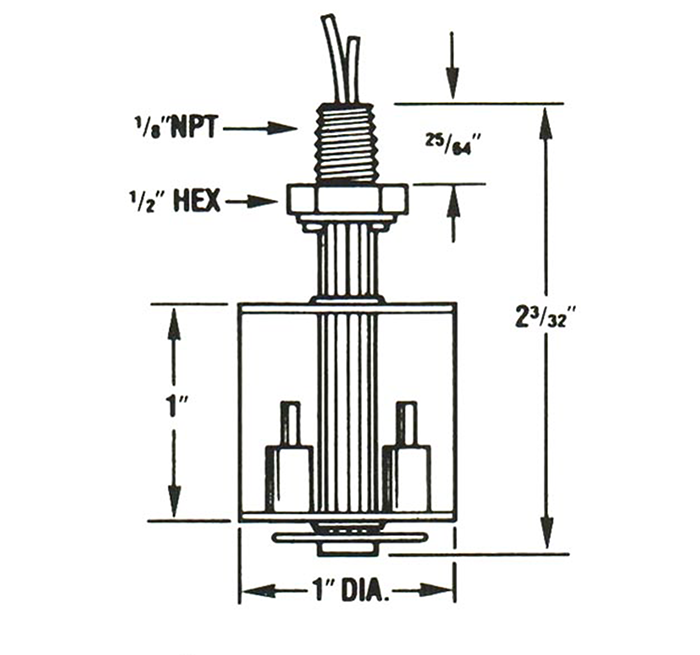

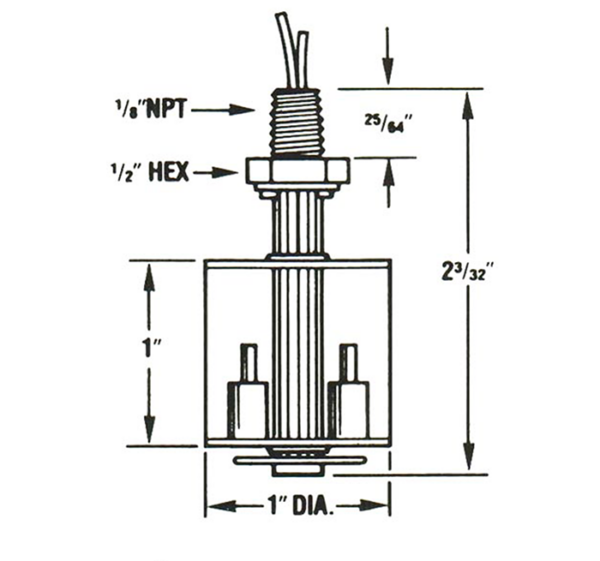

| Mounting | 1/8"NPT Top/Bottom | |
| Reed Switch | 20/100VA SPST | |
| Operating Temperature | -40~107°C (Model 24251) / -40~150°C (Model 41003) | |
| Operating Pressure | 5bar max (Model 24251) / 27bar max (Model 41003) | |
| Specific Gravity | 0.65 (Model 24251) / 0.7 (Model 41003) |
