EchoTREK Ultrasonic Level Transmitter
EchoTREK $0.00 Excl. GST
TREK SPA-590-4

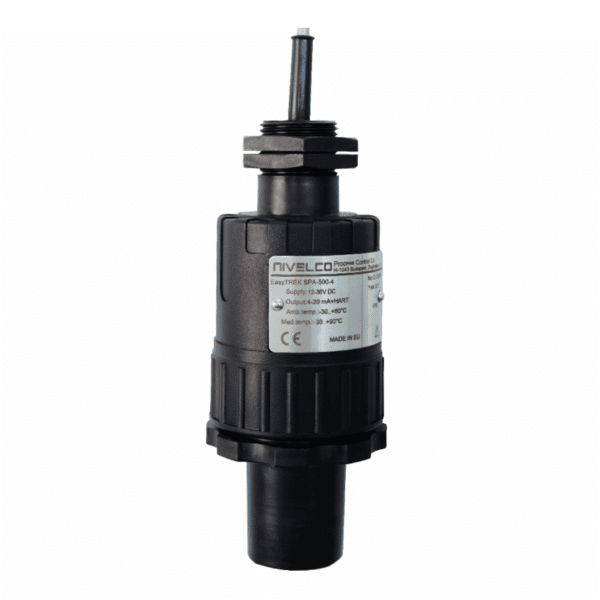

Ultrasonic Level Transmitter Nivelco Easytrek-SPA-590-4-2
Click to enlarge
TREK SPA-590-4

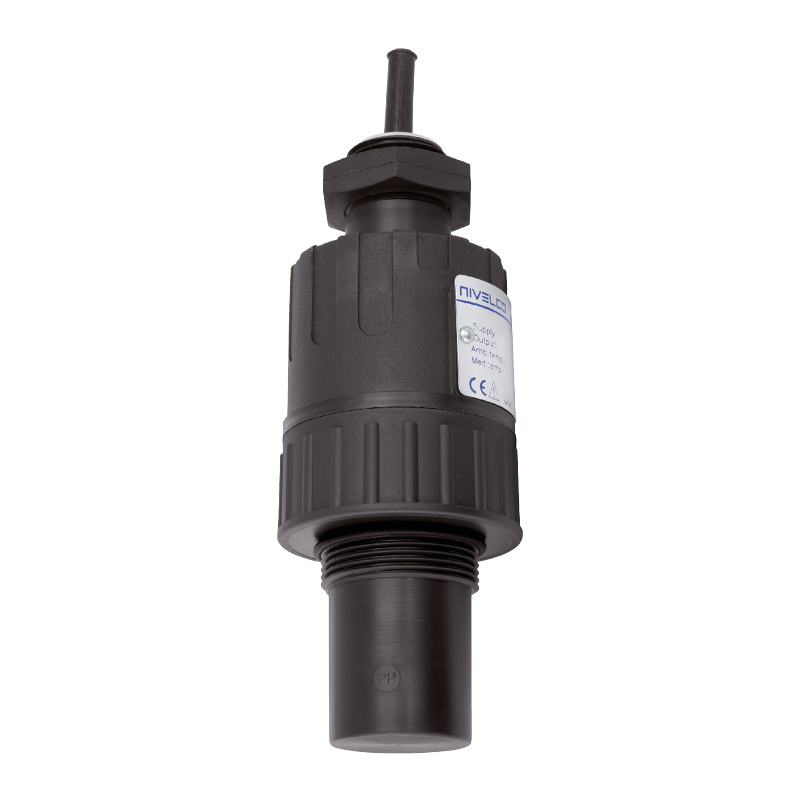

Ultrasonic Level Transmitter Nivelco Easytrek-SPA-590-4-2

EasyTREK SP-500 – Ultrasonic Integrated Level Transmitter for Liquids

Brand:

$1,460.00 Excl. GST

Optional accessory +$545.00

Total: $1,460.00

All prices are in NZ$, and GST exclusive and are subject to change without notice.

Product Details

Description

The newest generation EasyTREK SP-500 series level transmitters are based on NIVELCO’s 35 years of experience with ultrasonic level measurement. The IP68 rated units have their transducer and processing electronics incorporated in one single housing. The new EasyTREK transmitters utilize HART® 7 communication so they can be used in multidrop systems connected to MultiCONT process controller/display, or to a PC with the help of the UNICOMM HART®-USB modem or similar.

The transmitters can be remotely programmed also with Handheld Field Communicator, and can be connected wirelessly to a PC with the SAT-504 Bluetooth® HART® modem. The members of the new EasyTREK SP-500 series can be recognised from the more compact size, the increased maximum measuring range and the decreased minimum measuring range.

EasyTREK SP-500 Features:

  • 2-wire integrated transmitter
  • Non-contact level measurement
  • Can be powered from 12 V battery
  • Max. 18m measuring range
  • Narrow (5°) beam angle
  • Temperature compensated
  • HART© 7
  • Handheld compatibility
  • IP68 protection

Technical Specs

Ordering Information

Documents
